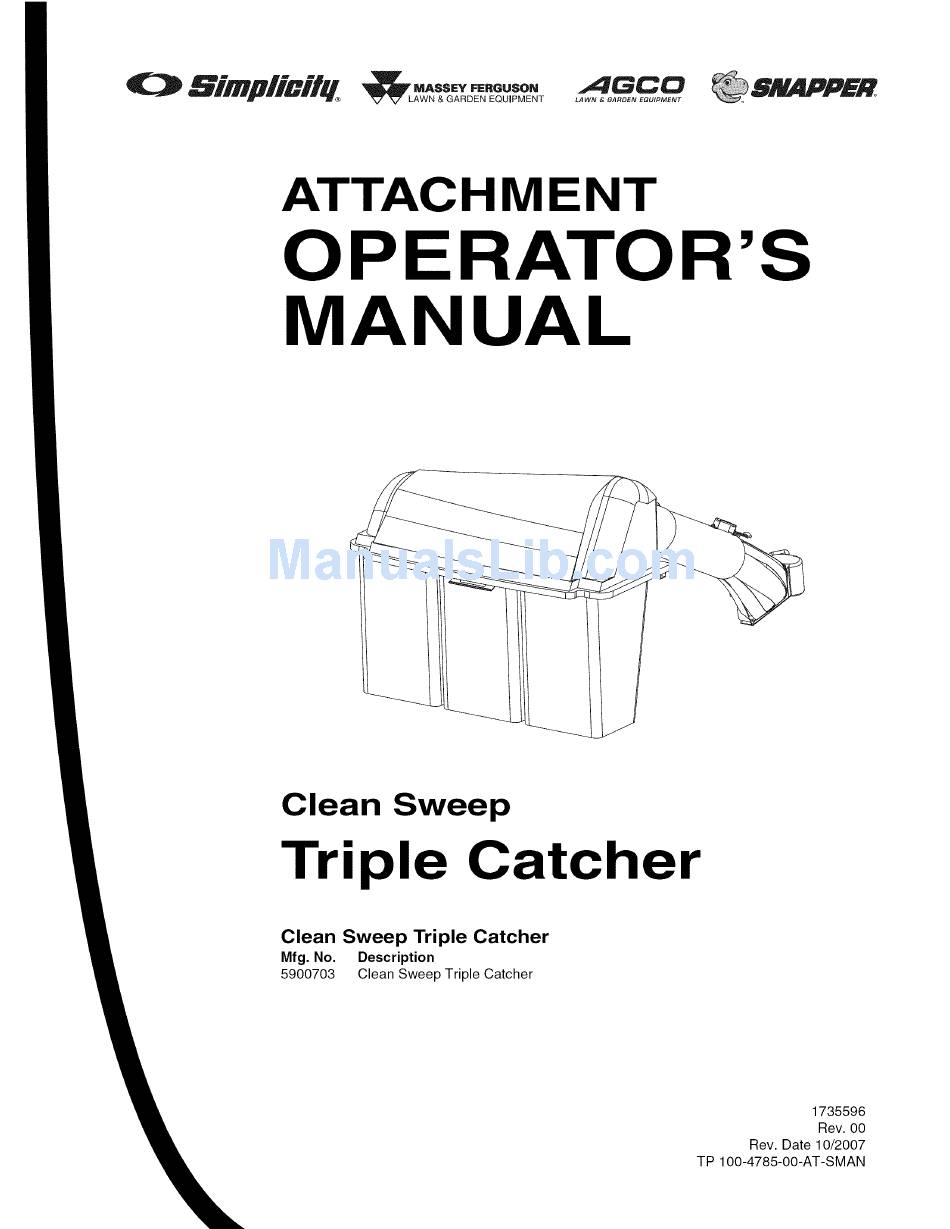

  • Page 1 AGCO LAWN & GARDEN EQUIPMENT ATTACH M E NT OPERATOR'S MANUAL Clean Sweep Triple Catcher Clean Sweep Triple Catcher Mfg. No. Description 5900703 Clean Sweep Triple Catcher 1735596 Rev. 00 Rev. Date 10/2007 TP 100-4785-00-AT-SMAN...

  • Page 2: Table Of Contents

    Table of Contents Safety Rules & Information Cover and Bag Installation General Warnings ..........Install Cover Assembly ........Safety Decals ..........Install Collector Bags ........Storing the Grass Catcher ....... Tube Installation Lower Tube Installation ........General Operating Information Before Operation ..........

  • Page 3: Safety Rules & Information

    SafetyRules andInformation of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The ead these safety rules and follow them closely. Failure to obey these rules could result in loss of control triangle _I_ in text signifies important cautions or warnings which must be followed.

  • Page 4: Storing The Grass Catcher

    General Operating I nstructions Before Operation Clear the lawn of all sticks, stones, wire and other debris which may be caught or thrown by the mower blades. Check grass condition. If wet, wait until later in the day. If grass is wet, the grass catcher is likely to become plugged.

  • Page 5: Tube Component Assembly

    Tube Component Assembly BAFFLE INSTALLATION 44" Mower Deck 50" Mower Deck 1. Determine which baffle to use (See Chart). RH side RH side 2. Lift side discharge chute (H, Figure 1). "A" 26-1/4" long 29-3/4" long 3. Insert baffle (F) through discharge opening and posi- LH side LH side tion baffle into place.

  • Page 6: Component Installation

    Component Installation Figure 2. Install Mounting Plate A. Mounting Plate Figure 3. Lower Chute to Boot Installation B. Locknuts, 5/16-18 A. Latch Pin C. Carriage Bolts, 5/16-18 x 518 B. Carriage Bolt, 1/4-20 x 518 C. Locknut, 1/4-20 Component Installation D.

  • Page 7: Bagandcoversupport I Nstallation

    BagandCoverSupport I nstallation INSTALL BAG AND COVER SUPPORT 1. Install the bag and cover support (B, Figure 5) to upright support (A) using the capscrews (C) and the Iocknuts (D). Figure 5. Install Bag and Cover Support A. Upright Support B.

  • Page 8: Coverandbaginstallation

    CoverandBaginstallation INSTALL COLLECTOR BAGS INSTALLCOVER ASSEMBLY 1. Attach cover assembly (B, Figure 6) to bag support 1. Raise the cover (A, Figure 7). bracket (A) using hinge pivots (E). Secure cover Note: It may be necessary to fold seat forward to allow using cover hinge pins (C) and hair pins (D).

  • Page 9: Tube Installation

    Tube installation LOWER TUBE INSTALLATION 1. Lift discharge deflector up (D, Figure 8). 2. Insert lower chute rod (A) into mounting plate (B). 3. Pull rubber strap (C) and secure by placing hole closest to knob in strap completely over Iocknut (E). Figure 9.

  • Page 10: Collectorinstallation Andremoval

    CollectorInstallation andRemoval A. Hitch Support Assembly J. Deflector B. Cover K. Nut & Capscrew C. Pins L. Mounting Plate D. Hair Pins M. Lower Chute Rod E. Bag N. Lower Chute F. Grass Bag Hanger O. Pin G. U Tube P.

  • Page 11: Carrierinstallation

    Carrierinstallation FRONT WEIGHT CARRIER INSTALLATION 1. Install carrier (F, Fgure 12) as shown securing with capscrews (B), and Iocknuts (C). 2. Secure required weights using rod (D) and safety clip (E). Figure 12. Front Weight Carrier Installation A. Holes D. Rod B.

  • Page 12: Hitchplateandbackplateinstallation

    HitchPlateandBackPlateinstallation. FLAT STYLE BUMBER TUBE STYLE BUMBER 1. Remove and discard hardware holding heat shield 1. Center and secure hitch plate (A, Figure 14) to the (B, Figure 13) to upper and lower bumper (E). bumper (B) with u-bolts (C) and Iocknuts (D). 2.

  • Page 13: Grasscatcherremoval A Ndattachment

    GrassCatcherRemoval a ndAttachment REMOVING THE GRASS CATCHER Note: Back plate (A, Figure 18) will fall when rod (D) is removed. 1. Remove the hair pin clips (B, Figure 16) and hinge 3. Remove the hair pin (B, Figure 18) and rod (D) pins (D) and remove the cover (A).

  • Page 14: Attaching The Grass Catcher

    GrassCatcherRemoval a ndAttachment ATTACHING THE GRASS CATCHER 1. Set the back plate and support (A, Figure 19) onto the pins of the hitch plate (C). Secure with rod (D) and hair pin (B). 2. Hook the bags on the back plate (Figure 7). 3.
  • Page 15 Port Washington, Wl 53074-0997 www.AGCOLawn.com www.SimplicityMfg.com MASSEY FERGUSON LAWN & GARDEN EQUIPMENT Simplicity Mfg. Inc. - Snapper Products Simplicity Mfg. Inc.500 N Spring 535 Macon Street Street / PO Box 997 McDonough, GA 30253 Port Washington, Wl 53074-0997 www.Snapper.com www.MasseyLawn.com Briggs &...
