Component Installation
/I \\

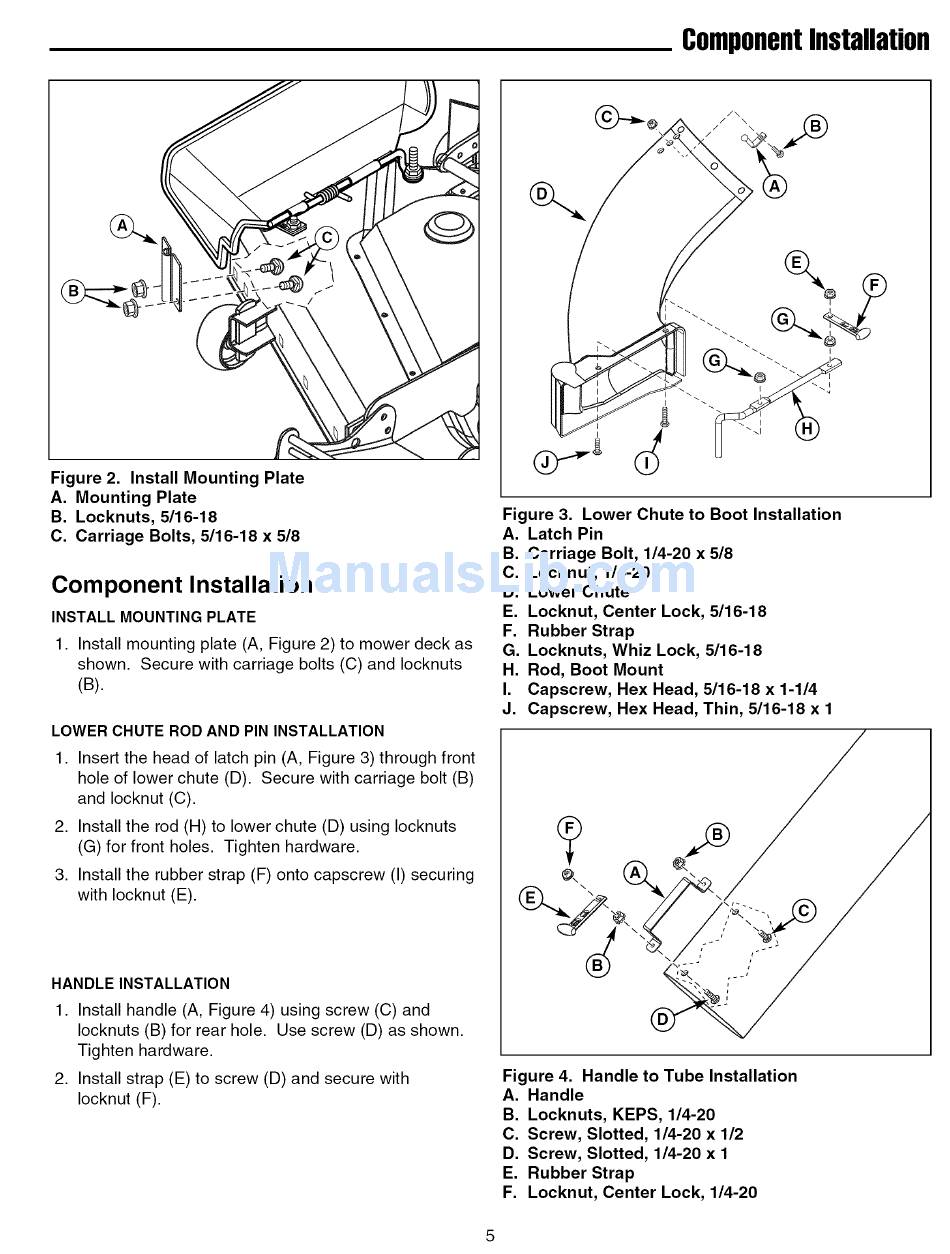

Figure 2. Install Mounting Plate
A. Mounting Plate
B. Locknuts, 5/16-18
C. Carriage Bolts, 5/16-18 x 518
Component Installation
INSTALL MOUNTING PLATE
1. Install mounting plate (A, Figure 2) to mower deck as
shown. Secure with carriage bolts (C) and Iocknuts
(B).
LOWER CHUTE ROD AND PIN INSTALLATION
1. Insert the head of latch pin (A, Figure 3) through front
hole of lower chute (D). Secure with carriage bolt (B)
and Iocknut (C).
2. Install the rod (H) to lower chute (D) using Iocknuts
(G) for front holes. Tighten hardware.
3. Install the rubber strap (F) onto capscrew (I) securing
with Iocknut (E).
HANDLE INSTALLATION
1. Install handle (A, Figure 4) using screw (C) and
Iocknuts (B) for rear hole. Use screw (D) as shown.
Tighten hardware.
2. Install strap (E) to screw (D) and secure with
Iocknut (F).
Figure 3. Lower Chute to Boot Installation
A. Latch Pin
B. Carriage Bolt, 1/4-20 x 518
C. Locknut, 1/4-20
D. Lower Chute
E. Locknut, Center Lock, 5/16-18
F. Rubber Strap
G. Locknuts, Whiz Lock, 5/16-18
H. Rod, Boot Mount
I. Capscrew, Hex Head, 5/16-18 x 1-1/4
J. Capscrew, Hex Head, Thin, 5/16-18 x 1
Figure 4. Handle to Tube Installation
A. Handle
B. Locknuts, KEPS, 1/4-20
C. Screw, Slotted, 1/4-20 x 112
D. Screw, Slotted, 1/4-20 x 1
E. Rubber Strap
F. Locknut, Center Lock, 1/4-20
5
