CoverandBaginstallation
INSTALLCOVER ASSEMBLY
1. Attach cover assembly (B, Figure 6) to bag support
bracket (A) using hinge pivots (E). Secure cover
using cover hinge pins (C) and hair pins (D).
INSTALL COLLECTOR BAGS
1. Raise the cover (A, Figure 7).
Note: It may be necessary to fold seat forward to allow
cover to stay in the raised position.
2. Attach collector bags (B) using grass bag hanger (C)
to bag hanger post (D).

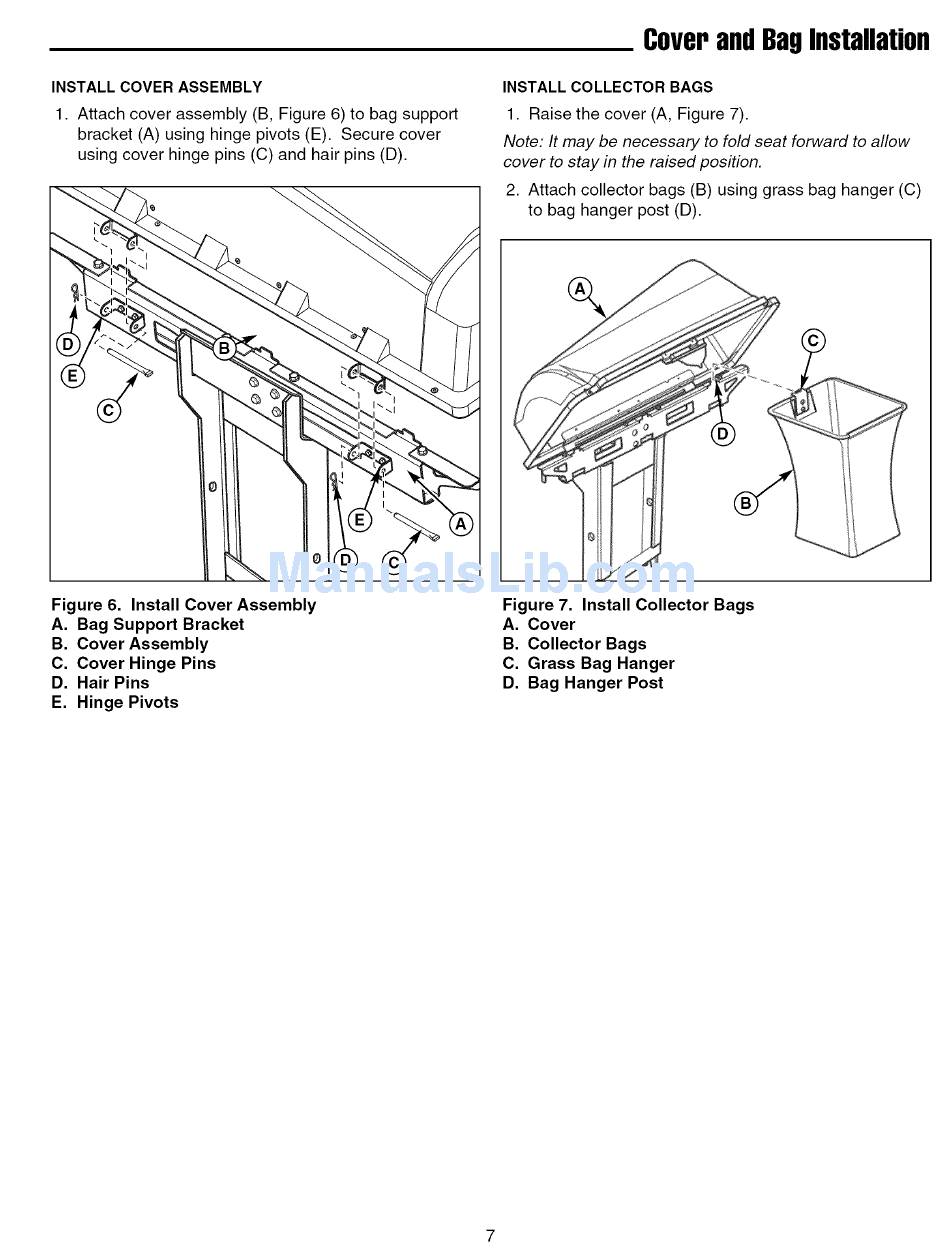

Figure 6. Install Cover Assembly
A. Bag Support Bracket
B. Cover Assembly
C. Cover Hinge Pins
D. Hair Pins
E. Hinge Pivots
Figure 7. Install Collector Bags
A. Cover
B. Collector Bags
C. Grass Bag Hanger
D. Bag Hanger Post
