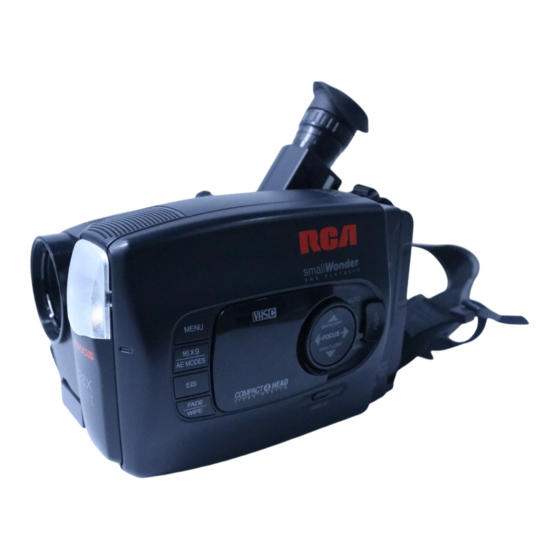

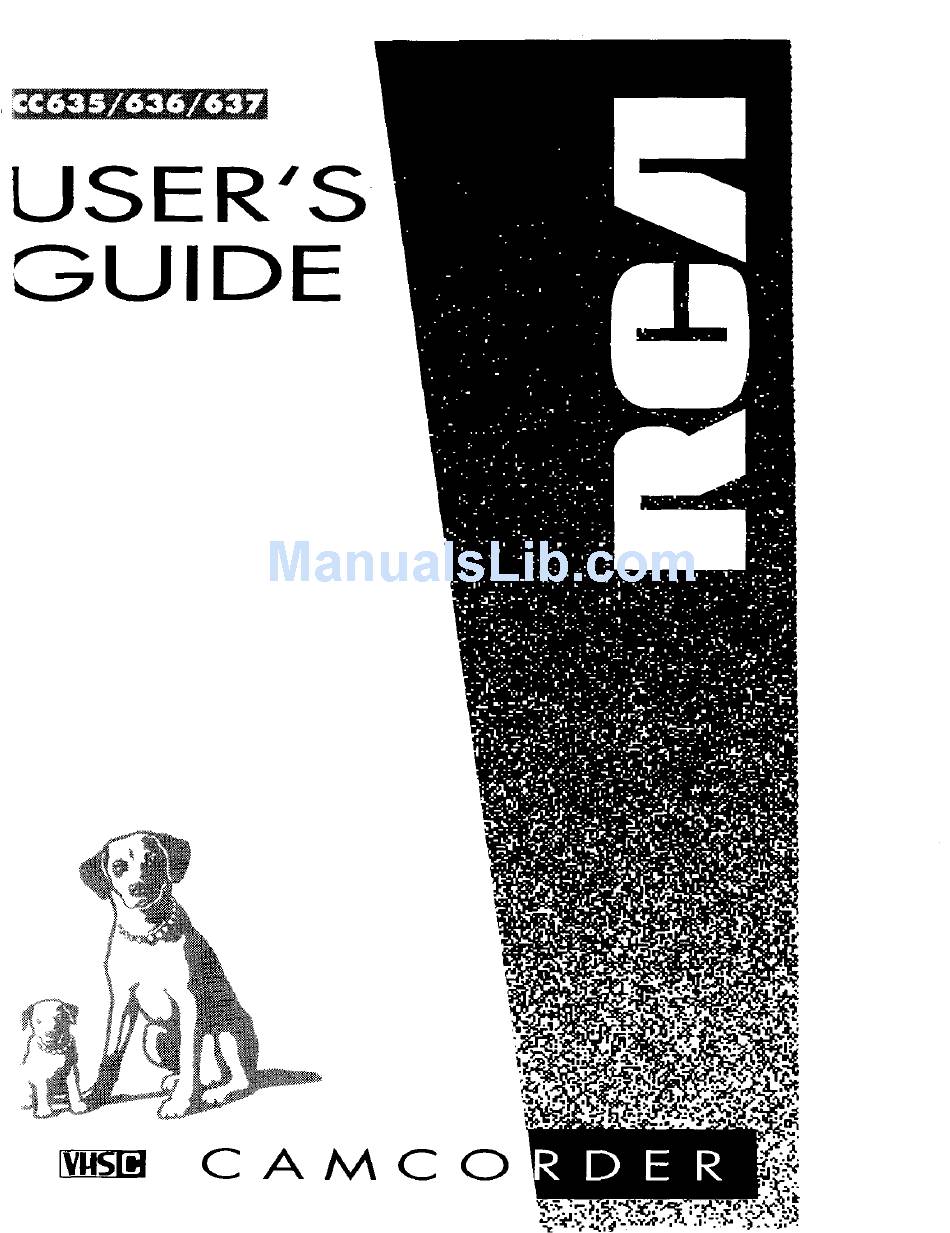

  • Page 1 USER'S GUIDE CAMCO...
  • Page 2 Important Safety Information Be sure to read all the safety information before you begin to use this product. WARNING: To reduce the risk of fire or shock hazard, do not expose camcorder or AC adapter/charger to rain or moisture. This symbol indicates "dangerous voltage"...

  • Page 3: Table Of Contents

    We want to make sure you enjoy your new camcorder. If you have any questions, call: Camcorder Exchange Warranty ..800-283-6503 (pages 100-101) Customer Service ......... 800-336-1900 (page 99) Accessories ..........800-338-0376 (pages 84-89) Remote Controls Safety Information ......• Model CC637 Only Product Registration ......
  • Page 4 Playback Recording (continued) Mode Select Dial • Using the Cassette Adapter ..70-71 • Full AUTO Mode ......36 • Viewfinder Playback ...... 72 • Exposure Control ......• Playback Features • Focusing (Auto and Manual) ..38-39 • Visual Searching ......•...

  • Page 5: Assistance

    This section describesonly the basic stepsnecessaryto setup your camcorder to record. Refer to the other sectionsfor detailed operation and featureoptions. Assistance The toll-free numbers are available to help you with any problem you may encounter. Camcorder Exchange Warranty ..800-283-6503 Customer Service ....

  • Page 6: Attach The Adapter/Charger

    To AC 100- 240V, 50/60 Hz Adapter/Charger POWER Indicator DC OUT Jack DC Cable 2. Attach the adapter/charger. 3. Insert a tape. • Slide EJECT. Since the battery must be charged before it can be used the first time, • Turn the tape wheel on the cassette attach the adapter/charger to the...

  • Page 7: Adjust Handstrap

    EJECT Button LENS COVER Control PUSH Here to Close Tape Window Handstrap Flap POWER Switch and Indicator Handstrap Velcro Strip (Under Flap) 4. Adjust the handstrap to fit The power indicator will light and the camcorder will enter record your hand. pause.

  • Page 8: Select A Recording

    SP*SLP Switch 7. Select a recording speed. Note: The length of the tape you are using Repeatedly press the SP.SLP switch must be selected in the recording menu for the select a recording speed. camcorder to correctly calculate the recording indicator for the speed selected time remaining...

  • Page 9: Set The Mode Select Dial

    Electronic Viewfinder Eyepiece Focus Control .. " Mode Select Dial 8. Set the mode select dial to 9. Adjust the viewfinder AUTO. eyepiece focus control. • This places the camcorder in the full • Pull out and rotate the viewfinder A UTO mode.

  • Page 10: 10. Start And Stop Recording

    PLA Y/PA USE Button IThumb Trigger POWER (VCR/OFF/CAMERA) Switch Power Indicator 10. Start and stop recording. 11. Play back what you have recorded. • Press and release the thumb trigger • Place the POWER switch in VCR. to start recording. REC ,,, appears in the viewfinder,...

  • Page 11: Viewfinder

    14. Review camcorder's operating controls. Power Zoom Lever "W" - Wide Angle "T" - Telephoto Viewfinder Microphone Built-in Color Eyepiece Focus Control Enhancement Eyepiece Lens EJECT Button LENS COVER PUSH here to close. LIGHT OFFoAUTO* ON Switch Mode Select Dial Remote Control DISPLAY...
  • Page 12 14. Review camcorder's operating controls. (continued) Model CC636 and CC637 Only: B (Bright) and C (Color) Controls on Bottom of Viewfinder See Trouble Checks for details. QUICK REC Button Shoulder Strap Clock Cell Attach Battery DC In Jack (Attach Cable Here) Shoulder Strap Attachment Ring --...
  • Page 13 14. Review camcorder's operating controls. TRACKING Buttons SP*SLP Button (Also COUNTER R/M Button) (CC637 Only) COUNTER R/M TRACKING Programmable Synchro Edit Buttons _O'_c_r_ r-_+lr-_ r_ M.W.BAL (Manual White Balance) Button PLAY/PAUSE REW Button (Also EDIT...

  • Page 14: Adapter

    Using the Adapter/Charger to Power Your Camcorder The adapter/charger attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can he used virtually anywhere in the world to power the camcorder or recharge the battery.
  • Page 15 Using the Battery to Power Your Camcorder The battery must be charged as described on the nextpage before it can be used the first time. Initial charging will take approximately 70 minutes. When fully charged, the battery should supply about 55 minutes of operating time (depending on how nmch...
  • Page 16 Hold Battery Indicator Flush and Reference Marks Slide POWER To AC Wall Indicator Outlet 100-240 Volts, 50/60 Indicator REFRESH Button Indicator Adapter/Charger Caution: When a battery is attached to the adapter/charger, do not turn them upside down. The battery may fall off and be damaged or cause injury.
  • Page 17 Battery Level Indicator The battery level indicator appears in the • As the power is used viewfinder and shows you the amount appear. power in the rechargeable battery. • Whenthe battery power is almost gone, flashes in the viewfinder. camcorder will turn off automatic_dly after a few seconds.
  • Page 18 Optional Car Cord Adapter The optional DCC08 car cord shown on Cautions: The DCC08 is designed to be page 84 allows you to power your used only with vehicles having negative camcorder from the cigarette lighter ground electrical systems. socket of a car, truck, or RV. It converts Use only car cord adapter DCC08 with 12-volts...

  • Page 19: Remote Sensor

    Model CC637 Only: Lithium Cell Installation The remote's lithium cell is packed separately. Install it as follows: Back of Cautions: Lithium cell battery. Replace Remote Control only with 3-volt lithium cell - such as CR2025. Use of other cell presents a risk of fire or explosion.
  • Page 20 A brief description of Model CC637 remote button's functions is given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. ® TIME LAPSE SELF/INT. (Interval) TIME Button • When the POWER switch is in START /STOP CAMERA,...

  • Page 21: Buttons

    F FWD (Fast Forward) Button I(I_ZOOM (T and W) Buttons Camcorder's POWER switch Camcorder's POWER switch in CAMERA: CA MERA: • Press T to move the lens in the • With camcorder in record pause, telephoto (close-up) direction. press and hold F FWD to visually •...
  • Page 22 Model CC635 or CC636: A brief description of the remote button's functions given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. The battery must be installed as shown on page 22. SELF PLAY TIME LAPSE...

  • Page 23: Buttons

    INSERT Button FF (Fast Forward) Button Camcorder's POWER switch Used for dubbing video. pages 68-69. CAMERA: • With camcorder in record pause, START/STOP Button press and hold FF to visually When the POWER switch is in search forward on the tape. CAMERA, press START/STOP Release FF to return to.

  • Page 24: Remote Sensor

    Model CC635 or CC636: Install Lithium Cell The remote's lithium cell is packed separately. Install it as follows: Holder Back of Remote Control Insert Pencil Here Lithium Cell Cautions: Lithium cell battery. Replace only with 3-volt lithium cell - such as CR2025. Use of other cell presents a risk of fire or explosion.
  • Page 25 Recording Tips • Fading or wiping in and out of scenes • In case of fire or theft, make a video will make your videos appear more recording of your home and contents professional. store in a safe place. Learn to use the special production •...

  • Page 26: Recording

    We recommend that our cassettesbe usedwith your camcorder. Use of poor quality tapesor tapesthat have been damagedor mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Becausethere is no control over the type of tape purchasedor rented by consumers,head cleaning is not covered under warranty.
  • Page 27 Inserting and Removing Cassettes Caution: EJECT Button Insert the cassette only one way with the tape wheel facing up and the tape win- Wheel dow facing out. The cassette should slide easily PUSH into the com- Here to partment. Close not force the Cassette Compart-...
  • Page 28 Making a Recording The steps below tell you how to make a recording and suggest using some of the recording features. Each feature is described in detail on the following pages. Button Eyepiece _EARCH- Button Focus Control Zoom Tally Light iwitch Button and Indicator...
  • Page 29 C. Press the MENU button and use the C. Repeatedly press the FADE/WIPE • in the center of the mode select button to select a fade or wipe. dial to highlight TAPE LENGTH. • Select Black Fader, Blue Fader, Use a and • to select the length of Mosaic Fader, Door Wipe, or the tape you are using (T20, T30, or Scroll Wipe.

  • Page 30: Displays

    Viewfinder Displays Happy Birthday Tape Speed Indicators (SP or SLP) • ca appears when you select Sepia The tape speed selected with the to give your recordings a brown- SP. SLP button appears here. tone like old photographs. • Details on page 24, •...
  • Page 31 • [] appears when you select Black Date or Date and Time Fade and fade in and out from a The date, time, or date and time black screen. appears in this area of the • [] appears when you select Blue viewfinder when you press the Fade and fade in and out from a...

  • Page 32: Image Stabilizer (Eis)

    Viewfinder Displays (continued) 0min i!i_iiil Siili r_3- M 0:00:00_ LENS COVER Mws\ Warnings and Information Time Remaining Display • LENS COVER: When you turn on The approximate time remaining the camcorder, this indicator briefly the tape is automatically displayed flashes to remind you to open the here.
  • Page 33 Tape Length • Low-contrast indicators ( _ A ) flash when the auto-focus system The tape length (T20, T30, or T40) cannot focus properly. selected with the Tape Length • Details are on pages 38-39. feature on the recording menu ®...
  • Page 34 Viewfinder The camcorder's viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. Adjust Viewfinder for Convenient Viewing For convenient viewing, you can slide the viewfinder out from the camcorder and rotate it up and down. Control Cautions Do not force the...

  • Page 35: Indexing

    Electronic Image Stabilizer (EIS) The electronic image stabilizer helps compensate for unstable images caused by camera shake that can be created by recording out of a moving vehicle or while walking. EIS Indicator in Mode Select Dial Viewfinder EIS Button To Turn On EIS Notes: EIS does not operate when slow shutter is activated.

  • Page 36: Flying Erase Head

    EDIT SEARCH - and + Buttons QUICK REC Button Tally Light POWER Switch in CAMERA Flying Erase Head Tally Light A separate erase head is mounted The tally light lights when the camcorder the spinning headwheel (hence the term is recording. "flying").

  • Page 37: Recording (Continued)

    STARTISTOP START/STOP Button Button _;TARr pLAy I1ME LAI_E ® @ F FWD o..-. Button ANm. © Button REW -- Button Button INSlN:IT _DUII © © Model CC635 or CC636's Model CC637's Remote Remote Camera Edit Feature Quick Review Feature The camera edit feature allows you to Press and quickly release EDIT...

  • Page 38: Mode Select Dial

    Mode Select Dial The mode select dial lets you select automatic or manual control of several features. The center of the dial lets you focus manually and control the iris. The arrow buttons are also used with the menus. Mode Select Dial Full AUTO...

  • Page 39: Exposure Control

    Exposure Control When the mode select dial is in AUTO, the camcorder controls the iris for you. Under normal conditions, the camcorder will adjust brightness automatically. You may need to adjust brightness manually when the background is too bright or too dark in comparison with the subject.

  • Page 40: Focusing (Auto And Manual)

    Focusing Under normal conditions, the camcorder can adjust focus automatically. Under certain conditions, you may need to focus manually. (•) (•) Dial Focus Lock Feature Auto Focus The focus lock feature is useful when During auto focus the camcorder will focus automatically on the object located objects pass between your subject and the...
  • Page 41 Manual Focus Under certain conditions, such as those listed, you may need to focus manually. 1. Set the mode select dial to MANUAL adjusted any farther, the a indicator will flash. When the focus cannot be 2. Slide the power zoom lever toward T adjusted any closer, the at indicator to zoom in on your subject.

  • Page 42: White Balance

    White Balance Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder "sees" and records the light source in the scene you wish to record. Your camcorder is equipped with automatic white balance. However, under certain conditions, such as recording an object with various shades of the same...
  • Page 43 The MWB indicator will flash • Select :e_ when recording while the camcorder is adjusting outdoors on a sunny day. white balance and stop flashing • Select :y_ when recording when it is ready to record. outdoors on a cloudy day. Note: To change the tint for special...

  • Page 44: Recording Menu

    Recording Menu The main recording menu lets you select and set several recording features: Tele Macro (close-up), Gain Up (light adjustment), Color Filter, Tape Length, Title, and Date/Time. The Sub Menu lets you turn the tally light on or off, set interval recording times for self-timer, animation,...

  • Page 45: Set Tape Length

    Recording Menu m Tape Time-Remaining Display The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The Tape Length feature in the recording menu must be set correctly for the length tape you are using before the camcorder can correctly calculate time remaining.

  • Page 46: Zooming

    iii ... Zooming You can zoom in and out for close ups or wide-angle shots just by sliding the zoom lever on the camcorder or pressing the button on the remote. The camcorder automatically focus when you zoom at most distances. If you want to record a close-up of a small subject closer than three feet, you can turn on the Tele Macro feature in the recording menu.
  • Page 47 !i! _ ..Zooming (continued) START Zoom Buttons SELF (T and W) PLAY TIME LAPSE ® @ ANIM. INSERT A.DUB © © Model CC637's Remote Model CC635 CC636's Remote Recording Menu -- Tele Macro Zooming Feature To Turn on Tele Macro 1.

  • Page 48: Gain Up (Slow Shutter)

    Recording Menu- Gain Up (Slow Shutter) The gain up feature allows you to take bright and natural recordings even in areas with low or poor lighting. T, <, and • Buttons (On Mode Select Dial) Select Dial In MANUAL To Set Gain Up 1.
  • Page 49 Recording Menu -- Color Filter This feature allows you to record adding a red or blue tint to the recording. Button A, V, <,and • Buttons (On Mode Select Dial) Dial In MANUAL To Set Color Filter 4. Press < or • on the mode select dial 1.

  • Page 50: Color Filter

    Recording Menu B Title The title feature lets you choose one of eight preset titles or create your own title -- up to 18 characters. The clock cell battery must be installed as shown on page 53 before you can create or store your own title. ] Button A, V, ,,and •...
  • Page 51 To Create Your Own Title 1. Make sure the mode select dial is in 7.Press <, •, •, or • on the mode MANUAL. select dial to highlight the character you wish to use. 2. Press the MENU button. 8.Press MENU to enter the character in recording menu will appear in the viewfinder.
  • Page 52 Recording Menu -- Date/Time Display The date and time must be set before it can be displayed and recorded on your tapes. The clock cell must be installed as shown on the nextpage before the date can be set and recorded. •...
  • Page 53 Date/Time Display -- Install the Clock Lithium Cell The clock cell indicator _=_ will flash for a few seconds in the viewfinder when you turn on the camcorder if the cell has not been installed or needs to be replaced. Insert object here to remove cell.
  • Page 54 Date/Time Display The clock cell must be installed and the date and time set before they can be selected and recorded. V, ", and • Buttons (On Mode Select Dial) Select Dial In MANUAL DISPLAY Button To Select the Date or Date and Time You Want to Record On Your Tape...

  • Page 55: Date And Time Display

    Date/Time Display Viewfinder Displays Press DISPLAY to select mode. NOV 18.96 Date Display Date and Time Off 1:59:43 18.96 Time Display Return to Date IKs_y NOV18.96 1:59:56 Date and Time Display The mode selected will be recorded. To Record the Date or Date and Time on Your Tape 1.
  • Page 56 Recording Menu Sub Menu The sub menu lets you turn the tally light on or off, set an interval and recording times for self-timer, animation and time lapse recording, and set a JLIP ID number for a device (such as a personal computer). Button V, •, and •...
  • Page 57 Tally Light To Turn the Tally Light ON or OFF 3. Press • on the mode select dial to start 1. Follow steps 1-4 on the previous page. Tally flashing. 2. Press • or • on the mode select dial 4.

  • Page 58: Sub Menu

    Self-Timer The self-timer lets you set the camcorder to delay recording so you can be in the scene when recording begins. Tally MENU Button Rec Time JLIP ID NO. I mln Interval Timer Options 5mln Tally Lighl Mode Select • , V, _, and Dial In Buttons MANUAL...
  • Page 59 8. Press • or • on the mode select 10.Press MENU to exit the menu. _ and dial to select the amount of time you the amount of delayed recording time want the recording delayed. appear in the viewfinder. • Select 15S to delay the recording for 15 seconds.

  • Page 60: Animation Recording

    Sub Menu -- Animation Recording Animation recording produces an illusion of movement for an otherwise stationary scene or object by shooting a series of pictures of slightly different poses (such as cartooning). Tally MENU Interval Timer Button 1/4S JUP ID NO. 1/2S Select Recording...
  • Page 61 11. Press the thumb trigger to start 9. Press • to stop Rec Time flashing. recording. 10. Press MENU to exit the menu. 4. and Note: The recording stops the amount of recording time appear automatically after the selected period in the viewfinder.

  • Page 62: Time-Lapse Recording

    Sub Menu -- Time-Lapse Recording Time-lapse recording makes automatic recordings at preset time intervals. recording will show subtle changes (such as shifts in cloud formations or plant growth) when it remains focused on an object. MENU Tally 114S JLIP ID NO. 1/2S lmin Mode Select...
  • Page 63 15.Press the thumb trigger to start 13.Press • to stop Interval Timer recording. flashing. Notes: The camcorder will start and stop 14,Press MENU to exit the menu. recording the selected amount of time. the amount of recording time, and The tally light flashes with the flash speed and the amount of interval...

  • Page 64: Fading Or Wiping In Or Out

    Fading or Wiping In and Out You can add a professional touch to your recordings when you use the fade or wipe features. The picture gradually appears on a black or white screen and disappears leaving a black or white screen. The speed of the fade or wipe is automatically controlled by the camcorder.
  • Page 65 To Turn Off Fade or Wipe 3. Press FADE/WIPE to highlight fade or wipe you want to select. Press FADE/WIPE to highlight OFF. Note: The fade or wipe you select is Note: The fade or wipe will be turned off automatically activated and the fade/wipe and the menu will automatically...

  • Page 66: Production Effects

    Production Effects You can add a professional touch to your recordings when you use some of the production effects while recording. Dial 16X9/AE MODES Button To Use a Production Effect • Mode Select Dial in MANUAL 1. Place the POWER dial in CAMERA.
  • Page 67 To Turn Off a Production Effect 3. Press 16X9/AE MODES to highlight the effect you want to select. Press 16X9/AE MODES to place the cursor on OFF. Note: The effect you select is automatically activated and the menu is Note: The effect will be turned off and the removed from the viewfinder menu will automatically...

  • Page 68: Audio Dubbing (Remote Only)

    Audio Dubbing (Remote Only) Audio dubbing lets you record new sound (audio) in place of previously recorded audio. COUNTER R/M Button Button POWER Switch in VCR To Audio Dub 5. Press COUNTER R/M again for less 1. Place the tape with safety tab intact into the camcorder.
  • Page 69 A. (Audio) PLAY putv Lapin[ Button Button -- STOP-.__.__. PA USE Button Button REW -- Model CC637's Remote Button © --A. (Audio) DUB Button Model CC635 or CC636's Remote 7. Press and hold A.DUB while pressing 8. Press PLAY on the remote to start and releasing PA USE on the remote to audio dubbing.

  • Page 70: Edit Insert (Remote Only)

    Edit Insert (Remote Only) Edit insert lets you record new video in place of previously recorded video without replacing the audio. COUNTER R/M Button PLAY/PAUSE -REW Button POWER Switch in VCR To Edit Insert 1. Place the tape with safety tab intact 5.
  • Page 71 PA USE Button Button PLAY Button PLAY Model CC637's Remote mjty -Q @ Button __ STOP PA USE Button Button Button n,_ERT _OUg --0 © INSERT-- Button Model CC635 or CC636's Remote 7. Press and hold INSERT while 8. Press START/STOP on remote (thumb trigger...

  • Page 72: Using The Cassette Adapter

    Using the Cassette Adapter The camcorder uses a smaller size cassette, but records in standard VHS format. cassette adapter allows you to play your VHS-C cassettes in a VCR just like other standard VHS cassettes. Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the VHS VCR like a normal VHS cassette.
  • Page 73 Load Detector 4. Gently close the cassette compartment Caution: If the load detector is still lid until it locks into place. Make sure extending from the side of the cassette the cassette reel area under the adapter adapter after you have attempted to load is free to turn while the cassette is the cassette, loading is not complete.

  • Page 74: Viewfinder Playback

    Viewfinder Playback Viewfinder playback is the simplest way to watch tapes using the camcorder. Button Button Button "REW Button POWER Switch in VCR To Play Back a Tape 1. Place POWER switch in VCR. The During playback, use the playback power indicator will light.

  • Page 75: Playback Features

    Playback Features PLAY F FWD Button Button--. tJ_g_ STOP "PAUSE Button-- REW Button -- Button Button -- PLAY Button -- Button PA USE Button Model CC635 or Model CC637's Remote CC636's Remote Tape Positioning Visual Searching • During playback, press and release Place POWER switch in VCR and press STOP.

  • Page 76: Time Counter

    Playback Features (Continued) COUNTER R/M Button STOP Button POWER Switch in VCR Thumb Trigger Time Counter The time-counter display shows the actual time elapsed when playing back a segment of tape. The memory-stop feature helps locate a certain point on the tape. When memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0:00:00.

  • Page 77: Tracking

    Playback Features (Continued) TRACKING Buttons Tracking During playback, streaks may appear in the playback picture. Press either TRACKING button to move the streaks up or down and out of the picture. Note: The TRACKING buttons may have no • During stop-action playback, pressing effect on tapes recorded...

  • Page 78: Playback On Tv (Or Vcr) With Audio/Video

    Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks To connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO lN jacks, you will need an optional audio/video cable such as VH83 shown on page 86. If your TV is already connected to a VCR, you can attach the camcorder to the VCR...
  • Page 79 Playback Operation and How to Copy Tapes on the VCR 1. A. Camcorder connected directly to • During playback, use the playback TV: Turn on the TV and tune it to features on pages 73-75. the video input channel. 4. To copy what the camcorder is playing, B.

  • Page 80: Model Cc637 Only

    Model CC637 Only: Programming Remote to Operate Compatible The CC637' s remote can be programmed to operate the camcorder and the basic functions of a compatible VCR for easy tape editing. After the remote has been programmed, you can control the VCR by pressing and holding VCR while pressing one of the function buttons (REW, F FWD, STOP, PAUSE, or PLAY).
  • Page 81 Refer to the chart below to find the code numbers that correspond to your brand of VCR. Try each two-digit code number separately until you find the correct one. Press the buttons on the remote corresponding to the code numbers. 1.

  • Page 82: Synchro Edit

    Model CC637 Only: Copying Tapes Using Progranunable Synchro Edit You can program the camcorder with up to eight segments of a prerecorded tape. The camcorder wil! automatically copy these segments on a compatible VCR. 5. Ix_cate the beginning of the first segment you want to progrLun.

  • Page 83: Audio/Video

    Copying Tapes Using Programmable Synchro Edit (continued) CANCEL Button Back of Connected Optional White Audio/Video to TV Audio Plug Cable AUDIO VIDEO EOrf Yellow /€ _'---.. Video Plug//.,€ t'_l_ ,. s JLIP 0- .._,'/ --v,•-- Jack Att-_-_ch edit cable Edit Cable (Supplied) to EDIT, EDIT IN, EDIT IN/OUT,...
  • Page 84 Playback on a TV Without Audio/Video Inputs To.connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82 or VH90 shown on page 86. If your TV has AUDIO and VIDEO lNjacks (or is connected to a VCR), refer to pages 76-77.
  • Page 85 Playback Operation 5. Press PLAY/PAUSE on the camcorder. Set the CH3/CH4 switch on the RF output adapter to channel 3 or 4. • During playback, use the playback features described on pages 73-74. 2. Turn on the TV, and tune it to the same channel you selected with the...
  • Page 86 We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your compact VHS camcorder. following pages have a selection of accessories to help make your memorable moments look and sound even better. These accessories are designed to make the process of recording and watching your videos more enjoyable.
  • Page 87 FBI260 and FB120 Rechargeable Using the Optional AC088 Tripod Batteries Mounting the camcorder on a tripod, such as AC088, will keep the camcorder steady and produce excellent video results. This tripod's fluid-effect head provides smooth camera pan and tilt. The quick- These rechargeable nickel-cadmium release...
  • Page 88 VH54 Cable Transformer 1CVA147C RF Output Adapter This 75-to-300 ohm transformer is used to connect a standard 75-ohm antenna cable (such as VH82 or VH90) to the 300 ohm screw terminals on a TV. This RF output adapter is used with a coaxial RF cable, such as VH82 or VH90, to connect your camcorder to a standard TV (one without audio/video...
  • Page 89 Order Form for Camcorder Model CC635/CC636/CC637 Part No. Price Qty. Total Description AC088 $ 39.95 Super Lightweight Tripod AC201A $ 39.95 Soft Camcorder Case ACS091 $ 12.95 Shoulder Strap AH25 2.95 Y-Adapter CPS91 $ 59.95 AC Battery Charger DCC08 $ 89.95 Car Cord Adapter FB 120 $ 89.95...
  • Page 90 Charge your order on your VISA, MasterCard, or Discover Card by filling in below USE YOUR CREDIT CARD IMPORTANT: Copy complete account number _'_"--I[ft'_/lll[" from your VISA card v1--r-l-q VT--Vq r --V_ VT--r-1 My cardexpires: IMPORTANT: Copy complete account number from your MasterCard vvv-cq r--r-w_ vx--7-_ vl-q--v1 Copy Number...
  • Page 91 To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail. United States and Canada Orders To place your order by phone, have your Visa, MasterCard, or Discover card ready and call the toll-free...

  • Page 92: Built-In Color Enhancement

    Built-In Color Enhancement Light The built-in color enhancement light will automatically add more light when needed. The POWER switch must be in CAMERA to operate the video light. Built-In Video Li LIGHT OFF"A UTO'ON Button To Use the Light Set the LIGHT OFFoA UTO.ON switch. Set to ON to turn the light on.
  • Page 93 Replacing the Bulb We recommend you consult your dealer or Servicenter to replace the bulb. If you replace the bulb, use only part #233430 to replace the entire bulb assembly. Carefully follow the instructions below. To Replace the Bulb Assembly Assembly 1.

  • Page 94: Attaching The Shoulder Strap

    Attaching the Shoulder Strap The camcorder's shoulder strap is designed to let you carry the camcorder from your shoulder and - when you are ready to shoot - bring the camcorder to shooting position in one quick movement. To Attach the Shoulder Strap 4.
  • Page 95 interference by one or more of the This equipment has been tested and following measures: found to comply with the limits for a Class B digital device and RF lighting • Reorient or relocate the receiving device, pursuant to Part 15 and Part 18 of antenna.
  • Page 96 Cleaning the Camcorder To clean the camcorder's exterior, remove any power source connected to Caution: Use of strong cleaning the camcorder and gently wipe it with a products, such as those containing clean soft cloth. alcohol or benzine, may damage the camcorder.
  • Page 97 Authorized RCA Camcorder stick to the headwheel and damage Servicenter. headwheel or tape. • Do not aim your camcorder at the sun...
  • Page 98 Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.
  • Page 99 Camcorder doesnot • Aim remote at camcorder's remote control sensor. respondto remote • Remote's lithium cell battery may be installed incorrectly. control See pages 17 and 22. • Remote control's lithium cell battery may need replacing. • Remote control sensor on camcorder exposed to direct sunlight...
  • Page 100 _i!i_i_i_i_!_i_:_!_i_ili_!i!_!_!_i _ _i!i_i_i_i_i_ _i_i_i_ _ _i_ _i_i_i_ Picture is too dark • Place mode select dial in MANUAL and press or subject too dark FRONTLIGHT or BACKLIGHT. See page • Turn on the built-in color enhancement light. Picture recorded • Special effect selected. Press the 16X9/AE MODES button with special effect to display the production effects menu and select OFF.
  • Page 101 Thomson provides a toll-free telephone You can reach Thomson at the following number: number to help you with any problems you may encounter with your camcorder. 800-283-6503 Many can be diagnosed over the phone, (Toll free inside U.S.A.) and if necessary, a replacement unit can Our toll-free Camcorder number be shipped to you.
  • Page 102 What your warranty covers: which validates date of purchase • Any defect in materials or the exchange location and you will be workmanship. provided the new or refurbished unit. 4. If the repairs were covered by your For how long after your purchase: warranty, you will not be billed.
  • Page 103 Camcorder Servicenter of your choice. • Your name, address and phone • Show the Authorized RCA Camcorder number. Servicenter representative your sales Return transportation, storage, and receipt or other, evidence of purchase. handling costs and insurance are your •...
  • Page 104 General Viewfinder Power requirement: 6VDC Model CC635: .5" Black & White Power consumption: Model CC636: .55" Color- 113K Model CC635:5.7 watts (normal) Pixel Model CC636:5.9 watts (normal) Model CC637: .55" Color - 113K Model CC637:5.9 watts (normal) Pixel Weight: Model CC635:1.74 lbs.

  • Page 105: Care And Maintenance

    16X9/AE MODES ..9,26-27,28,64-65 Cassettes, Care and Storage ..A. (Audio) DUB Button . 18-19,20-21,67 Cassettes, Inserting and Removing...25 Cautions ..Inside Front Cover Accessories, Included ....Accessories, Optional ..84-89 Charging the Battery ....Accessory, Order Form ..87-89 Checking Problems ....

  • Page 106: Limited Warranty

    FF and FFWD (Fast Forward) Buttons Microphone ....9,34 ..11,18-19,20-21,35,72,73,78-79 Mode Select Dial..7,26-27,28-29,36,37, ..38-39,42,44,46,47,48,50, First-Time Operation .... 3-11 .... 52,54,56,58,60,62,64 Flying Erase Head ....FOCUS Buttons Mosaic Fader ......31,38-39,42,46,47,48,50,54 ON/OFF Button ..11,18-19,80-81 Focus Lock Feature ....
  • Page 107 Recording Speeds ....6,24 Things to Avoid ....Recording the Time and Date ..52-53 Thumb Trigger ....8,10 Tilt, Viewfinder ....Recording Tips ....Time Counter ..30-31,67,69,74 Recording, First ....TIME LAPSE ANIM. REC/TIME Recording, Making a ... 26-27 Button ....
  • Page 108 Need Assistance? We want to help! U.S. Consumers: Camcorder Exchange Warranty ..800-283-6503 Customer Service ....800-336-1900 Accessories ..... 800-338-0376 Canadian Consumers: English ......800-522-0338 French ......800-522-0445 If your camcorder needs service, please contact your dealer or the nearest Servicenter from the yellow pages.
