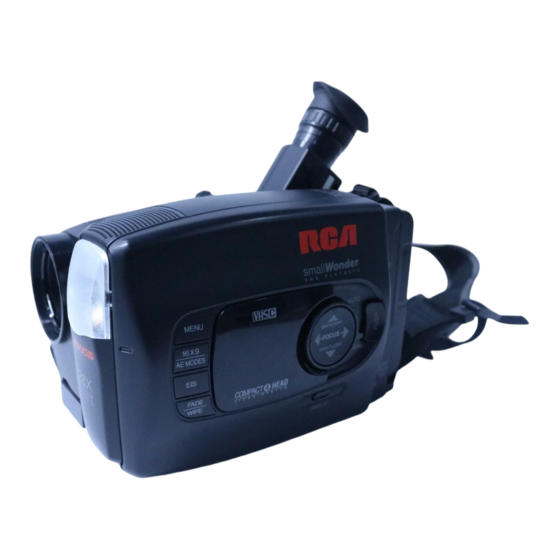

CC635/636/637
USER'S
GUIDE
C A M C O
R D E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC635 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCA CC635

Summary of Contents for RCA CC635

  • Page 1 CC635/636/637 USER‘S GUIDE C A M C O R D E R...

  • Page 2: Important Safety Information

    Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here. Record the serial and model numbers located on the bottom of the camcorder. Model No: _____________________________________ CC635/CC636/CC637 Serial No: _____________________________________ Purchase Date: _____________________________________...

  • Page 3: Table Of Contents

    • Install Battery Cell .......17 Table of Contents ......1-2 • Remote Sensor......17 First-Time Operation • Buttons ........18-19 • Assistance ..........3 • Models CC635 and CC636 • Unpack Camcorder & • Buttons ........20-21 Accessories ........3 • Install Battery Cell .......22 • Attach the Adapter/Charger....4 •...

  • Page 4: Table Of Contents

    Table of Contents Recording Playback (continued) Mode Select Dial • Using the Cassette Adapter ..70-71 • Full AUTO Mode......36 • Viewfinder Playback ......72 • Exposure Control......37 • Playback Features • Focusing (Auto and Manual) ..38-39 • Visual Searching ......73 • White Balance ......40-41 •...

  • Page 5: First-Time Operation

    NICKEL CADMIUM BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. Cassette Adapter Model CC635, CC636 or CC637* Rechargeable 6-Volt Battery Part No. 232845 *Your camcorder may look slightly different Part No. FB1260 from the one shown in this manual. Caution: Do not...

  • Page 6: Attach The Adapter/Charger

    First-Time Operation To AC 100- 240V, 50/60 Hz Adapter/Charger POWER Indicator DC OUT Jack DC Cable 2. Attach the adapter/charger. 3. Insert a tape. Since the battery must be charged • Slide EJECT. before it can be used the first time, •...

  • Page 7: Adjust Handstrap

    First-Time Operation EJECT Button Tape Wheel LENS COVER Control PUSH Here to Close Tape Window Handstrap Flap POWER Switch and Indicator Handstrap Velcro Strip (Under Flap) • The power indicator will light and 4. Adjust the handstrap to fit the camcorder will enter record your hand.

  • Page 8: Select A Recording Speed

    First-Time Operation SP•SLP Switch 7. Select a recording speed. Repeatedly press the SP•SLP switch to Note: The length of the tape you are using must be selected in the recording menu for the select a recording speed. The camcorder to correctly calculate the recording indicator for the speed selected time remaining on the tape.

  • Page 9: Set The Mode Select Dial

    First-Time Operation Electronic Viewfinder Eyepiece Focus Control Mode Select Dial 8. Set the mode select dial to 9. Adjust the viewfinder and AUTO. eyepiece focus control. • This places the camcorder in the full • Pull out and rotate the viewfinder AUTO mode.

  • Page 10: Start And Stop Recording

    First-Time Operation REW Button STOP Button PLAY/PAUSE Button Thumb Trigger POWER (VCR/OFF/CAMERA) Switch Power Indicator 10. Start and stop recording. 11. Play back what you have recorded. • Press and release the thumb trigger • Place the POWER switch in VCR. to start recording.

  • Page 11: Operating Controls

    First-Time Operation 14. Review camcorder’s operating controls. Power Zoom Lever “W” - Wide Angle “T” - Telephoto Viewfinder Microphone Built-in Color Eyepiece Focus Control Enhancement Light Eyepiece Lens EJECT Button LENS COVER Control Cassette Door PUSH here to close. LIGHT OFF•AUTO•...

  • Page 12: Review Camcorder's

    First-Time Operation 14. Review camcorder’s operating controls. (continued) Model CC636 and CC637 Only: B (Bright) and C (Color) Controls on Bottom of Viewfinder See Trouble Checks for details. QUICK REC Button Shoulder Strap Attachment Ring Clock Cell Compartment Attach Battery Here DC In Jack (Attach Adapter/Charger DC Cable Here)
  • Page 13 First-Time Operation 14. Review camcorder’s operating controls. TRACKING Buttons SP•SLP Button (Also COUNTER R/M Button) SP•SLP (CC637 Only) IN/OUT COUNTER R/M TRACKING Programmable Synchro Edit MAN.W.BAL EDIT CANCEL RANDOM EDIT Buttons M.W.BAL (Manual EDIT – White Balance) Button SEARCH STOP PLAY/PAUSE PLAY/PAUSE Button REW Button (Also EDIT SEARCH –...

  • Page 14: Using Adapter/Charger

    Powering Your Camcorder Using the Adapter/Charger to Power Your Camcorder The adapter/charger attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

  • Page 15: Using Rechargeable Battery

    Powering Your Camcorder Using the Battery to Power Your Camcorder The battery must be charged as described on the next page before it can be used the first time. Initial charging will take approximately 70 minutes. When fully charged, the battery should supply about 55 minutes of operating time (depending on how much you use the light, zoom, and pause).
  • Page 16 Powering Your Camcorder Hold Battery Indicator Flush and Reference Marks Slide POWER To AC Wall Indicator Outlet 100-240 Volts, 50/60 Hz. Indicator REFRESH Button REFRESH Adapter/Charger Indicator Caution : When a battery is attached to the adapter/charger, do not turn them upside down. The battery may fall off and be damaged or cause injury.

  • Page 17: Battery Level Indicator

    Powering Your Camcorder Battery Level Indicator The battery level indicator appears in the • As the power is used viewfinder and shows you the amount of appear. power in the rechargeable battery. • When the battery power is almost gone, flashes in the viewfinder.

  • Page 18: Using Optional Car Cord Adapter

    Powering Your Camcorder Optional Car Cord Adapter The optional DCC08 car cord shown on Cautions: The DCC08 is designed to be page 84 allows you to power your used only with vehicles having negative camcorder from the cigarette lighter ground electrical systems. socket of a car, truck, or RV.

  • Page 19: Install Battery Cell

    Model CC637 Only: Remote Control Model CC637 Only: Lithium Cell Installation The remote’s lithium cell is packed separately. Install it as follows: Cautions: Back of Lithium cell battery. Replace only with 3-volt lithium cell – such as CR2025. Remote Control Use of other cell presents a risk of fire or explosion.

  • Page 20: Buttons

    Model CC637 Only: Remote Control A brief description of Model CC637 remote button’s functions is given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. TIME LAPSE SELF/INT. (Interval) TIME Button START When the POWER switch is in /STOP CAMERA, press to activate the self-timer or select an amount...

  • Page 21: Buttons

    Model CC637 Only: Remote Control F FWD (Fast Forward) Button ZOOM (T and W) Buttons Camcorder’s POWER switch in Camcorder’s POWER switch in CAMERA: CAMERA: • Press T to move the lens in the • With camcorder in record pause, telephoto (close-up) direction.

  • Page 22: Buttons

    Model CC635 or CC636: Remote Control Model CC635 or CC636: A brief description of the remote button’s functions is given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. The battery must be installed as shown on page 22.

  • Page 23: Buttons

    Model CC635 or CC636: Remote Control INSERT Button FF (Fast Forward) Button Used for dubbing video. See Camcorder’s POWER switch in pages 68-69. CAMERA: • With camcorder in record pause, START/STOP Button press and hold FF to visually When the POWER switch is in search forward on the tape.

  • Page 24: Install Battery Cell

    Model CC635 or CC636: Remote Control Model CC635 or CC636: Install Lithium Cell The remote’s lithium cell is packed separately. Install it as follows: Holder Back of Insert Pencil Here Remote Control Lithium Cell Cautions: Lithium cell battery. Replace only with 3-volt lithium cell – such as CR2025. Use of other cell presents a risk of fire or explosion.

  • Page 25: Recording And Traveling Tips

    Recording Recording Tips • Fading or wiping in and out of scenes • In case of fire or theft, make a video will make your videos appear more recording of your home and contents to professional. store in a safe place. •...

  • Page 26: Video Cassettes

    Video Cassettes We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not covered under warranty.

  • Page 27: Video Cassettes

    Video Cassettes Inserting and Removing Cassettes Caution: EJECT Button Insert the cassette only one way with the tape wheel facing up and the tape win- Tape Wheel dow facing out. The cassette should slide easily PUSH into the com- Here to partment.

  • Page 28: Making A Recording

    Recording Making a Recording The steps below tell you how to make a recording and suggest using some of the recording features. Each feature is described in detail on the following pages. SP•SLP Button Eyepiece EDIT SEARCH – Button Focus Control LENS COVER Control Zoom...
  • Page 29 Recording C. Press the MENU button and use the C. Repeatedly press the FADE/WIPE button to select a fade or wipe. in the center of the mode select dial to highlight TAPE LENGTH. • Select Black Fader, Blue Fader, to select the length of Mosaic Fader, Door Wipe, or the tape you are using (T20, T30, or Scroll Wipe.

  • Page 30: Viewfinder Displays

    Recording Viewfinder Displays P AUSE Happy Birthday NOV 18.96 PM 8:30:00 Tape Speed Indicators (SP or SLP) • appears when you select Sepia The tape speed selected with the to give your recordings a brown- SP• SLP button appears here. tone like old photographs.
  • Page 31 Recording • appears when you select Black Date or Date and Time Fade and fade in and out from a The date, time, or date and time black screen. appears in this area of the • appears when you select Blue viewfinder when you press the Fade and fade in and out from a DISPLAY button.
  • Page 32 Recording Viewfinder Displays (continued) 0min M 0:00:00 LENS COVER Warnings and Information Time Remaining Display • LENS COVER: When you turn on The approximate time remaining on the camcorder, this indicator briefly the tape is automatically displayed flashes to remind you to open the here.
  • Page 33 Recording • Low-contrast indicators ( Tape Length flash when the auto-focus system The tape length (T20, T30, or T40) cannot focus properly. selected with the Tape Length • Details are on pages 38-39. feature on the recording menu appears here. Details are on Exposure Indicator page 43.

  • Page 34: Viewfinder

    Recording Viewfinder The camcorder’s viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. Adjust Viewfinder for Convenient Viewing For convenient viewing, you can slide the viewfinder out from the camcorder and rotate it up and down. Viewfinder Eyepiece Focus Control Cautions...

  • Page 35: Electronic Image Stabilizer (Eis)

    Recording Electronic Image Stabilizer (EIS) The electronic image stabilizer helps compensate for unstable images caused by camera shake that can be created by recording out of a moving vehicle or while walking. EIS Indicator in Mode Select Dial Viewfinder EIS Button To Turn On EIS Notes: EIS does not operate when slow shutter is activated.

  • Page 36: Flying Erase Head

    Recording Microphone EDIT SEARCH – and + Buttons QUICK REC Button Tally Light POWER Switch in CAMERA Flying Erase Head Tally Light A separate erase head is mounted on The tally light lights when the camcorder the spinning headwheel (hence the term is recording.

  • Page 37: Quick Review

    Button Button INSERT A.DUB CANCEL REC/PAUSE RANDOM ASSEMBLY EDIT Model CC635 or CC636’s Model CC637’s Remote Remote Quick Review Feature Camera Edit Feature Press and quickly release EDIT The camera edit feature allows you to SEARCH – on the camcorder (REW on...

  • Page 38: Recording (Continued) Mode Select Dial

    Recording Mode Select Dial The mode select dial lets you select automatic or manual control of several features. The center of the dial lets you focus manually and control the iris. The arrow buttons are also used with the menus. Mode Select Dial Full AUTO Mode 1.

  • Page 39: Exposure Control

    Recording Exposure Control When the mode select dial is in AUTO, the camcorder controls the iris for you. Under normal conditions, the camcorder will adjust brightness automatically. You may need to adjust brightness manually when the background is too bright or too dark in comparison with the subject.

  • Page 40: Focusing (Auto And Manual)

    Recording Focusing Under normal conditions, the camcorder can adjust focus automatically. Under certain conditions, you may need to focus manually. FOCUS ( FOCUS ( Mode Select Dial Auto Focus Focus Lock Feature During auto focus the camcorder will The focus lock feature is useful when focus automatically on the object located objects pass between your subject and the in the center area of the viewfinder.

  • Page 41: Manual Focus

    Recording Manual Focus Under certain conditions, such as those listed, you may need to focus manually. 1. Set the mode select dial to MANUAL. adjusted any farther, the indicator will flash. When the focus cannot be 2. Slide the power zoom lever toward T adjusted any closer, the indicator to zoom in on your subject.

  • Page 42: White Balance

    Recording White Balance Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder “sees” and records the light source in the scene you wish to record. Your camcorder is equipped with automatic white balance. However, under certain conditions, such as recording an object with various shades of the same color or when recording a predominant red or brown object outdoors, you may want to adjust white balance manually.
  • Page 43 Recording Press the MAN.W.BAL (Manual White Balance) Button to Display in Viewfinder Auto White Balance Manual White Balance Outdoors — Sunny Halogen or Tungsten Outdoors — Cloudy Light The MWB indicator will flash • Select when recording while the camcorder is adjusting outdoors on a sunny day.

  • Page 44: Recording Menu

    Recording Recording Menu The main recording menu lets you select and set several recording features: Tele Macro (close-up), Gain Up (light adjustment), Color Filter, Tape Length, Title, and Date/Time. The Sub Menu lets you turn the tally light on or off, set interval and recording times for self-timer, animation, and time lapse recording, and set an ID number.

  • Page 45: Tape Remaining Display

    Recording Recording Menu — Tape Time-Remaining Display The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The Tape Length feature in the recording menu must be set correctly for the length tape you are using before the camcorder can correctly calculate time remaining.

  • Page 46: Zooming

    Recording Zooming You can zoom in and out for close ups or wide-angle shots just by sliding the zoom lever on the camcorder or pressing the button on the remote. The camcorder can automatically focus when you zoom at most distances. If you want to record a close-up of a small subject closer than three feet, you can turn on the Tele Macro feature in the recording menu.

  • Page 47: Sub Menu

    CANCEL REC/PAUSE INSERT A.DUB RANDOM ASSEMBLY EDIT Model CC637’s Remote Model CC635 or CC636’s Remote Recording Menu — Tele Macro Zooming Feature To Turn on Tele Macro 1. Make sure the mode select dial is in 3. Press on the mode select dial MANUAL.

  • Page 48: Gain Up (Slow Shutter)

    Recording Recording Menu — Gain Up (Slow Shutter) The gain up feature allows you to take bright and natural recordings even in areas with low or poor lighting. MENU Button , and Buttons (On Mode Select Dial) Mode Select Dial In MANUAL To Set Gain Up 1.

  • Page 49: Color Filter

    Recording Recording Menu — Color Filter This feature allows you to record adding a red or blue tint to the recording. MENU Button , and Buttons (On Mode Select Dial) Mode Select Dial In MANUAL To Set Color Filter 4. Press on the mode select dial 1.

  • Page 50: Titler

    Recording Recording Menu — Title The title feature lets you choose one of eight preset titles or create your own title — up to 18 characters. The clock cell battery must be installed as shown on page 53 before you can create or store your own title. MENU Button , and Buttons (On...
  • Page 51 Recording To Create Your Own Title 1. Make sure the mode select dial is in 7.Press , or on the mode MANUAL. select dial to highlight the character you wish to use. 2. Press the MENU button. The recording menu will appear in the 8.Press MENU to enter the character in viewfinder.

  • Page 52: Set The Date And Time

    Recording Recording Menu — Date/Time Display The date and time must be set before it can be displayed and recorded on your tapes. The clock cell must be installed as shown on the next page before the date can be set and recorded. MENU Button , and Buttons (On...

  • Page 53: Install The Clock Lithium Cell

    Recording Date/Time Display — Install the Clock Lithium Cell The clock cell indicator will flash for a few seconds in the viewfinder when you turn on the camcorder if the cell has not been installed or needs to be replaced. Insert object here to remove cell.

  • Page 54: Select Date Or Date And Time You Want To Record

    Recording Date/Time Display The clock cell must be installed and the date and time set before they can be selected and recorded. MENU Button , and Buttons (On Mode Select Dial) Mode Select Dial In MANUAL DISPLAY Button To Select the Date or Date and Time You Want to Record On Your Tape 1.
  • Page 55 Recording Date/Time Display Viewfinder Displays Press DISPLAY to select mode. NOV 18.96 Date Display Date and Time Off PM 1:59:43 NOV 18.96 Time Display Return to Date Display NOV 18.96 PM 1:59:56 Date and Time Display The mode selected will be recorded. To Record the Date or Date and Time on Your Tape 1.

  • Page 56: Change A Feature In The Sub Menu

    Recording Recording Menu — Sub Menu The sub menu lets you turn the tally light on or off, set an interval and recording times for self-timer, animation and time lapse recording, and set a JLIP ID number for a device (such as a personal computer). MENU Button , and Buttons (On...

  • Page 57: Tally Light

    Recording Tally Light To Turn the Tally Light ON or OFF 1. Follow steps 1-4 on the previous page. 3. Press on the mode select dial to start Tally flashing. 2. Press on the mode select dial to highlight Tally. 4.

  • Page 58: Self Timer

    Recording Self-Timer The self-timer lets you set the camcorder to delay recording so you can be in the scene when recording begins. Tally MENU Interval Timer Button Rec Time JLIP ID NO. 1min Interval Timer Options 5min Tally Light , and Mode Select Dial In Buttons (On...
  • Page 59 CANCEL REC/PAUSE INSERT A.DUB RANDOM ASSEMBLY EDIT Model CC637’s Remote Model CC635 or CC636’s Remote 1. Place the POWER dial on the amount of delayed recording time camcorder in CAMERA. The power appear in the viewfinder. indicator will light. 3. Press the START/STOP button to start 2.

  • Page 60: Animation Recording

    Recording Sub Menu — Animation Recording Animation recording produces an illusion of movement for an otherwise stationary scene or object by shooting a series of pictures of slightly different poses (such as cartooning). Tally MENU Interval Timer Button Rec Time 1/4S JLIP ID NO.

  • Page 61: In The Viewfinder

    INSERT Button INSERT A.DUB CANCEL REC/PAUSE RANDOM ASSEMBLY EDIT Model CC635 and Model CC637’s Remote CC636’s Remote 1. Place the POWER dial on the amount of recording time appear in camcorder in CAMERA. The power the viewfinder. indicator will light.

  • Page 62: Time-Lapse Recording

    Recording Sub Menu — Time-Lapse Recording Time-lapse recording makes automatic recordings at preset time intervals. The recording will show subtle changes (such as shifts in cloud formations or plant growth) when it remains focused on an object. MENU Button Tally Interval Timer Rec Time 1/4S...

  • Page 63: The Viewfinder

    REC/TIME CANCEL REC/PAUSE Button RANDOM ASSEMBLY EDIT Model CC637’s Remote Model CC635 and CC636’s Remote 1. Place the POWER dial on the 3. Press the TIME LAPSE SELF INT./TIME button. and the interval camcorder in CAMERA. The power time appear in the viewfinder.

  • Page 64: Fading Or Wiping In And Out

    Recording Fading or Wiping In and Out You can add a professional touch to your recordings when you use the fade or wipe features. The picture gradually appears on a black or white screen and disappears leaving a black or white screen. The speed of the fade or wipe is automatically controlled by the camcorder.
  • Page 65 Recording 3. Press FADE/WIPE to highlight the To Turn Off Fade or Wipe fade or wipe you want to select. Press FADE/WIPE to highlight OFF. Note: The fade or wipe you select is Note: The fade or wipe will be turned off automatically activated and the fade/wipe and the menu will automatically be removed menu is removed from the viewfinder in...

  • Page 66: Production Effects

    Recording Production Effects You can add a professional touch to your recordings when you use some of the production effects while recording. Mode Select Dial 16X9/AE MODES Button To Use a Production Effect 1. Place the POWER dial in CAMERA. •...
  • Page 67 Recording 3. Press 16X9/AE MODES to highlight To Turn Off a Production Effect the effect you want to select. Press 16X9/AE MODES to place the Note: The effect you select is cursor on OFF. automatically activated and the menu is Note: The effect will be turned off and the removed from the viewfinder in menu will automatically be removed from...

  • Page 68: Audio Dubbing (Remote Only)

    Recording Audio Dubbing (Remote Only) Audio dubbing lets you record new sound (audio) in place of previously recorded audio. COUNTER R/M Button PLAY/PAUSE Button REW Button POWER Switch in VCR To Audio Dub 5. Press COUNTER R/M again for less 1.

  • Page 69: Audio Dubbing

    Model CC637’s Remote Button INSERT A.DUB A. (Audio) DUB Button Model CC635 or CC636’s Remote 7. Press and hold A.DUB while pressing 8. Press PLAY on the remote to start and releasing PAUSE on the remote to audio dubbing. appears in the place the camcorder in audio dub viewfinder.

  • Page 70: Edit Insert (Remote Only)

    Recording Edit Insert (Remote Only) Edit insert lets you record new video in place of previously recorded video without replacing the audio. COUNTER R/M Button PLAY/PAUSE Button REW Button POWER Switch in VCR To Edit Insert 1. Place the tape with safety tab intact 5.

  • Page 71: The Camcorder

    Button Button Button INSERT A.DUB INSERT Button Model CC635 or CC636’s Remote 8. Press START/STOP on remote (thumb 7. Press and hold INSERT while trigger on camcorder) to start edit pressing and releasing PAUSE on the insert. appears in the viewfinder.

  • Page 72: Playback

    Playback Using the Cassette Adapter The camcorder uses a smaller size cassette, but records in standard VHS format. The cassette adapter allows you to play your VHS-C cassettes in a VCR just like other standard VHS cassettes. Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the VHS VCR like a normal VHS cassette.
  • Page 73 Playback Load Detector 4. Gently close the cassette compartment Caution: If the load detector is still lid until it locks into place. Make sure extending from the side of the cassette the cassette reel area under the adapter adapter after you have attempted to load is free to turn while the cassette is the cassette, loading is not complete.

  • Page 74: Viewfinder Playback

    Playback Viewfinder Playback Viewfinder playback is the simplest way to watch tapes using the camcorder. PLAY/PAUSE Button EJECT STOP Button Button FF Button REW Button POWER Switch in VCR To Play Back a Tape 1. Place POWER switch in VCR. The During playback, use the playback power indicator will light.

  • Page 75: Playback Features

    INSERT A.DUB STOP Button CANCEL REC/PAUSE PAUSE Button RANDOM ASSEMBLY EDIT Model CC635 or Model CC637’s Remote CC636’s Remote Visual Searching Tape Positioning • During playback, press and release FF Place POWER switch in VCR and press (F FWD on remote) or REW if you STOP.

  • Page 76: Time Counter

    Playback Playback Features (Continued) COUNTER R/M Button STOP Button REW Button POWER Switch in VCR Thumb Trigger Time Counter The time-counter display shows the actual time elapsed when playing back a segment of tape. The memory-stop feature helps locate a certain point on the tape. When memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0:00:00.

  • Page 77: Tracking

    Playback Playback Features (Continued) TRACKING Buttons Tracking During playback, streaks may appear in the playback picture. Press either TRACKING button to move the streaks up or down and out of the picture. Note: The TRACKING buttons may have no • During stop-action playback, pressing effect on tapes recorded on other camcorders one TRACKING button may reduce or VCRs.

  • Page 78: Playback On Tv (Or Vcr) With Audio/Video In Jacks

    Playback Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks To connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks, you will need an optional audio/video cable such as VH83 shown on page 86. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.
  • Page 79 Playback Playback Operation and How to Copy Tapes on the VCR 1. A. Camcorder connected directly to • During playback, use the playback TV: Turn on the TV and tune it to features on pages 73-75. the video input channel. 4.

  • Page 80: Compatible Vcr

    Playback Model CC637 Only: Programming Remote to Operate Compatible VCR The CC637’s remote can be programmed to operate the camcorder and the basic functions of a compatible VCR for easy tape editing. After the remote has been programmed, you can control the VCR by pressing and holding VCR while pressing one of the function buttons (REW, F FWD, STOP, PAUSE, or PLAY).
  • Page 81 Playback Refer to the chart below to find the code numbers that correspond to your brand of VCR. Try each two-digit code number separately until you find the correct one. Press the buttons on the remote corresponding to the code numbers. 1.
  • Page 82 Playback Model CC637 Only: Copying Tapes Using Programmable Synchro Edit You can program the camcorder with up to eight segments of a prerecorded tape. The camcorder will automatically copy these segments on a compatible VCR. 5. Locate the beginning of the first START /STOP segment you want to program.

  • Page 83: Copying Tapes Using Programmable Synchro Edit

    Playback Copying Tapes Using Programmable Synchro Edit (continued) IN/OUT Button SP•SLP IN/OUT COUNTER R/M TRACKING RANDOM MAN.W.BAL EDIT CANCEL RANDOM EDIT EDIT Button EDIT – SEARCH STOP PLAY/PAUSE EDIT Button CANCEL Button Back of Optional Connected Audio/Video White to TV Cable Audio Plug AUDIO...
  • Page 84 Playback Playback on a TV Without Audio/Video Inputs To connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82 or VH90 shown on page 86. If your TV has AUDIO and VIDEO IN jacks (or is connected to a VCR), refer to pages 76-77.
  • Page 85 Playback Playback Operation 5. Press PLAY/PAUSE on the camcorder. 1. Set the CH3/CH4 switch on the RF output adapter to channel 3 or 4. • During playback, use the playback features described on pages 73-74. 2. Turn on the TV, and tune it to the same channel you selected with the •...

  • Page 86: Optional Accessories

    Optional Accessories We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your compact VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better. These accessories are designed to make the process of recording and watching your videos more enjoyable.
  • Page 87 Optional Accessories FB1260 and FB120 Rechargeable Using the Optional AC088 Tripod Batteries Mounting the camcorder on a tripod, such as AC088, will keep the camcorder steady and produce excellent video results. This tripod’s fluid-effect head provides smooth camera pan and tilt. The quick- These rechargeable nickel-cadmium release mount makes it easy to attach or batteries are designed specifically for long...
  • Page 88 Optional Accessories 1CVA147C RF Output Adapter VH54 Cable Transformer This 75-to-300 ohm transformer is used to connect a standard 75-ohm antenna cable (such as VH82 or VH90) to the 300 ohm This RF output adapter is used with a screw terminals on a TV. coaxial RF cable, such as VH82 or VH90, to connect your camcorder to a standard TV (one without audio/video inputs) for...

  • Page 89: Accessory Order Form

    Accessory Order Form Order Form for Camcorder Model CC635/CC636/CC637 Description Part No. Price Qty. Total Super Lightweight Tripod AC088 $ 39.95 Soft Camcorder Case AC201A $ 39.95 Shoulder Strap ACS091 $ 12.95 Y-Adapter AH25 $ 2.95 AC Battery Charger CPS91 $ 59.95...
  • Page 90 Accessory Order Form Charge your order on your VISA, MasterCard, or Discover Card by filling in below USE YOUR CREDIT CARD ® IMPORTANT: Copy complete account number from your VISA card My card expires: IMPORTANT: Copy complete account number from your MasterCard Copy Number My card above your...
  • Page 91 Accessory Order Form To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail. United States and Canada Orders To place your order by phone, have your Visa, MasterCard, or Discover card ready and call the toll-free number listed below between 8AM and 8PM (EST) Monday through Friday or between 9AM and 5PM (EST) Saturday.

  • Page 92: Built-In Color Enhancement Light

    Recording Built-In Color Enhancement Light The built-in color enhancement light will automatically add more light when needed. The POWER switch must be in CAMERA to operate the video light. Built-In Video Light LIGHT OFF•AUTO•ON Button To Use the Light Set the LIGHT OFF•AUTO•ON switch. •...
  • Page 93 Header Replacing the Bulb We recommend you consult your dealer or Servicenter to replace the bulb. If you replace the bulb, use only part #233430 to replace the entire bulb assembly. Carefully follow the instructions below. Cautions The video light and bulb need to cool for approximately 30 minutes after the camcorder has been used before the bulb assembly is replaced.

  • Page 94: Attaching The Shoulder Strap

    Recording Attaching the Shoulder Strap The camcorder’s shoulder strap is designed to let you carry the camcorder from your shoulder and – when you are ready to shoot – bring the camcorder to shooting position in one quick movement. To Attach the Shoulder Strap 4.

  • Page 95: Information To User

    Information to User interference by one or more of the This equipment has been tested and following measures: found to comply with the limits for a Class B digital device and RF lighting • Reorient or relocate the receiving device, pursuant to Part 15 and Part 18 of antenna.

  • Page 96: Care And Maintenance

    Care and Maintenance Cleaning the Camcorder To clean the camcorder’s exterior, remove any power source connected to Caution: Use of strong cleaning the camcorder and gently wipe it with a products, such as those containing clean soft cloth. alcohol or benzine, may damage the camcorder.

  • Page 97: Proper Care And Storage

    Authorized RCA Camcorder Servicenter. headwheel or tape. • Do not use an adapter/charger or •...

  • Page 98: Trouble Checks

    Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.
  • Page 99 Trouble Checks Trouble Checks and Adjustments • Aim remote at camcorder’s remote control sensor. Camcorder does not • Remote’s lithium cell battery may be installed incorrectly. respond to remote See pages 17 and 22. control • Remote control’s lithium cell battery may need replacing. •...
  • Page 100 Error number • Try disconnecting power source. Wait ten seconds and then (E01, E02, E03, connect power source again. If error number does not etc.) appears in disappear from viewfinder, consult your Authorized RCA viewfinder Camcorder Servicenter.

  • Page 101: Customer Assistance And Service

    Customer Assistance and Service Thomson provides a toll-free telephone You can reach Thomson at the following number: number to help you with any problems you may encounter with your camcorder. 800-283-6503 Many can be diagnosed over the phone, (Toll free inside U.S.A.) and if necessary, a replacement unit can Our toll-free Camcorder number be shipped to you.

  • Page 102: Limited Warranty

    Limited Warranty What your warranty covers: which validates date of purchase to • Any defect in materials or the exchange location and you will be workmanship. provided the new or refurbished unit. 4. If the repairs were covered by your For how long after your purchase: warranty, you will not be billed.
  • Page 103 336-1900 for the Authorized RCA eligibility. Camcorder Servicenter nearest you. • A brief note describing your • Take your unit to the Authorized RCA camcorder problem. Camcorder Servicenter of your choice. • Your name, address and phone • Show the Authorized RCA Camcorder number.

  • Page 104: Specifications

    Specifications General Viewfinder Power requirement: 6VDC Model CC635: .5" Black & White Power consumption: Model CC636: .55" Color – 113K Model CC635: 5.7 watts (normal) Pixel Model CC636: 5.9 watts (normal) Model CC637: .55" Color – 113K Model CC637: 5.9 watts (normal) Pixel Weight: Model CC635: 1.74 lbs.
