Summary of Contents for RCA CC638/639

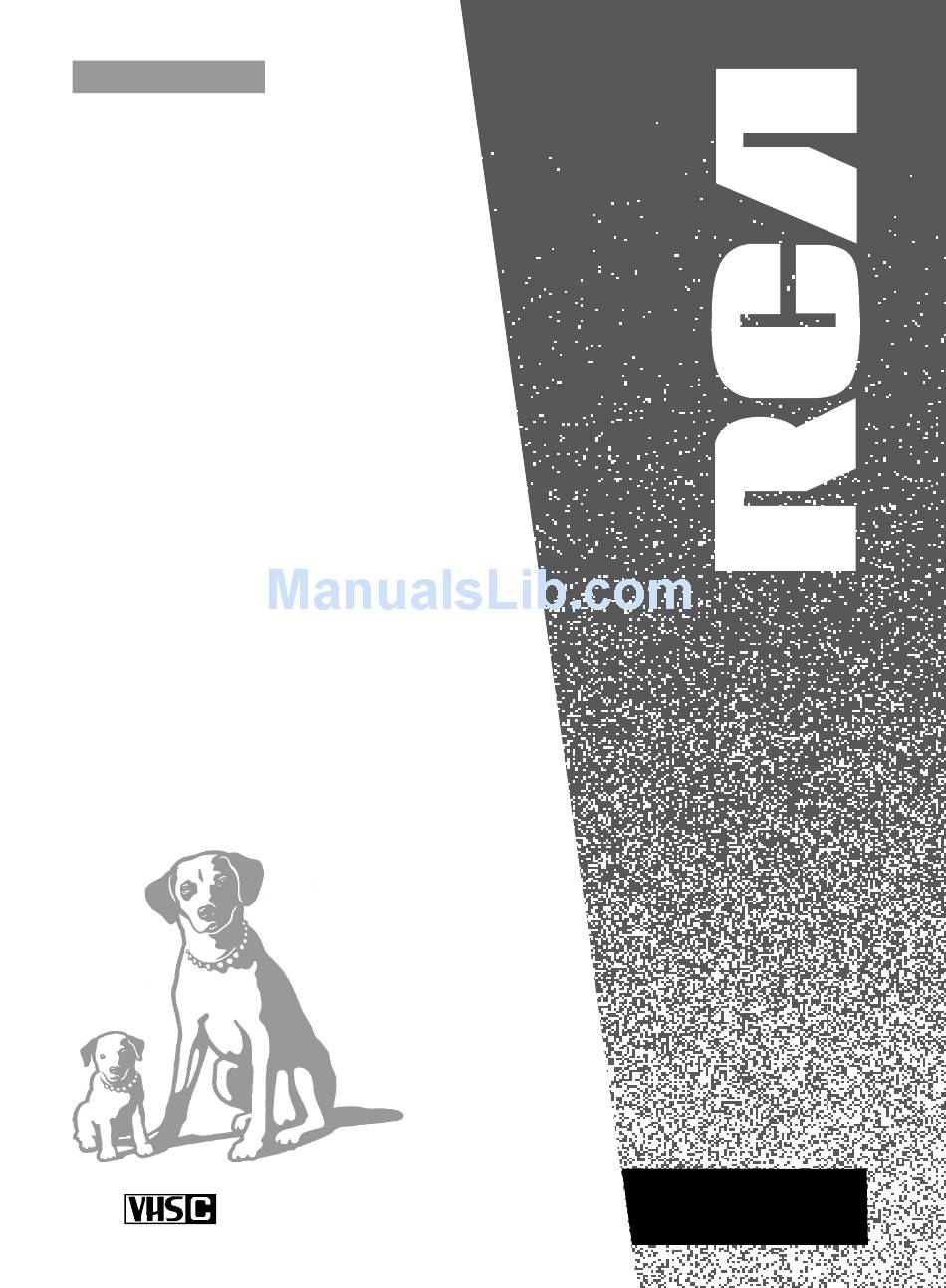

  • Page 1 CC638/639 USER‘S GUIDE C A M C O R D E R...

  • Page 2: Important Safety Information

    To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this camcorder. Other types of batteries may burst causing damage and personal injury. FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

  • Page 3: Table Of Contents

    Assistance We want to make sure you enjoy your new camcorder. If you have any questions, call: Camcorder Exchange Warranty...800-283-6503 (pages 106-107) Customer Service...800-336-1900 (page 105) Accessories...800-338-0376 (pages 92-97) Table of Contents Safety Information ...i Product Registration ...i Table of Contents ...1-2 First-Time Operation •...

  • Page 4: Table Of Contents

    Table of Contents Recording (continued) • Snapshot Feature ...40-41 • Electronic Image Stabilizer (EIS)...42 • Auto Pause Feature...43 • Electronic Indexing ...43 • White Balance ...44-45 • Recording Menu • To Display Recording Menu...46 • Tape Remaining Display...47 • Set Tape Length ...47 •...

  • Page 5: Unpack The Camcorder And Accessories

    • Save the packing materials and box in case you ever need to ship or store your camcorder. • The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your dealer immediately. Model CC638 or CC639* *Your camcorder may look slightly different from the one shown in this manual.

  • Page 6: Attach The Adapter/Charger

    DC OUT jack on the adapter/charger. B. Connect the other end of the DC cable to the DC in jack on the camcorder as shown above. C. Plug the adapter/charger’s plug into an operating outlet. The adapter/ charger’s POWER indicator will...

  • Page 7: Adjust The Handstrap To Fit Your Hand

    Indicator • The power indicator will light and the camcorder will enter record pause. viewfinder when the camcorder is in record pause. • The position of this switch tells the camcorder whether you want to record (CAMERA), turn the power off (OFF), or play back tapes (VCR).

  • Page 8: Select A Recording Speed

    SLP has slightly more picture noise in normal playback. SP•SLP Switch Note: The length of the tape you are using must be selected in the recording menu for the camcorder to correctly calculate the recording time remaining on the tape. Details are on page 47.

  • Page 9: Set The Mode Select Dial

    First-Time Operation 8. Set the mode select dial to AUTO. • This places the camcorder in the full AUTO mode. • In the AUTO mode, the focus, exposure, and white balance are automatically controlled by the camcorder. • Many of the special effects do not operate in the AUTO mode.

  • Page 10: Turn Off The Camcorder

    • Press and release the thumb trigger again to stop recording. The camcorder is now in the record- pause mode ( PAUSE the viewfinder). Thumb Trigger...

  • Page 11: Review Camcorder's

    First-Time Operation 14. Review camcorder’s operating controls. Microphone Built-in Color Enhancement Light Lens LENS COVER Control MIC Jack Remote Control Sensor Tally Light MENU Button Power Zoom Lever “W” - Wide Angle “T” - Telephoto Viewfinder Eyepiece Focus Control Panel...
  • Page 12 First-Time Operation 14. Review camcorder’s operating controls. Model CC639 Only: B (Bright) and C (Color) Controls on Bottom of Viewfinder See Trouble Checks for details. Shoulder Strap Attachment Ring Clock Cell Compartment Attach Battery Here DC In Jack (Attach AC...

  • Page 13: Operating Controls

    First-Time Operation 14. Review camcorder’s operating controls. SP•SLP Button (Also COUNTER R/M Button) M.W.BAL (Manual White Balance) Button REW Button (Also EDIT SEARCH – Button) TRACKING Buttons SP•SLP COUNTER R/M TRACKING MAN.W.BAL EDIT CANCEL RANDOM EDIT EDIT – SEARCH STOP PLAY/PAUSE...

  • Page 14: Powering Your Camcorder

    Powering Your Camcorder Using the Adapter/Charger to Power Your Camcorder The adapter/charger attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

  • Page 15: Using The Battery To Power Your Camcorder

    Initial charging will take approximately 70 minutes. When fully charged, the battery should supply about 55 minutes of operating time (depending on how much you use the light, zoom, and pause). Conserve battery power by turning the camcorder off during recording breaks.
  • Page 16 Powering Your Camcorder Indicator POWER Indicator Indicator REFRESH Button REFRESH Indicator Caution adapter/charger, do not turn them upside down. The battery may fall off and be damaged or cause injury. Charge the Battery If the DC cable is attached to the DC OUT jack on the adapter/charger, remove its plug.

  • Page 17: Battery Level Indicator

    • As the power is used appear. • When the battery power is almost gone, flashes in the viewfinder. The camcorder will turn off automatically after a few seconds. Place the POWER switch in OFF to turn off the camcorder before replacing the battery.

  • Page 18: Using The Dcc08 Car Cord Adapter

    Cautions: The DCC08 is designed to be used only with vehicles having negative ground electrical systems. Use only car cord adapter DCC08 with this camcorder. Use of any other car cord adapter may damage the camcorder and void your warranty. Power Connector 5.

  • Page 19: Install Battery Cell

    Remote Sensor The remote operates the camcorder by infrared light, so it is protected from electrical and sound interference. However, the remote must be aimed directly at the camcorder’s remote sensor. There cannot be any obstructions between them.

  • Page 20: Buttons

    Model CC639 Only: Remote Control A brief description of Model CC639 remote button’s functions is given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. SNAP SHOT VISS TIME LAPSE ANIM. SELF INT.

  • Page 21: Buttons

    Model CC639 Only: Remote Control F FWD (Fast Forward) Button Camcorder’s POWER switch in CAMERA: • With camcorder in record pause, press and hold F FWD to visually search forward on the tape. Release F FWD to return to record pause.

  • Page 22: Buttons

    Model CC638 Only: Remote Control Model CC638 Only: functions is given here. Many of the buttons perform the same functions as the corresponding controls on the camcorder. The lithium cell must be installed as shown on page 22. ZOOM (T and W) Buttons Camcorder’s POWER switch in...

  • Page 23: Buttons

    START/STOP Button When the POWER switch is in CAMERA, press START/STOP to start and stop recording. Note: If the camcorder is left in record pause for more than five minutes, power will turn off. TIME LAPSE SELF/INT. (Interval) TIME Button...

  • Page 24: Install Battery Cell

    However, the remote must be aimed directly at the camcorder’s remote sensor. There cannot be any obstructions between them. Remote Control Sensor Note: The camcorder may not respond to the remote if its sensor is exposed to direct sunlight or strong artificial light. Back of...

  • Page 25: Recording Tips

    • Use the viewfinder to make sure the camcorder is level while recording or your scenes will appear “tilted”. • Do not bump or tap the camcorder’s microphone while recording because this sound will be recorded. • Include close-ups and snapshots of individuals when taping family outings or group functions.

  • Page 26: Video Cassettes

    Video Cassettes We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not covered under warranty.

  • Page 27: Video Cassettes

    • Store cassettes vertically in their protective cases at normal room temperatures. Do not leave your camcorder or cassettes in a car or outdoors for an extended period. Excessive heat or cold may damage your cassettes.

  • Page 28: Making A Recording

    EIS Button Button 4. Place the POWER (CAMERA/ OFF/VCR) switch in CAMERA. The power indicator will light and the camcorder will enter record pause. appears in the viewfinder. PAUSE 5. Adjust the viewfinder and eyepiece focus control for your vision.
  • Page 29 • Press and release the the thumb trigger again to stop recording. The camcorder is now in record pause. appears in the viewfinder. PAUSE • The camcorder will automatically turn off if it remains in record pause for five minutes.

  • Page 30: Lcd Panel

    Recording LCD Panel The LCD panel on the side of the camcorder displays what the camcorder is doing. Status Indicators The status of the camcorder appears here. • PLAY appears here when the camcorder’s POWER switch is in VCR. • REC appears here when the camcorder’s POWER switch is in...

  • Page 31: Adjust Viewfinder For Convenient Viewing

    The camcorder’s viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. Adjust Viewfinder for Convenient Viewing For convenient viewing, you can slide the viewfinder out from the camcorder and rotate it up and down. Eyepiece Focus Control The eyepiece focus control lets you set the focus of the viewfinder for your personal vision.

  • Page 32: Viewfinder Displays

    The tape speed selected with the SP• SLP button appears here. • Details on page 24. Status Displays • The REC indicator appears when the camcorder is recording. • The indicator appears PAUSE during record pause. Production Effects Indicators The indicator for the production effect selected with the 16X9/AE MODES button appears here.
  • Page 33 Dissolve and the new scene gradually appears as the old one dissolves. • – – appears when you select Auto Select and the camcorder selects one of six different wipes. • Details are on pages 66-67. Change Indicator This indicator will appear to let you...

  • Page 34: Lens Cover

    • LENS COVER: This indicator may flash when the camcorder is used in dark areas — even if the lens cover is open. • AUTO PAUSE appears when the auto pause feature is turned on with the AUTO PAUSE ON/OFF button.
  • Page 35 (condensation) has entered the camcorder. The camcorder will not operate when this indicator appears. Place the camcorder in a warm, dry area until this indicator disappears. Tape Length The tape length (T20, T30, or T40) selected with the Tape Length feature on the recording menu appears here.

  • Page 36: Flying Erase Head

    Servicenter. EDIT SEARCH – and + Buttons POWER Switch in CAMERA Tally Light The tally light lights when the camcorder is recording. The tally light can be turned on or off using the recording menu. See page 59 for details.

  • Page 37: Quick Review

    REC/PAUSE RANDOM ASSEMBLY EDIT Quick Review Feature Press and release EDIT SEARCH – (REW on remote) when the camcorder is in record pause to review the last few seconds of a recording. The POWER switch must be in CAMERA. The camcorder will play back the last...

  • Page 38: Mode Select Dial

    2. Place the mode select dial in AUTO. 3. Press the thumb trigger to start recording. • The camcorder will control the focus, exposure, and white balance for you. Mode Select Dial • The only scene transitions that you can use is the black fader.

  • Page 39: Exposure Control

    Recording Exposure Control When the mode select dial is in AUTO, the camcorder controls the iris for you. Under normal conditions, the camcorder will adjust brightness automatically. You may need to adjust brightness manually when the background is too bright or too dark in comparison with the subject.

  • Page 40: Focus Lock Feature

    Recording Focusing Under normal conditions, the camcorder can adjust focus automatically. Under certain conditions, you may need to focus manually. Auto Focus During auto focus the camcorder will focus automatically on the object located in the center area of the viewfinder.

  • Page 41: Manual Focus

    Recording Manual Focus Under certain conditions, such as those listed, you may need to focus manually. 1. Set the mode select dial to MANUAL. 2. Slide the power zoom lever toward T to zoom in on your subject. To maintain proper focus throughout the zoom range, you must zoom in on the subject before adjusting the focus.

  • Page 42: Snapshot Feature

    SNAPSHOT Button To Add Snapshots to Your Tape 1. Repeatedly press PHOTO EFFECTS on the camcorder to select the type of snapshot you want. • Select Pin-Up to have the scene appear with a white dimensional frame on a blue background.

  • Page 43: Snapshot Feature

    2. Press and release the SNAPSHOT button. • If the camcorder is in record pause, the sound effect of a shutter closing is recorded with a four second snapshot. The camcorder then returns to record/pause.

  • Page 44: Electronic Image Stabilizer (Eis)

    Recording Electronic Image Stabilizer (EIS) The electronic image stabilizer helps compensate for unstable images caused by camera shake that can be created by recording out of a moving vehicle or while walking. EIS Button To Turn On EIS 1. Place the POWER switch in CAMERA. 2.

  • Page 45: Auto Pause Feature

    Recording Auto Pause Feature The auto pause system places the camcorder in record pause when it is tilted approximately 90 degrees up or down or turned upside down. To Turn On the Auto Pause System • Slide AUTO PAUSE OFF/ON switch to ON.

  • Page 46: Manual White Balance

    Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder “sees” and records the light source in the scene you wish to record. Your camcorder is equipped with automatic white balance. However,...
  • Page 47 Recording Press the MAN.W.BAL (Manual White Balance) Button to Display in Viewfinder Auto White Balance A. Point camcorder at a white, flat object such as a piece of white paper. B. Press and hold MAN.W.BAL for at least three seconds.

  • Page 48: Recording Menu

    Recording Recording Menu The main recording menu lets you select and set several recording features: Shift Zoom (digital zooming), Tele Macro (close-up), Gain Up (light adjustment), Color Filter, Tape Length, Title, and Date/Time. The Sub Menu lets you turn the tally light on or off, set interval and recording times for self-timer, animation, and time- lapse recording, and set an ID number.

  • Page 49: Tape Remaining Display

    The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The Tape Length feature in the recording menu must be set correctly for the length tape you are using before the camcorder can correctly calculate time remaining.

  • Page 50: Zooming

    Zooming You can zoom in and out for close ups or wide-angle shots just by sliding the zoom lever on the camcorder or pressing the button on the remote. The camcorder can automatically focus when you zoom at most distances.

  • Page 51: Zooming

    Recording Recording Menu — Tele Macro Zooming Feature To Turn on Tele Macro 1. Make sure the mode select dial is in MANUAL. 2. Press the MENU button. The recording menu will appear in the viewfinder. Shift Zoom Tele Macro Gain Up NOR.

  • Page 52: Gain Up (Slow Shutter)

    Recording Recording Menu — Gain Up (Slow Shutter) The gain up feature allows you to take bright and natural recordings even in areas with low or poor lighting. To Set Gain Up 1. Make sure the mode select dial is in MANUAL.

  • Page 53: Color Filter

    Recording Recording Menu — Color Filter This feature allows you to record adding a red or blue tint to the recording. To Set Color Filter 1. Make sure the mode select dial is in MANUAL. 2. Press the MENU button. The recording menu will appear in the viewfinder.

  • Page 54: Titler

    Recording Recording Menu — Title The title feature lets you choose one of eight preset titles or create your own title — up to 18 characters. The clock cell battery must be installed as shown on page 55 before you can create or store your own title. To Add a Preset Title to Your Recordings 1.
  • Page 55 Recording To Create Your Own Title 1. Make sure the mode select dial is in MANUAL. 2. Press the MENU button. The recording menu will appear in the viewfinder. Shift Zoom Tele Macro Gain Up Color Filter NOR. Tape Length Title Date/Time Sub Menu...

  • Page 56: Set The Date And Time

    (including AM and PM), and minutes. 8. Press to highlight Set. 9. Press the MENU button. The camcorder’s internal clock will start and you will return to the recording menu. Notes: Press MENU twice to start the clock and remove all the menus from the viewfinder.

  • Page 57: Install The Clock Lithium Cell

    Recording Date/Time Display — Install the Clock Lithium Cell The clock cell indicator turn on the camcorder if the cell has not been installed or needs to be replaced. Insert object here to remove cell. Clock Cell (+ Side Facing Out)

  • Page 58: Date/Time Display

    Recording Date/Time Display The clock cell must be installed and the date and time set before they can be selected and recorded. To Select the Date or Date and Time You Want to Record On Your Tape 1. Attach a power supply and place POWER switch in CAMERA.

  • Page 59: You Want To Record

    NOV 18.96 Date and Time Display To Record the Date or Date and Time on Your Tape 1. Place the camcorder in record pause. 2. Repeatedly press the DATE/TIME button to display the date, time, or date and time you have previously stored in the viewfinder.

  • Page 60: Sub Menu

    Recording Recording Menu — Sub Menu The sub menu lets you turn the tally light on or off, set interval and recording times for the self-timer, time-lapse recording, or animation recording. You can also set a JLIP ID number for a device (such as a personal computer). Tally Light To Change a Feature in the Sub Menu 1.

  • Page 61: Tally Light

    JLIP ID NO. Set the JLIP ID NO. The camcorder has a JLIP (Joint Level Interface Protocol) connector that may be used in the future to connect a device, such as a home computer. To Select a JLIP ID NO.

  • Page 62: Self Timer

    Recording Self-Timer The self-timer lets you set the camcorder to delay recording so you can be in the scene when recording begins. MENU Button Tally Light Mode Select , and Dial In Buttons (On MANUAL Mode Select Dial) To Set the Self-Timer 1.

  • Page 63: Self Timer

    PAUSE CANCEL RANDOM ASSEMBLY EDIT Model CC639’s Remote 1. Place the POWER dial on the camcorder in CAMERA. The power indicator will light. 2. Press the TIME LAPSE SELF INT./TIME button. 10.Press MENU to exit the menu. the amount of delayed recording time appear in the viewfinder.

  • Page 64: Animation Recording

    • Select 1/4S, 1/2S, 1S, or 5S to have the camcorder record for 1/4 second, 1/2 second, one second, or five seconds. • Select OFF to turn off the recording time.

  • Page 65: Animation Recording

    PLAY PAUSE CANCEL RANDOM ASSEMBLY EDIT Model CC639’s Remote 1. Place the POWER dial on the camcorder in CAMERA. The power indicator will light. 2. Press the TIME LAPSE ANIM. REC/TIME button. 11.Press the thumb trigger to start recording. Note: The recording stops automatically after the selected period of recording time.

  • Page 66: Time-Lapse Recording

    • Select 1/4S, 1/2S, 1S, or 5S to have the camcorder record for 1/4 second, 1/2 second, one second, or five seconds. • Select OFF to turn off the recording time.

  • Page 67: Time-Lapse Recording

    15.Press the thumb trigger to start recording. Notes: The camcorder will start and stop recording the selected amount of time. The tally light flashes with the flash speed increasing five seconds before recording begins.

  • Page 68: Fading Or Wiping In And Out

    The picture gradually appears on a black or white screen and disappears leaving a black or white screen. The speed of the fade or wipe is automatically controlled by the camcorder. To Fade or Wipe 1. Place the POWER dial in CAMERA.
  • Page 69 * The Dissolve and Auto Select modes require a previous scene stored in memory. The indicator for the mode selected will flash in the viewfinder if there is no stored image. You must stop and start recording within five minutes without turning off the camcorder’s power or the stored scene will be erased.

  • Page 70: Production Effects

    Recording Production Effects You can add a professional touch to your recordings when you use some of the production effects while recording. 16X9/AE MODES Button To Use a Production Effect 1. Place the POWER dial in CAMERA. The power indicator will light. 2.
  • Page 71 Function The camcorder records black bars at the top and bottom of the picture to produce the wide-screen effect. This is also known as “letter box” recording. Use when you play back your recordings on a 16X9 Gives your recording a brownish tint like old photos.

  • Page 72: Audio Dubbing (Remote Only)

    3. Locate the place you want the audio dubbing to stop and press PLAY/PAUSE (PAUSE on remote). 4. Press COUNTER R/M for more than two seconds on the camcorder to set the time counter back to 0:00:00. COUNTER R/M Button PLAY/PAUSE...

  • Page 73: Audio Dubbing

    PAUSE PLAY CANCEL Button RANDOM ASSEMBLY EDIT Model CC639’s Remote 7. Press and hold A.DUB while pressing and releasing PAUSE on the remote to place the camcorder in audio dub standby. appears in the viewfinder. SNAP START SHOT /STOP VISS A.

  • Page 74: Edit Insert (Remote Only)

    3. Locate the place you want the edit insert to stop and press PLAY/PAUSE (PAUSE on remote). 4. Press COUNTER R/M for more than two seconds on the camcorder to set the time counter back to 0:00:00. COUNTER R/M Button PLAY/PAUSE...

  • Page 75: The Camcorder

    Button RANDOM ASSEMBLY EDIT Model CC639’s Remote 7. Press and hold INSERT while pressing and releasing PAUSE on the remote to place the camcorder in edit insert standby. appear in the viewfinder. PAUSE To check your tape positioning, you can press EDIT SEARCH – or + on the camcorder.

  • Page 76: Built-In Color Enhancement Light

    Note: When the light is turned on, the camcorder may turn off if the battery’s power is low even though the battery level indicator is not flashing. Cautions:...

  • Page 77: Replacing The Bulb

    A dirty bulb may cause smoke and have a reduced service life. To Replace the Bulb Assembly 1. Pull on the sides of the bulb assembly and remove it from the camcorder as shown. 2. Place the the new bulb assembly into the camcorder as shown. Bulb Assembly...

  • Page 78: Attaching The Shoulder Strap

    Attaching the Shoulder Strap The camcorder’s shoulder strap is designed to let you carry the camcorder from your shoulder and – when you are ready to shoot – bring the camcorder to shooting position in one quick movement. To Attach the Shoulder Strap 1.

  • Page 79: Traveling Tips

    • Write down your camcorder’s serial number and keep it separate from the camcorder when traveling. If your camcorder is lost or stolen, you will be able to identify it. • Use extra care to avoid damage to your camcorder and accessories when operating them at a beach or pool.

  • Page 80: Playback

    Playback Using the Cassette Adapter The camcorder uses a smaller size cassette, but records in standard VHS format. The cassette adapter allows you to play your VHS-C cassettes in a VCR just like other standard VHS cassettes. Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the VHS VCR like a normal VHS cassette.
  • Page 81 Playback Load Detector 4. Gently close the cassette compartment lid until it locks into place. Make sure the cassette reel area under the adapter is free to turn while the cassette is loading. Note: You should hear a whirring sound while the tape loads.

  • Page 82: Viewfinder Playback

    Playback Viewfinder Playback Viewfinder playback is the simplest way to watch tapes using the camcorder. EJECT Button To Play Back a Tape 1. Place POWER switch in VCR. The power indicator will light. 2. Slide EJECT and insert the cassette you want to play back.

  • Page 83: Playback Features

    • Press STOP to stop the tape. Caution: Pause is designed for momentary interruptions and should not be used for an extended period of time. If the camcorder remains in pause for more than five minutes, it will automatically enter the stop mode and then turn off to prevent excessive tape wear.

  • Page 84: Time Counter

    Playback Playback Features (Continued) EJECT Button Time Counter The time-counter display shows the actual time elapsed when playing back a segment of tape. The memory-stop feature helps locate a certain point on the tape. When memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0:00:00.

  • Page 85: Tracking

    Playback Playback Features (Continued) Tracking During playback, streaks may appear in the playback picture. Press either TRACKING button to move the streaks up or down and out of the picture. • During stop-action playback, pressing one TRACKING button may reduce picture “jitter”...

  • Page 86: Playback On Tv (Or Vcr) With Audio/Video In Jacks

    VH83 shown on page 94. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.
  • Page 87 3. Press PLAY/PAUSE. • If noise bars appear on the screen, press TRACKING – or +. Viewing What the Camcorder is Seeing (or Recording) 1. A. Camcorder connected directly to TV: Turn on the TV, and tune it to the video input channel.

  • Page 88: Programming Remote To Operate

    Model CC639 Only: Programming Remote to Operate Compatible VCR The CC639’s remote can be programmed to operate the camcorder and the basic functions of a compatible VCR for easy tape editing. After the remote has been programmed, you can control the VCR by pressing and holding VCR while pressing one of the function buttons (REW, F FWD, STOP, PAUSE, or PLAY).
  • Page 89 Playback Refer to the chart below to find the code numbers that correspond to your brand of VCR. Try each two-digit code number separately until you find the correct one. Press the buttons on the remote corresponding to the code numbers. 1.

  • Page 90: Mable Synchro Edit

    Playback Model CC639 Only: Copying Tapes Using Programmable Synchro Edit You can program the camcorder with up to eight segments of a prerecorded tape. The camcorder will automatically copy these segments on a compatible VCR. SNAP START SHOT /STOP VISS...

  • Page 91: Copying Tapes Using Programmable Synchro Edit

    VCR’s controls. Note: The remote must be programmed for your brand of VCR as shown on pages 86-87. 12. Press EDIT on the camcorder. The programmed scenes will be copied. Notes: Keep the remote aimed at the VCR’s remote sensor.

  • Page 92: Playback On A Tv Without Audio/Video Inputs

    Playback Playback on a TV Without Audio/Video Inputs To connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82 or VH90 shown on page 94. If your TV has AUDIO and VIDEO IN jacks (or is connected to a VCR), refer to pages 84-85.
  • Page 93 Viewing What the Camcorder Is Recording 1. Turn on the TV and tune it to channel 3 or 4. When the camcorder is used as a camera, turn the TV’s volume down to prevent a high-pitched squeal caused by feedback.

  • Page 94: Optional Accessories

    Optional Accessories We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your compact VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better.
  • Page 95 Do not transport the camcorder attached to the tripod. When attaching your camcorder to a tripod, be careful not to force the tripod screw into the camcorder’s tripod mounting hole. The tripod screw should not protrude into the camcorder more than approximately three-eighth (3/8) inch.
  • Page 96 1CVA147C RF Output Adapter This RF output adapter is used with a coaxial RF cable, such as VH82 or VH90, to connect your camcorder to a standard TV (one without audio/video inputs) for playback. If your antenna cable is the flat...

  • Page 97: Accessory Order Form

    Accessory Order Form Order Form for Camcorder Model CC638/CC639 Description Super Lightweight Tripod Soft Camcorder Case Shoulder Strap Y-Adapter AC Battery Charger Car Cord Adapter Rechargeable Battery (Extended) Rechargeable Battery (Standard) 75-300 Cable Transformer Coaxial RF Cable Audio/Video Cable Coaxial RF Cable...
  • Page 98 Accessory Order Form Charge your order on your VISA, USE YOUR CREDIT CARD IMPORTANT: Copy complete account number IMPORTANT: Copy complete account number Copy Number above your name on MasterCard IMPORTANT: Copy complete account number AUTHORIZED SIGNATURE Prices are subject to change without notice. Print or type your name and address clearly.
  • Page 99 Accessory Order Form To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail. United States and Canada Orders To place your order by phone, have your Visa, MasterCard, or Discover card ready and call the toll-free number listed below between 8AM and 8PM (EST) Monday through Friday or between 9AM and 5PM (EST) Saturday.

  • Page 100: Trouble Checks

    Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.
  • Page 101 • Subject was too far from camcorder. • If the dew indicator ( ) flashes in the viewfinder, there is moisture in the camcorder. Wait until this indicator no longer appears before operating the camcorder. • Subject is dark or behind glass. Auto-focus may not work under these conditions.
  • Page 102 Trouble Checks Trouble Checks and Adjustments Viewfinder displays • Lens is smudged, and image appears unfocused. are out of focus • Eyepiece focus control is misadjusted. • Model CC639: The small controls on the bottom of the Picture is too dark •...

  • Page 103: Trouble Checks

    Error number • Try disconnecting power source. Wait ten seconds and then (E01, E02, E03, etc.) appears in viewfinder the subject. connect power source again. If error number does not disappear from viewfinder, consult your Authorized RCA Camcorder Servicenter.

  • Page 104: Care And Maintenance

    Cleaning the Camcorder’s Lens To clean the camcorder’s lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for use on camera lens. Improper cleaning may scratch the lens.

  • Page 105: Proper Care And Storage

    • Do not aim your camcorder at the sun or other bright objects. • Do not leave your camcorder in direct sunlight for extended periods of time.

  • Page 106: Information To User

    Information to User This equipment has been tested and found to comply with the limits for a Class B digital device and RF lighting device pursuant to Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 107: Customer Assistance And Service

    RA number over the phone. They will also provide you with instructions on where and how to return your camcorder. Write the number in large, clear characters on the outside of the box. To avoid confusion and...

  • Page 108: Limited Warranty

    • One year for parts. What we will do: During the initial 90 days • Exchange your camcorder with a new or, at our option, a refurbished unit or at your option, repair your camcorder at no cost to you.
  • Page 109 • Check with your dealer or call 1-800- 336-1900 for the Authorized RCA Camcorder Servicenter nearest you. • Take your unit to the Authorized RCA Camcorder Servicenter of your choice. • Show the Authorized RCA Camcorder Servicenter representative your sales receipt or other, evidence of purchase.

  • Page 110: Specifications

    Specifications General Power requirement: 6VDC Power consumption: Model CC638: 5.7 watts (normal) Model CC639: 5.9 watts (normal) Weight: Model CC638: 1.74 lbs. (800g) Model CC639: 1.7 lbs. (780g) Dimensions – Including Viewfinder Model CC638: 4-3/8"(W) x 4-1/2"(H) x 9"(D) 111 (W) x 113 (H) x 226(D) mm Model CC639: 4-3/8"(W) x 4-1/2"(H) x 8-1/2"(D) 111 (W) x 113(H) x 206(D) mm...

  • Page 111: Index (Alphabetical)

    Camcorder, Powering ..12-16 Camcorder, Turning On ... .5 Camcorder, Unpacking ... . .3 CAMERA/OFF/VCR Switch .
  • Page 112 Index Controls, Camcorder ... .9-11 Copying Tapes ..84-85,86-89 COUNTER R/M Button ..11,70,72,82 Customer Assistance ..1,3,105,Back Cover —D—...
  • Page 113 ..42,44,56,60-70,72,80,88-89 Powering the Camcorder ..12-16 Preset Titles ....52 Problem Solving .
  • Page 114 Index —Q— Quick Review Feature ... .35 —R— RANDOM ASSEMBLY EDIT Buttons ... . .18-19,88-89 Indicator ..8,27,30 REC/PAUSE Button .
  • Page 115 Tripod, Using ....93 Trouble Checks ....98-101 Turning On the Camcorder ..5 —U—...
  • Page 116 Need Assistance? We want to help! U.S. Consumers: Camcorder Exchange Warranty ..800-283-6503 Customer Service ....800-336-1900 Accessories .....800-338-0376 Canadian Consumers: English .

This manual is also suitable for:

Cc638Cc639

Table of Contents
