Extron electronics Mini High Resolution Halogen-Free Cable MHRHF-5/150 Specification Sheet

MHRHF-5
Five Conductor MHR - Mini High Resolution
Halogen-Free Cable
FeatuRes
• International Bulk Cable for use in Europe — The Extron MHRHF-5 Halogen-Free
cable features five mini high resolution coax conductors wrapped in a halogen-free
jacket that meets specific European safety code requirements. It is ideally suited for use
in underground tunnel construction and railway environments where the concern is the
introduction of contaminants into the air in the event of a fire.
• Five 26 AWG, 75 ohm coaxial conductors in a single jacket — This mini high
resolution cable includes five 26 AWG, 75 ohm coaxial color-coded conductors.
Each conductor is individually double-shielded with foil and tinned copper serve to
reduce interference.
• High resolution video signal distribution — Ligher, smaller in diameter, and more
convenient to install than standard coaxial cable, Extron MHRHF-5 Halogen-Free cable
offers excellent performance for high resolution video signal distribution. The cable
is sweep tested from .3 Mhz to 1300 Mhz.
• LSFOH Low Smoke and Fumes Zero Halogen jacket meets IEC flame, smoke &
corrosivity tests — The MHRHF-5 Halogen-Free cable is LSFOH Low Smoke & Funes
Zero Halogen cable that passes IEC 332-3 flame test, the IEC 61034 smoke test,
and the IEC 754-1 corrosivity test.
• Spools of 150 meters & 300 meters
DesCRiPtion

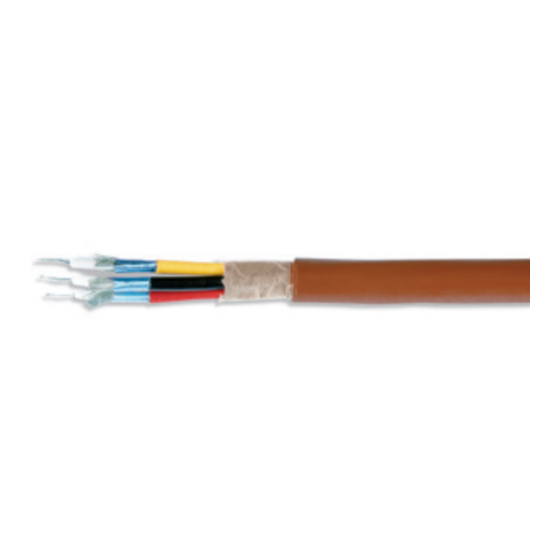

The Extron MHRHF-5 Cable is a five conductor coaxial cable wrapped in a halogen-free jacket.
The MHRHF-5 Halogen-Free Cable is a LSFOH - Low Smoke & Fumes Zero Halogen cable that
passes the IEC 332-3 flame test, the IEC 61034 smoke test, and the IEC 754-1 corrosivity test,
so it is ideal for meeting specific European safety code requirements. Applications for this cable
include underground tunnel construction and railway environments where a primary concern is
the introduction of contaminants into the air in the event of a fire.
MHRHF-5 Halogen-Free Cable is ideal for applications using RGB signals, such as routing
computer-video signals via interfaces, switchers, or distribution amplifiers to projectors
or monitors. This cable is easier to pull than multiple, single-BNC cables. The MHRHF-5
Halogen-Free Cable carries red, green, blue, and separate horizontal and vertical sync on
five conductors. Each conductor is a 26 AWG, 75 ohm, coaxial conductor, color-coded, and
wrapped in a single jacket.
MoDel
MHRHF-5/150
MHRHF-5/300
706
VeRsion DesCRiPtion
150 m spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
300 m spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
M H r - M I n I H I g H r e s o l u t I o n C a B l e s

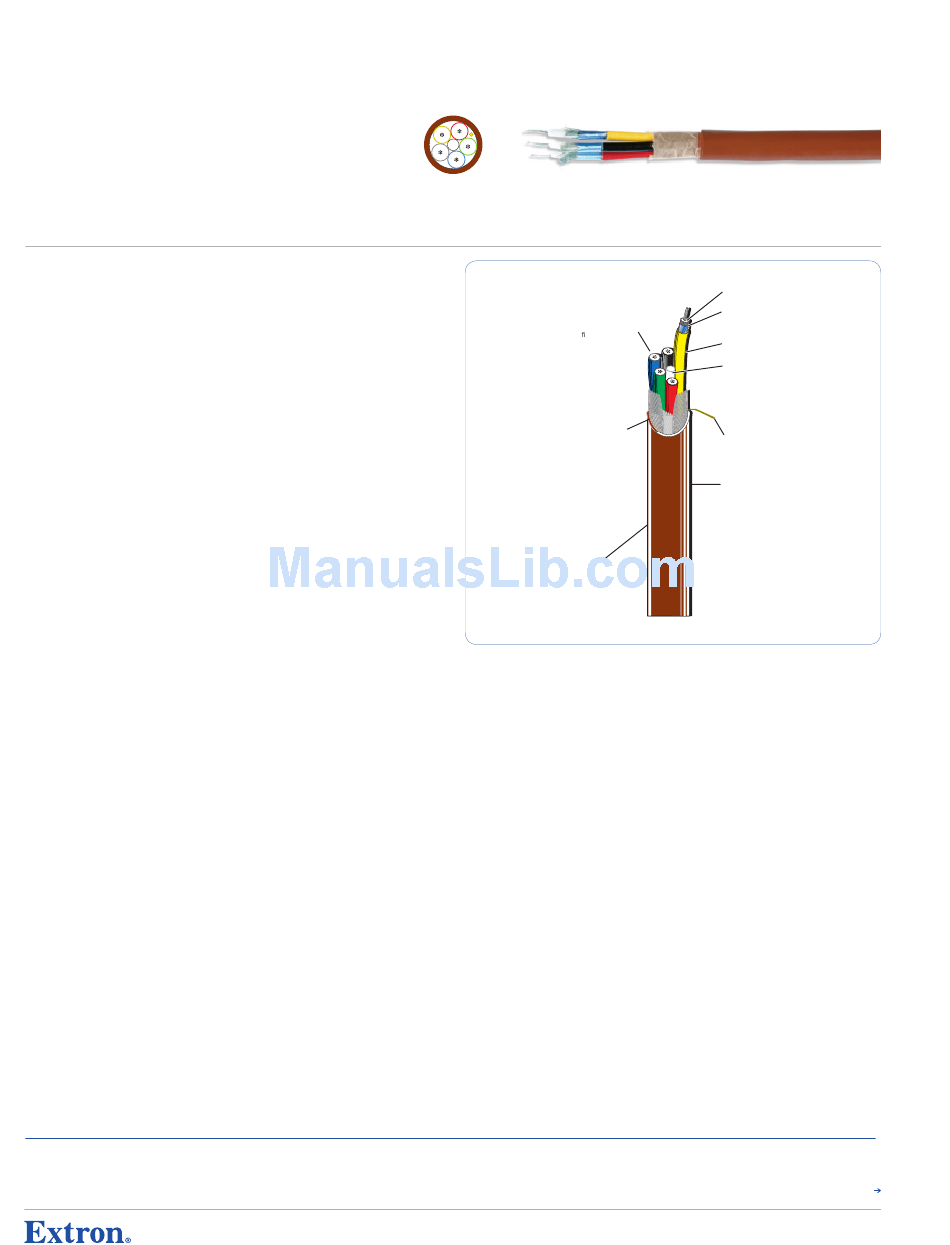

Five Color-Coded 26 AWG
Stranded Coax Conductors
For easy identi cation
Fiber Wrap
MHRHF-5
Five Conductor
Mini High Resolution
Halogen-Free Cable
USA East USA East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
Polyolefin Foam
Double-Shielded Foil
and Copper Braid
To reduce interference
Sheath
Stranded Filler
Maintains tight bundle to
eliminate shaft and twist
Ripcord
To reduce cable damage
during installation
SuperFlex Jacket
Allows for easy installation
Halogen-Free
Meets European safety
standards
