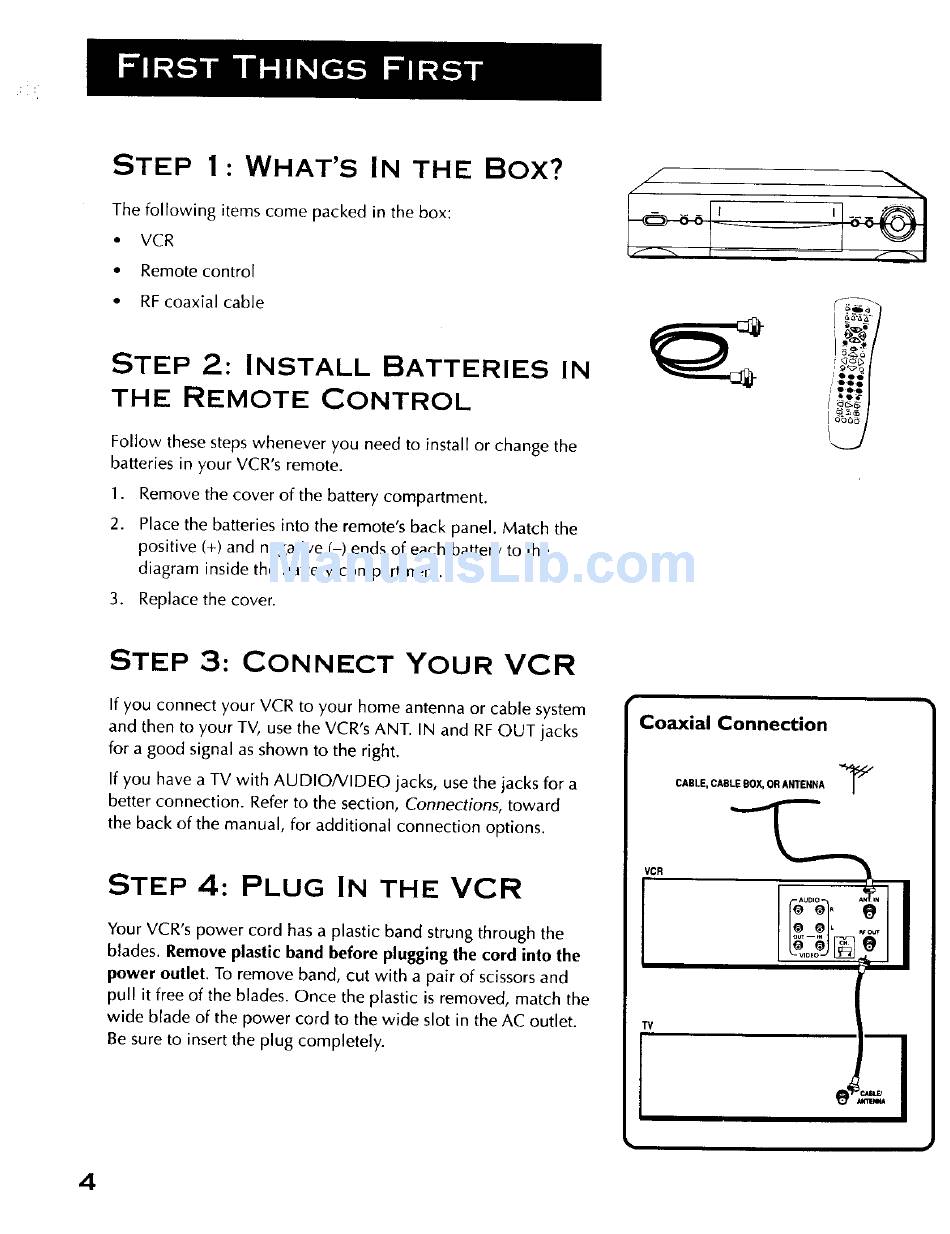

STEP 1:
WHAT'S IN THE BOX?
The following items come packed in the box:
• VCR
• Remote control
• RF coaxial cable
STEP 2: INSTALL BATTERIES IN
THE REMOTE CONTROL
Follow these steps whenever you need to install or change the
batteries in your VCR's remote.
1. Remove the cover of the battery compartment.
2. Place the batteries into the remote's back panel. Match the
positive (+) and negative (-) ends of each battery to the
diagram inside the battery compartment.
3. Replace the cover.
! _.,ii
,." ._ i
, *,+Q 4,
STEP 3: CONNECT YOUR
VCR
If you connect your VCR to your home antenna or cable system
and then to your TV, use the VCR's ANT. IN and RF OUT jacks
for a good signal as shown to the right.
If you have a TV with AUDIO/VIDEO jacks, use the jacks for a
better connection. Refer to the section, Connections, toward
the back of the manual, for additional connection options.
STEP 4: PLUG IN THE
VCR
Your VCR's power cord has a plastic band strung through the
blades. Remove plastic band before plugging the cord into the
power outlet. To remove band, cut with a pair of scissors and
pull it free of the blades. Once the plastic is removed, match the
wide blade of the power cord to the wide slot in the AC outlet.
Be sure to insert the plug completely.
Coaxial Connection
CABLE, CABLEBOX,OR ANTENNA
VCR
_F
,o,N
4
