Porter-Cable CPL55GH8W Instruction Manual

Porter-Cable CPL55GH8W Instruction Manual

Oillube compressor
Hide thumbs Also See for CPL55GH8W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Enlarged version

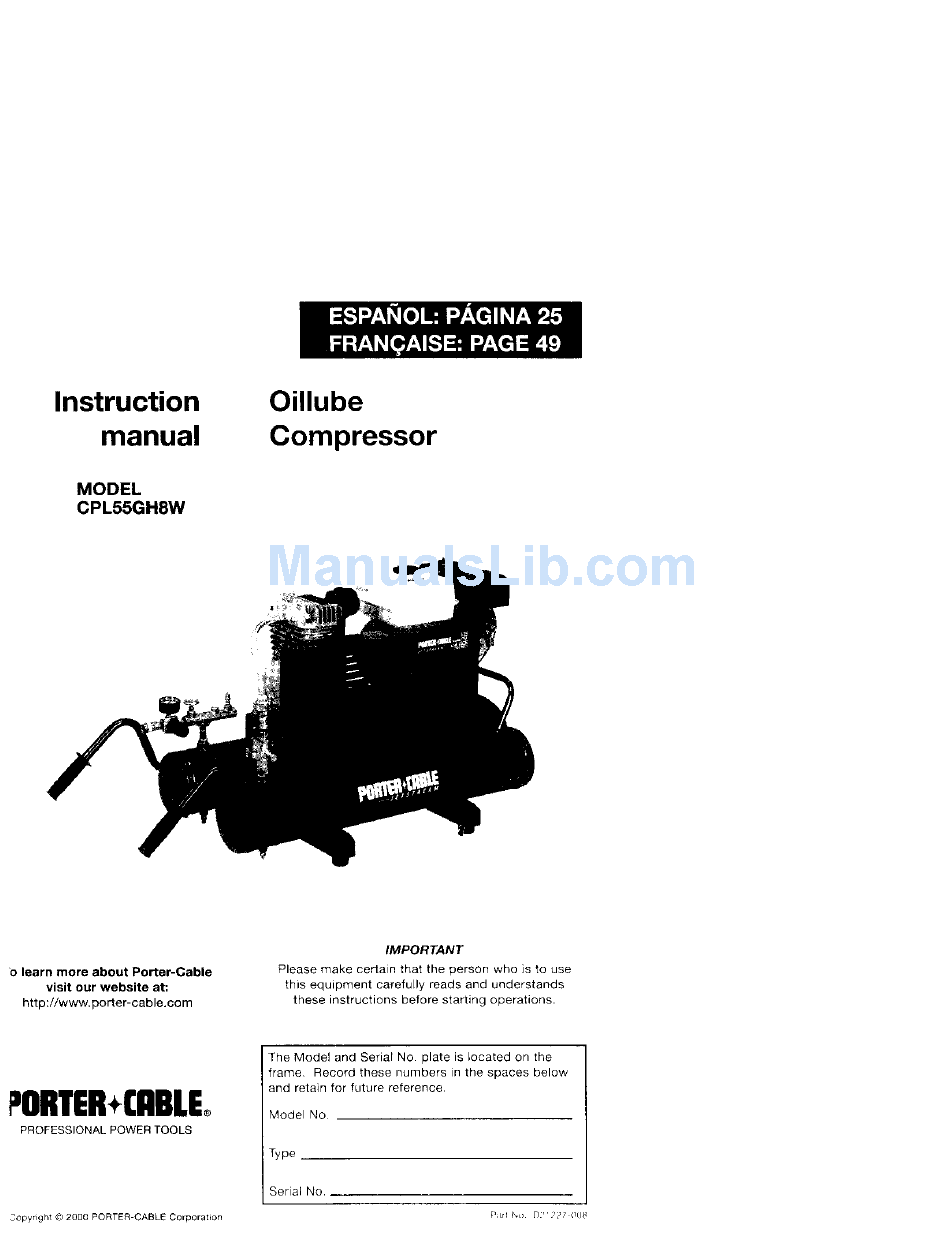

Instruction
manual
MODEL
CPL55GH8W
Oillube
Compressor
o learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
IMPORTANT
Please make certain that the person who is to use
this equipment
carefully reads and understands
these instructions
before starting operations.
PORTER+CRBLEo
PROFESSIONAL
POWER TOOLS
The Model and Serial No plate is located on the
frame
Record these numbers in the spaces below
and retain for future reference
Model No
Type
Serial No
3opyright
© 2000 PORTER
CABLE Corporation
P;trt N¢_ D:":
2Z 008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPL55GH8W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Porter-Cable CPL55GH8W

Summary of Contents for Porter-Cable CPL55GH8W

  • Page 1 Oillube manual Compressor MODEL CPL55GH8W IMPORTANT Please make certain that the person who is to use o learn more about Porter-Cable this equipment carefully reads and understands visit our website at: these instructions before starting operations. http://www.porter-cable.com The Model and Serial No plate is located on the...

  • Page 2: Safety Guidelines

    NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have wrJtten Porter-Cable and we have advised you. Technical Service Manager...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS (cont'd) SAVE THESE INSTRUCTIONS _\ I IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY PROPERTY DAMAGE. READ UNDERSTAND WARNINGS OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. HAZARD RISK OF EXPLOSION OR FIRE WHAT CAN HAPPEN HOW TO PREVENT IT GASOLINE AND GASOLINE VAPORS CAN BECOME...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS (cont'd) RISK FROM FLYING OBJECTS >a WHAT HAPPEN PREVENT THE COMPRESSED AIR STREAM CAUSE ALWAYS WEAR ANSI Z87 1 APPROVED SAFETY SOFT TISSUE DAMAGE TO EXPOSED SKIN AND GLASSES WITH SIDE SHIELDS WHEN USING THE CAN PROPEL DIRT¸...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS (cont'd) RISK OF BURNS HOW TO PREVENT IT WHAT CAN HAPPEN NEVER TOUCH ANY EXPOSED METAL PARTS ON TOUCHING EXPOSED METAL SUCH AS THE ENGINE COMPRESSOR DURING COMPRESSOR HEAD OR OUTLET TUBES IMMEDIATELY AFTER OPERATION ENGINE CONTACT WITH HOT ENGINE PARTS, SUCH AS...

  • Page 6: Duty Cycle

    Underwriters Laboratories Standards Safety. DUTY CYCLE Porter-Cable air compressors should be operated eta not more than a 50% duty cycle This means an air compressor that pumps air more than 50% of one hour is considered misuse, because the air compressor is undersized for the required air demand.
  • Page 7 DESCRIPTION OF OPERATION Air Compressor Pump (not shown): Compresses air into the air tank. Unloader Valve (not shown): When maximum tank pressure is obtained, unloader valve will exhaust compressed air to the atmosphere (blow-off). When the tank pressure drops to a pre determined point, the unloader valve...

  • Page 8: Installation

    INSTALLATION _THE WHEEL HANDLES DO NOT PROVIDE ADEQUATE CLEARANCE, STABILITY OR SUPPORT FOR PULLING THE COMPRESSOR AND DOWN STAIRS OR STEPS. THE COMPRESSOR MUST BE LIFTED, PUSHED UP A RAMP. Push rubber handle grips (L), onto handle tubes (M). Seat firmly. Use a twisting motion to ease assembly.
  • Page 9 Lubrication and Oil Engine Position the unit on a level surface. Remove spark plug wire from spark plug. Remove oil drain plug (A) Fig 3. Dispose of oi_ drain plug. Obtain the drain plug extension (B) Fig. 3, from the parts bag. Apply thread sealant tape to the threads of the drain plug extension (B).
  • Page 10 I_'_11 Multi-viscosity motor oils such as 10W-30 should not be used in an air compressor. Multi-viscosity oils ieave carbon deposits on critical components, reducing their performance and shorlening compressor life. Only use oil designated for use in air compressors. Castrol Heavy Duty 30 weight...
  • Page 11 NOTE A warm engine requires less choking than a cold engine. Turn the engine switch to the "ON" position. The air compressor is top heavy. Make sure the unit sition and will not tip before pulling the starter cord the engine. Pullthe starter grip lightly...
  • Page 12 OPERATING PROCEDURES Daily Start-Up Checklist Before Starting Unit Perform the following checks before starting the air compressor. Make sure that nothing is blocking the belt guard, air openings or air filter inlet. Make sure the unloader valve moves freely and smoothly. Refer to Figures 4 and 6.

  • Page 13: Maintenance

    DRAIN AIR TANKS DAILY. WATER WILL CONDENSE AIR TANKS. IF NOT DRAINED, WATER WILL CORRODE AND WEAKEN THE AIR TANKS CAUSING A RISK OF TANK RUPTURE. 16. With tank pressure at approximately 20 PSIG, open the drain valves and allow moisture to drain.
  • Page 14 Each Year of Operation or ff a Problem is Suspected: If you have properly serwced you_ air compressor, oil Levels are (oHect, belts aligned, and the unit {s not functioning p_operly, check the condition of tile air compressor pump intake and e×haust valw;s Refer to the "Service...
  • Page 15 BeltGuard - Removal Disconnect the spark plug w_re on the engine and release all air tank pressure (Refer to Figure 8) Remove the six screws (A) from the belt guard front of the belt guard can now be removed. Belt - Replacement Disconnect the spark plug wire on...
  • Page 16 Pulley and Flywheel - Alignment The air compressor flywheel and engine pulley must be in-line (in the same plane) within 1/16" to assure belt retention within flywheel belt grooves. To check alignment, perform the following steps: Disconnect the spark plug wire on the engine and release all air tank pressure. Remove belt guard.
  • Page 17 Servicing Compressor Intake and Exhaust Valves The air compressor's intake and exhaust valves as well as the valve plates and cylinder head, witl, over a period of time, accumulate a residue of carbon-like material on their surfaces. The material will decrease the efficiency of the pump.
  • Page 18 STORAGE Before you store the air compressor, make sure you do the following: Review the "Maintenance" section on the preceding pages and perform scheduled maintenance as necessary. Review the "Engine Manufacture's Operating and Maintenance Instructions". Turn the regulator counterclockwise and set the outlet pressure to zero. Remove the air tool or accessory Pull ring on safety valve allowing air to bleed from the tank until tank pressure _sapproximately...

  • Page 19: Troubleshooting

    TROUBLESHOOTING GUIDE PERFORMING TROUBLESHOOTING OR REPAIRS CAN EXPOSE MOVING PARTS OR COMPRESSED AIR SOURCES. PERSONAL INJURY MAY OCCUR. PRIOR TO ATTEMPTING TROUBLESHOOTING OR REPAIRS, THE ENGINE SPARK PLUG WIRE SHOULD BE REMOVED. NEVER OPERATE THE UNIT WITH THE BELT GUARD REMOVED. THE BELT GUARD SHOULD BE REMOVED ONLY WHEN THE SPARK PLUG WIRE IS REMOVED.
  • Page 20 PROBLEM CAUSE CORRECTION The fuel valve control is in the Move the fuel valve control switch Engine will not run. "OFF" position to the "ON" position NOTE: The gasoline tank is empty Fill the tank with gas. Refer to the engine mallutacturer's Marqual for an...
  • Page 21 PROBLEM CORRECTION CAUSE Compressor is not Prolonged excessive use of air. Decrease amount of air usage supplying enough air Compressor is not large Check the accessory to operate enough for air requirement. requirement If it is higher than the accessories. SCFM or pressure supplied by your air compressor,...

  • Page 22: Plumbing Components

    ACCESSORIES Accessories can be found at the store the unit was purchased or at a local hardware store. FIL TERS, REGULA TORS, LUBRICATORS LUBRICATOR FILTER/ r"" REGULATOR REGULATOR Controls INLINE OILER Administers ["_ Regulates air pressure pressure into the air line, removes moisture, oil and...
  • Page 23 NOTES Z_:I FN(_...

  • Page 24: Warranty & Service

    90 Day - Service parts Engine warranties are the responsibility of the engine manufacturer Warranties merchandise sold by Porter-Cable which been manufactured by and identified as the product of another company are the responsibility of the manufacturer of that product...
