Use the LCD menu screens to configure the scaler. See "Configuring the
6
Scaler" on page 2-6.
The image from the input device should appear on the output device. If it
7
does not, double check steps 3 and 4 and make adjustments as needed, and
then see "Operating Problems" on page 5-2.
Mounting the scaler
Each DVS 150 ships with four uninstalled rubber feet. If you are going to rack
mount the unit, do so before cabling it, and do not install the rubber feet. If you are
not rack mounting the scaler, skip to "Installing the rubber feet" below.
The DVS 150 can be rack mounted using one side of an optional 19" 1U Universal
Rack Shelf (Extron part # 60-190-01).
To rack mount the scaler, do the following:
1.
If rubber feet were previously installed on the bottom of the case, remove
them.
2.
Mount the scaler on the rack shelf as shown in figure 2. Use two
4-40 x 1/8" screws in opposite (diagonal) corners to secure the case to the
shelf.
Faulse Front panel
uses 2 front holes
IN P
U T
1
2
3
4
C O
LO
R

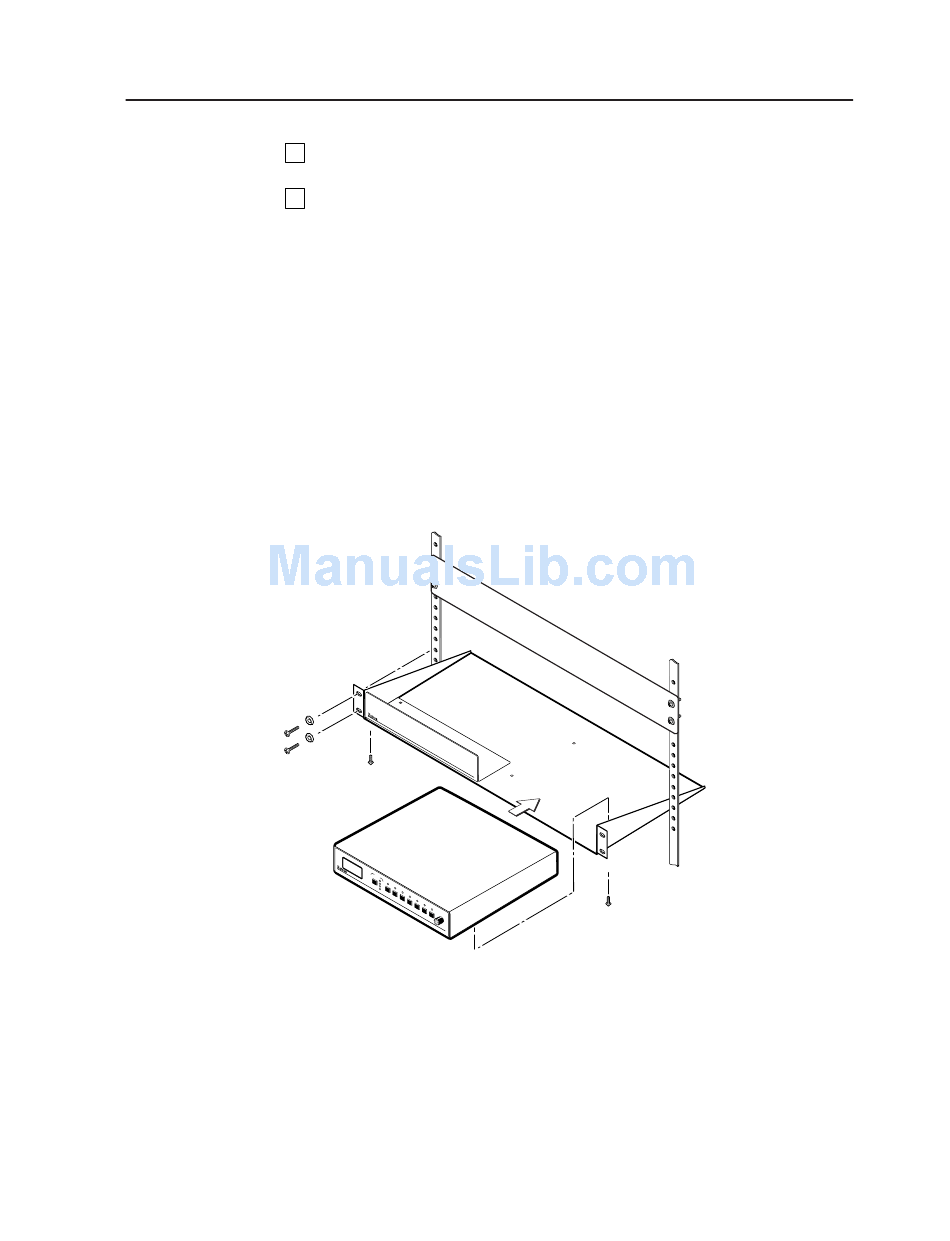

Figure 2 — Mounting the scaler
Installing the rubber feet
The scaler ships with four uninstalled rubber feet. Install the rubber feet only if you
are not rack mounting the scaler. To install the rubber feet, do the following:
1.
Turn the scaler upside down and place it on a flat surface.
Remove the protective backing from a rubber foot.
2.
T IN
T
B R
IT
C O
N TR
A S
T
H S
H IF
T
V S
H IF
T
R AT
E
D IG
IT A
D V
L V
S 1
ID E
0 0
O
S C
A L
E R
Use 2 mounting holes on
opposite corners
(2) 4-40 x 1/8" Screws
DVS 150 Installation
2-3
