NORPOLE EWCIM44ST User Manual

Automatic undercounter ice maker
Hide thumbs Also See for EWCIM44ST:

Advertisement

Automatic
Undercounter
Ice Maker
//1
T-
_
/ /
if[
/
,+
/f
x"
f"
_
/"
1
I
I,,
i
I['!
c
, i
c
,, i
/
,
/
-
/
'_ II
/"
User's Manual
I Be sure ice maker is standing
upright 24 hours prior to plug-in.
Model :EWCIM44ST

Advertisement

Table of Contents
loading

Summary of Contents for NORPOLE EWCIM44ST

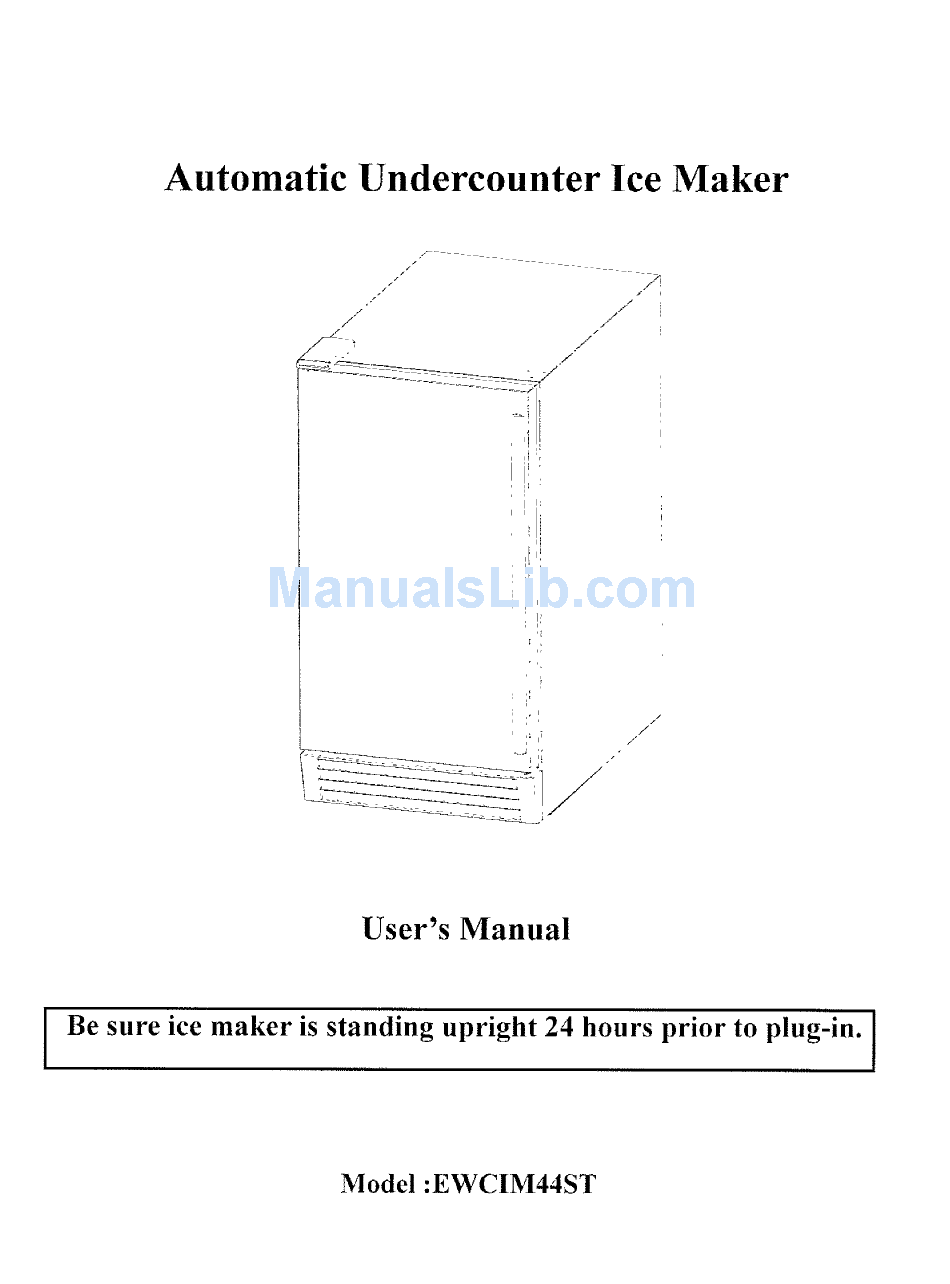

  • Page 1 Automatic Undercounter Ice Maker x" f" /" I['! ,, i '_ II /" User's Manual I Be sure ice maker is standing upright 24 hours prior to plug-in. Model :EWCIM44ST...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page ICE MAKER SAFETY ..................... IMPORTANT SAFEGUARDS ................... 3 - 5 TECHNICAL INFORMATION ..................COMPONENT LOCATIONS ................... ICE MAKER INSTALLATION ................7 - 13 Unpacking ........................ Location requirements ..................7 - 9 Electrical requirements .................... Leveling the ice maker ...................
  • Page 3: Ice Maker Safety

    ICE MAKER SAFETY Your safety and the safety of others are very important• We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others.
  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS Be/bre the ice maker is used, it must be properly positioned and installed as described in this manual, so read manual carefully. We strongly recommends that you have a professional instatl your new machine. wan'anty may be affected or voided by an incorrect installation.
  • Page 5 • Do not kink or pinchthepower supplycord between the ice makerandcabinet. • The fuse(or circuit breaker) sizeshouldbe 15amperes. • It is importantfor the ice makerto beleveledin orderto work properly.Othe_visewater may not flow properlytkroughthe evaporator(icemold).The ice productionwill be less thannormal.You mayneedto makeseveral a djustments to level it. •...
  • Page 6: Technical Information

    Extension Cord Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this ice maker. TECHNICAL INFORMATION Model: AZ-20B 115VAC - 60Hz Electrical power: 13.2 kWh/100 lbs of ice Power consumption: 3.7A!4.8A Ice-making/-harvest...
  • Page 7: Component Locations

    COMPONENT LOCATIONS Water distribution tube Door Evaporator (ice mold) Water trough Float Ice storage bin Caster Control panel Front louver panel .-. -;yS ice scoop .- Power cord ..Water inlet L ..Drain outlet ., _°4_ ,:.Y Drain hose Water suppIy hose...
  • Page 8: Ice Maker Installation

    ICE MAKER INSTALLATION Unpacking Excessive Weight Hazard or more people to move install ice maker. Failure to do so can result in back oi other injury. Remove packaging materials IMPORTANT: Do not remove any permanent instruction labels or the data label your ice maker.
  • Page 9 • This ice maker should be properly installed by qualified personnel. • To ensure proper ventilation for your ice maker, the front of the unit nmst completely unobstructed. • When installing the ice maker under a counter° follow the recommended spacing dimensions shown.
  • Page 10: Electrical Requirements

    accordancewith the National Electrical Code and local codesand ordinances,is required. IMPORTANT:Do not kink or pinch thepowersupplycordbetweenthe icemakerandwall or cabinet. Electrical requirements Electrical Shock Hazard Plug into a grounded 3- prong outlet. Never remove the ground prong fi'om the plug. Never use an adapter. Never use an extension cord.
  • Page 11: Leveling The Ice Maker

    Leveling the ice maker tt is important for the ice maker to be leveled in order to work properly. Otherwise water will not flow properly through the evaporator (ice mold). The ice production will be less than normal, and may be noisy.
  • Page 12 Position the door on the bottom hinge. Align the door on the bottom hinge and replace the top hinge and top hinge mat. Replace top hinge cover. 7. Push the plug buttons into the original screw holes. See Figure below. cabinet Top hinge mat "...
  • Page 13: Water Supply

    Water Supply The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 15 psig with a static pressure not more than 80 psig. (A wall outlet directly behind the ice machine wii! make installation easier.)
  • Page 14: Installation Types

    All horizontal runs of drain lines must have a fall of ¼" per foot. An air gap will likely be required between the ice maker drain tube and the drain/waste receptacle, standpipe with a trap below it would be acceptable for the drain/waste receptacle.
  • Page 15: Operation

    OPERATION Final Check List before Operation Have all packing materials and tape been removed from the interior and exterior of the ice maker? Did you clean the ice storage bin? Have the installation instructions been follov,,ed, including co_mecting the machine water and electricity? Has the machine been leveled?
  • Page 16: How The Machine Makes Ice

    ice storage bin. When the ice storage bin is full, the sheet of cubes will not fall completely and will hold the bin-l\dl probe open. The machine automatically stops making ice and progresses to the cold preservation stage. During this stage, the compressor works regularly to keep the temperature...
  • Page 17: Normal Sounds

    Water inlet Water pump Hot gas valve____ .._ Cotm_ressor _ Fan motor _ it ?]: Condenser Normal sounds Your new ice maker may make sounds that are not t_amiliar to you. Most of the new sounds are normal. Hard surl:aces like the floor and walls can make the sounds louder than they actually are.
  • Page 18: Cleaning And Maintenance

    6. Leave the door open to allow for circulation and to prevent mold and mildew'. 7. Leave water supply line and power cord disco_mected until ready to reuse. IMPORTANT." • Do not touch the power plug when),our hands" are wet. •...
  • Page 19: Exterior Cleaning

    Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected and the water line is shut off. Exterior cleaning The door and cabinet may be cleaned with a mild detergent and warn1 water solution such I oz.
  • Page 20: Water Distribution Tube Cleaning

    Comlenser cleaning A dirty or clogged condenser prevents proper airflow, reduces ice making capacity, and causes higher than recommended operating temperatures that may lead to component failure. Have the condenser cleaned at least once every six months. 1. Unplug the ice maker or discmmect power.
  • Page 21 1. Make sure that all the ice is off the evaporator. If ice is being formed, wait until the cycle is completed, then press the machine's ON/OFF switch on the control panel. Remove all ice from the storage bin. 3. Keep the ice maker comaected to the water supply.
  • Page 22: Control Panel

    Control panel: Description of LEDs and buttons: 1. Bin Full (Red) LED: Bin full indicator light When this is lit, the ice storage bin is ful! of ice or there is some thing blocking bin-full probe. The unit will stop working. When ice cubes are removed from the ice storage bin, freeing the bin-full probe, the red LED will remain flashing _br3 minutes, then the unit will restart and return to the ice making mode.
  • Page 23: Major Functions

    MAJOR FUNCTIONS The operating procedure is completely automatic. 2. When the ice storage bin is full of ice cubes, the machine stops making ice and proceeds to the cold preservation stage automatically. It starts making ice again after ice cubes are removed. 3.
  • Page 24: Troubleshooting

    TROUBLESHOOTING Before Calling for Service If the unit appears to be malfunctioning, read through the OPEtL4TION section of this manual first. If the problem persists, check the Troubleshooting Guide on the tbllowing pages. Some of tile problems mentioned in the Guide can be solved easily without...
  • Page 25 Check if the water supply pressure is below Cubes are partially ! 5 psig. Not enough water in the formed or are white Check water supply or filter may be water trough. on the bottom. restricted. Check for a water leak at the water trough. The feet are not leveled and Level and lock the feet.
