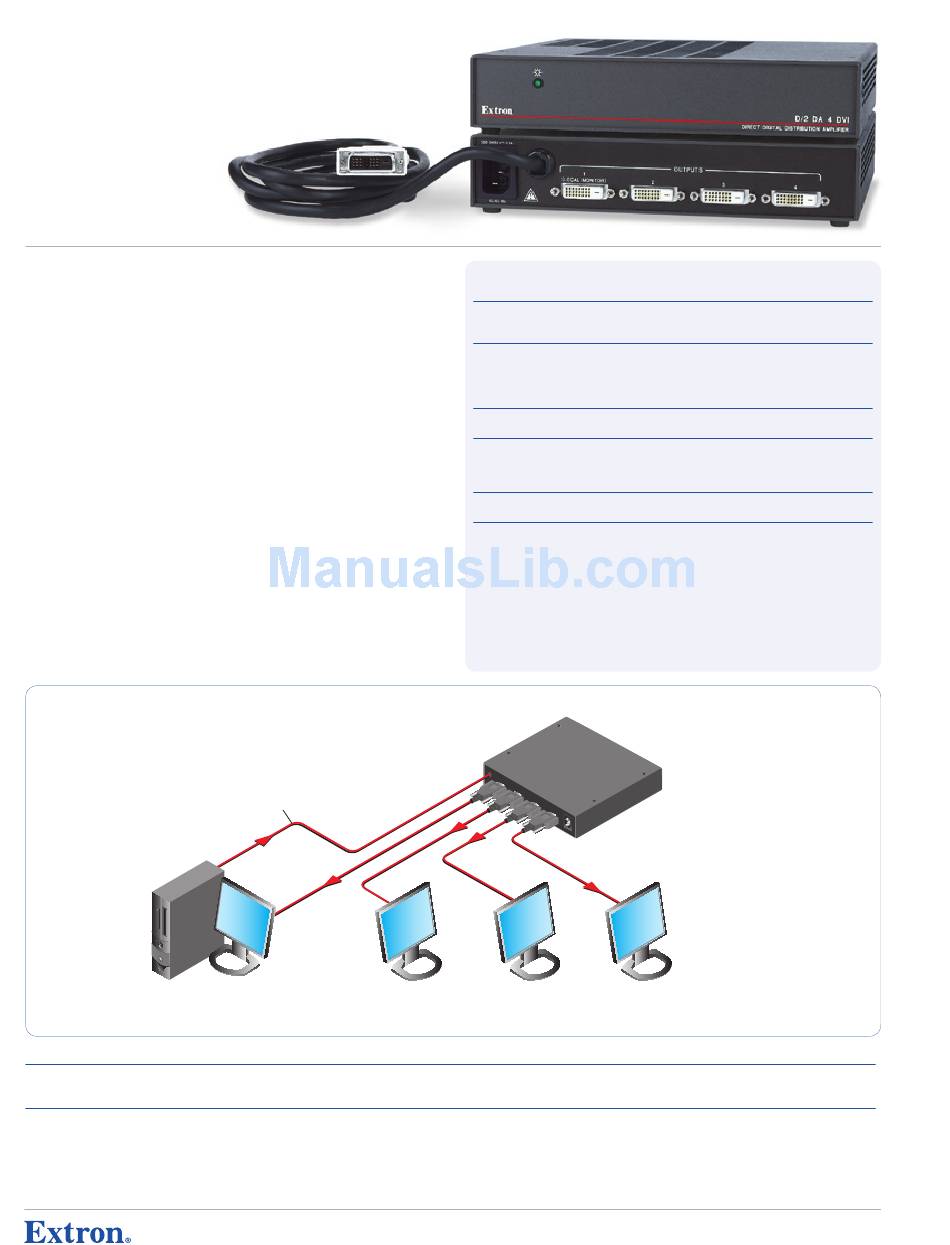

Extron electronics D/2 DA4 DVI Specification Sheet

D/2 DA4 DVI
Four Output DVI Distribution Amplifier

fEAturEs

Input: DVI-D male on attached cable
•
Output: Four DVI-D female connectors
•
Supports single link DVI-D signals up to 1920x1200, including HDTV 1080p/60
•
DDC signals are routed to output 1
•
Internal international power supply
•

DEsCrIPtIon

The Extron D/2 DA4 DVI is a one input, four output distribution amplifier for DVI digital video
signals. It accepts DVI - Digital Visual Interface signals from a computer and distributes up to
four identical, independently buffered outputs. The DVI digital output signal can be run up to
15 feet (4.6 meters) using standard DVI patch cables. For applications requiring longer cable
runs, Extron has developed the IN9700 Series long distance DVI cables which allow DVI signals
to be transmitted up to 75 feet (22.9 meters). For applications requiring even greater lengths,
the Extron DVI 201 transmitter and receiver are capable of sending DVI signals up to 200 feet
(60 meters) using CAT 5 cable, and the FOX 500 DVI fiber optic transmitter and receiver set
can achieve transmissions at extreme distances up to 30 km (18.75 miles). The D/2 DA4 DVI
accepts TMDS Transition Minimized Differential Signaling DVI signals at a bit rate of up to
1.6 gigabits/sec/color. It is equipped with DVI-D connectors for a single link of DVI-D.

MoDEl

D/2 DA4 DVI

oPtIonAl ACCEssorIEs

DVI 201 Tx/Rx
IN9700 Series
RSU 129
MBU 129
564
DVI Output
PC
VErsIon DEsCrIPtIon
Four Output DVI Distribution Amplifier
MoDEl DEsCrIPtIon
DVI Extender
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Link DVI-D Male to Male Long Distance Extension Cables
1U 9.5" Deep Universal Rack Shelf Kit
1U, 1/2 Rack Width Under-Desk Mount Kit for Four-Piece Enclosure
USa West USa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX

sPECIfICAtIons

VIDEo
Maximum bit rate . . . . . . . . . . . . . . . 4.9 gigabits per second (1.6 gigabits/second/color)
Maximum bandwidth . . . . . . . . . . . 165 MHz

VIDEo InPut

Number/signal type . . . . . . . . . . . . . 1 single-link DVI-D
Connectors . . . . . . . . . . . . . . . . . . . . . . . 1 attached cable with male DVI-D connector
Minimum input voltage. . . . . . . . . 0.15 Vp-p
Resolution range . . . . . . . . . . . . . . . . Up to 1920x1200 or 1080p @ 60 Hz
VIDEo sIGnAl CHArACtErIstICs
Rise / fall time . . . . . . . . . . . . . . . . . . . 220 ps, maximum 350 ps

VIDEo outPut

Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 DVI
Connectors . . . . . . . . . . . . . . . . . . . . . . . 4 DVI female
Minimum output voltage . . . . . . . 0.6 Vp-p

DDC AnD HDCP CoMMunICAtIon

DDC and HDCP signals . . . . . . . . . Connected to output 1

GEnErAl

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 13 watts, internal, universal
Temperature / humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.75" H x 8.75" W x 9.4" D (1U high, half rack wide)
Product / shipping weight . . . . 2.8 lbs (1.3 kg) / 5 lbs (3 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings / compliances . . . . . . . . . UL, CUL / CE
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
LCD Display
with DVI Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USa East USa East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
D V I D I s t r I b u t I o n A M p l I f I E r s
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
4.4 cm H x 22.2 cm W x 23.9 cm D (Depth excludes connectors.)
Extron
D/2 DA4 DVI
Distribution Amplifier
PArt #
60-315-02
PAGE PArt #
page 550 60-734-03
page 783 26-584-0X
. . . . . . . . . . . . . . . .
page 819 60-190-01
page 816 70-219-01
. . . . . . . . . . . .
