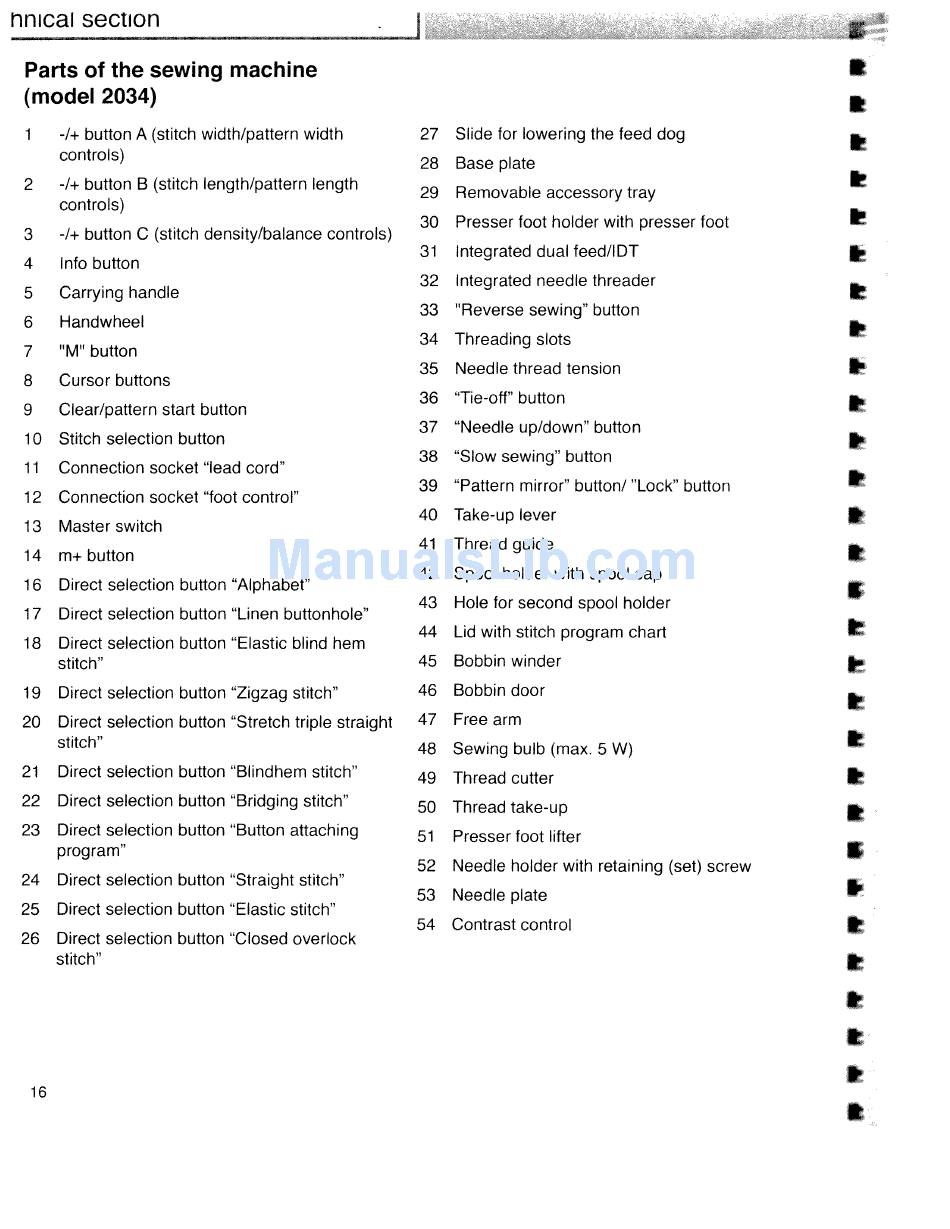

Parts of the sewing machine
(model 2034)
1 -1+ button A (stitch width/pattern width
controls)
2 -1+ button B (stitch length/pattern length
controls)
3 -1+ button C (stitch density/balance controls)
4 Info button
5
Carrying handle
6 Handwheel
7 M" button
8
Cursor buttons
9
Clear/pattern start button
10
Stitch selection button
11 Connection socket "lead cord"
12 Connection socket "foot control"
13 Master switch
14 m+button
16 Direct selection button "Alphabet"
17 Direct selection button "Linen buttonhole"
18 Direct selection button "Elastic blind hem
stitch"
19 Direct selection button "Zigzag stitch"
20 Direct selection button "Stretch triple straight
stitch"
21 Direct selection button "Blindhem stitch"
22 Direct selection button "Bridging stitch"
23 Direct selection button "Button attaching
program"
24 Direct selection button "Straight stitch"
25 Direct selection button "Elastic stitch"
26
Direct selection button "Closed overlock
stitch"
Slide for lowering the feed dog
Base plate
Removable accessory tray
Presser foot holder with presser foot
Integrated dual feed!IDT
Integrated needle threader
'Reverse sewing" button
Threading slots
Needle thread tension
"Tie-off" button
"Needle up/down" button
"Slow sewing" button
"Pattern mirror" button! "Lock" button
Take-up lever
Thread guide
Spool holder with spool cap
Hole for second spool holder
Lid with stitch program chart
Bobbin winder
Bobbin door
Free arm
Sewing bulb (max. 5 W)
Thread cutter
Thread take-up
Presser foot lifter
Needle holder with retaining (set) screw
Needle plate
Contrast control
