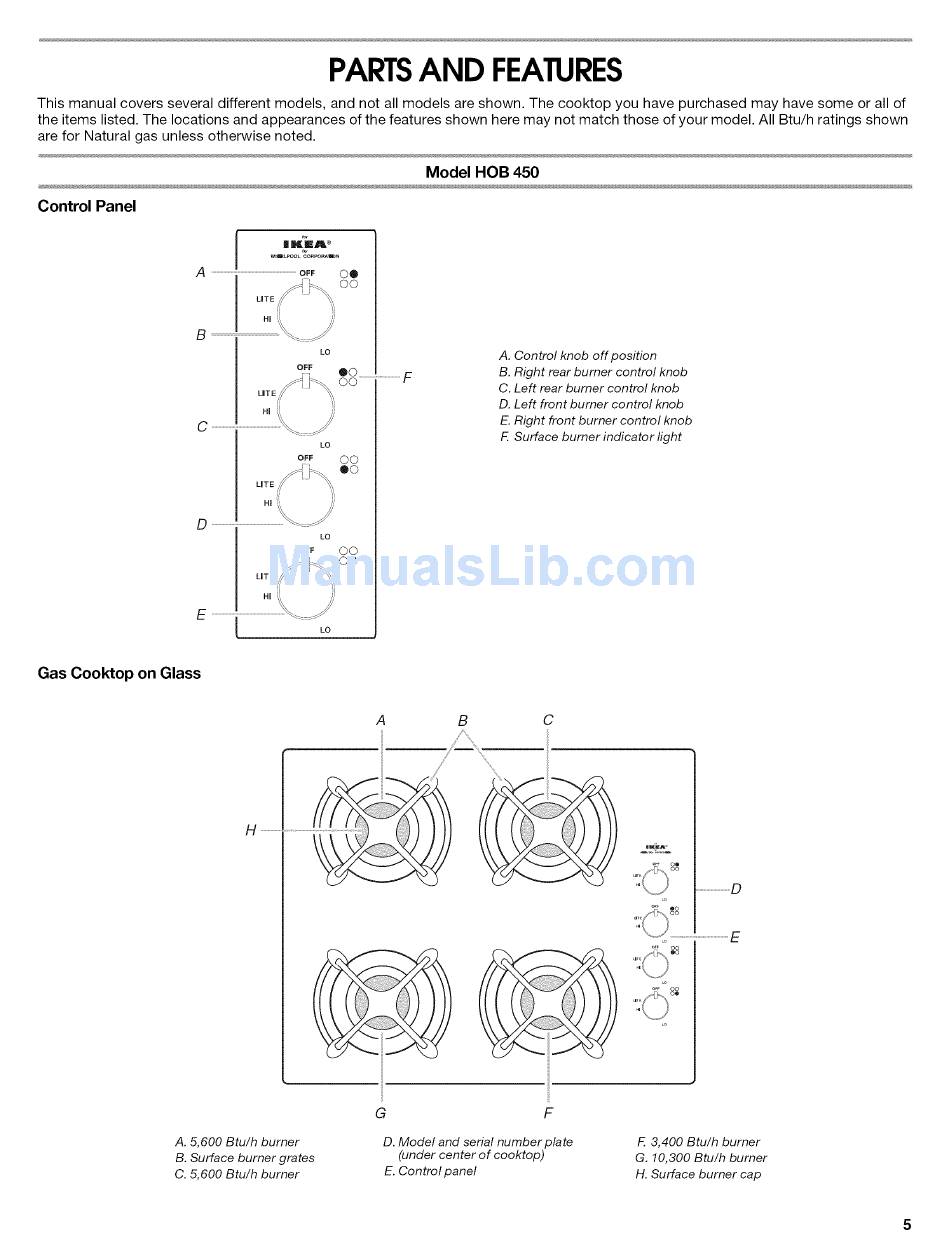

PARTS AND FEATURES
This manual covers several different models, and not all models are shown. The cooktop you have purchased may have some or all of
the items listed. The locations and appearances of the features shown here may not match those of your model. All Btu/h ratings shown
are for Natural gas unless otherwise noted.
Model HOB 450
Control Panel
W_POOL CORPORA_N
A .......................................................................................................... oF_ O®
O0
S
LO
LO
OFF O0
®0
LO
OFF O0
/_: \ oo
Hi( }i
............................. F
A. Control knob off position
B. Right rear burner control knob
C. Left rear burner control knob
D. Left front burner control knob
E. Right front burner control knob
F. Surface burner indicator fight
Gas Cooktop on Glass
A B C
...................................... D
,o
E
A. 5,600 Btu/h burner
B. Surface burner grates
C. 5,600 Btu/h burner
G F
D. Model and serial number plate
(under center of cooktop)
E. Control panel
F. 3,400 Btu/h burner
G. 10,300 Btu/h burner
H. Surface burner cap
