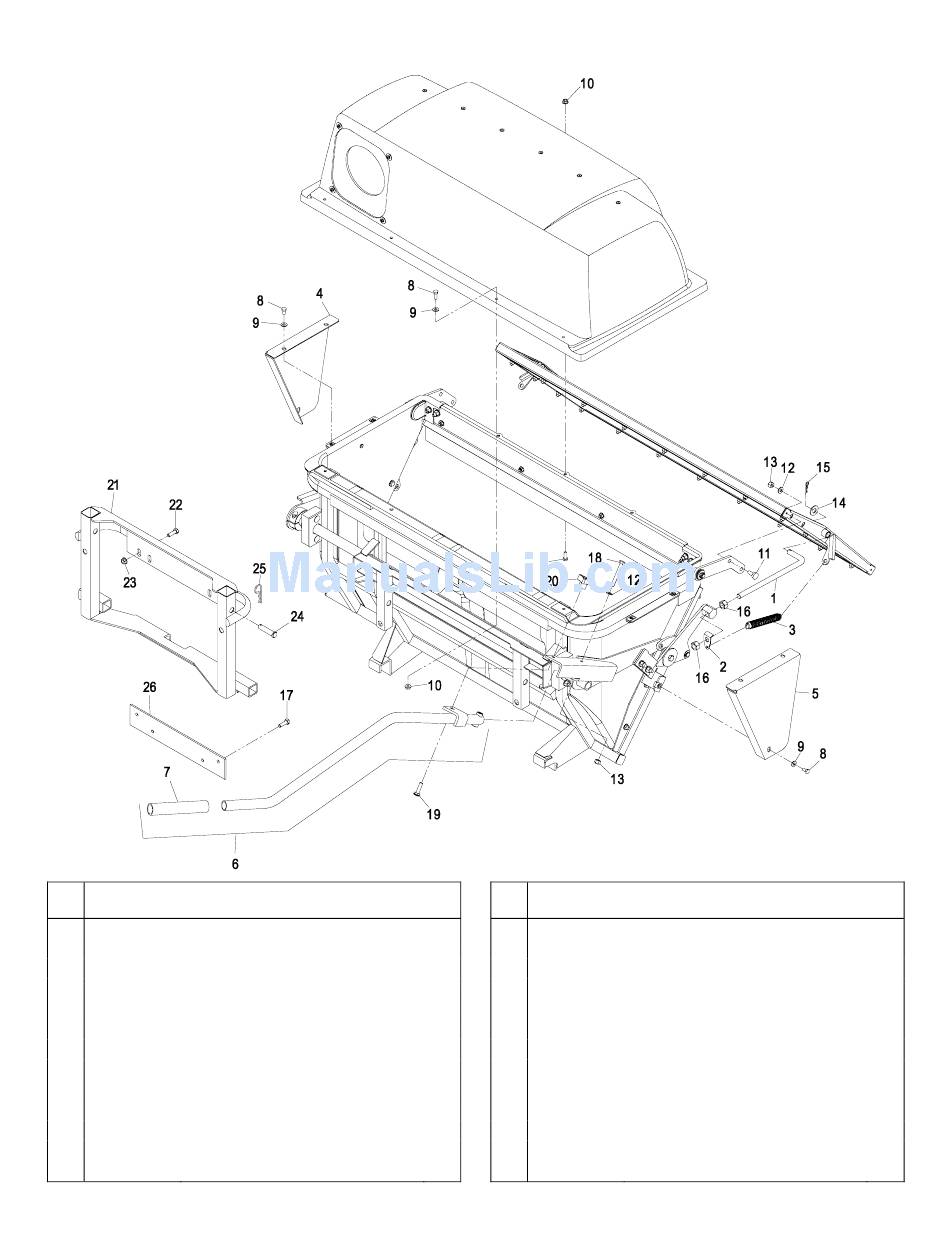

Hopper Assembly - Exmark Lazer Z HP Models Parts Manual

Item Part No. Description
1 103-4822 Link, Door ..............................................2
2 103-4835 Anchor, Spring .......................................2
3 103-4813 Spring ....................................................2
4 103-4819-03 Guard, RH..............................................1
5 103-4437-03 Guard, LH ..............................................1
6 103-6271 Asm, Handle W/Grip ..............................1
7 103-7115 Grip........................................................1
8 321-4 Screw, HH 1/4-20 x 3/4 ..........................13
9 3256-22 Washer, 1/4 SAE ...................................10
10 32128-33 Nut, Whizlock 1/4-20 ..............................7
11 3230-22 Bolt, Carriage 5/16-18 x 1 ......................4
12 3256-23 Washer, 5/16 SAE..................................5
13 3296-29 Nut, Nyloc 5/16-18 .................................5

HOPPER ASSEMBLY

Qty. Item Part No.
14 3256-26
15 1-806003
16 3219-5
17 322-9
18 322-12
19 3230-3
20 1-323385
21 103-4807-03
22 322-5
23 32128-20
24 1-808289
25 1-806005
26 1-653532-03
14
Description
Washer, 1/2 SAE ................................... 2
Hairpin, Cotter ....................................... 2
Nut, Hex 1/2-20...................................... 4
Screw, HH 5/16-18 x 1 3/4 (52).............. 4
Screw, HH 5/16-18 x 2 1/2 ..................... 1
Bolt, Carriage 5/16-18 x 1 1/4 ................ 1
Knob, 3 Prong........................................ 1
Wld, Bagger Mount ................................ 1
Screw, HH 5/16-18 x 1........................... 8
Nut, Whizlock 5/16-18............................ 8
Pin, Clevis 1/2 x 2 .................................. 2
Hairpin, Cotter ....................................... 2
Spacer, Counterweight (52 & 56) ........... 1
Qty.
