Blower Assembly 44" And - Exmark Lazer Z HP Models Parts Manual

Item Part No. Description
1 103-2874-03 Wld, Blower Mount .................................1
2 103-3815 Wld, Impeller .........................................1
3 1-653346 Bearing, SPH. OD..................................2
4 1-513013 Housing, Flange.....................................4
5 103-1047 Sheave, Blower......................................1
6 103-3589 Wld, Upper Housing
(1-652345-03) With Decals ....................1
7 1-653331 Spring, Idler ...........................................1
8 3290-357 Nut, Whizlock 3/8-16 ..............................5
9 323-7 Screw, HH 3/8-16 x 1 1/4 .......................1
10 1-653600 Bearing ..................................................2
11 323-12 Screw, HH 3/8-16 x 2 1/2 .......................2
12 3256-4 Washer, 3/8 Std .....................................1
13 323-8 Screw, HH 3/8-16 x 1 1/2 .......................1
14 1-353054 Latch, Grass Catcher .............................1
15 3296-39 Nut, Nyloc 3/8-16 ...................................1
16 1-653322 Pulley, Idler ............................................1
17 103-0130 Bushing, Idler Pivot ................................1
18 103-1103 Pulley, Idler ............................................1
19 103-2876 Asm , Idler W/Bushings
Zerk, & Decal .........................................1
20 3230-18 Bolt, Carriage 5/16-18 x 5/8 ...................6
21 1-513208 Washer, Spring Disk ..............................1
Exmark black touch up spray paint – gloss black.
Kit 103-0583 is available to repair the welded-on accessory mounting tube on all 44"-72" decks.
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.
Includes items 40 and 41.

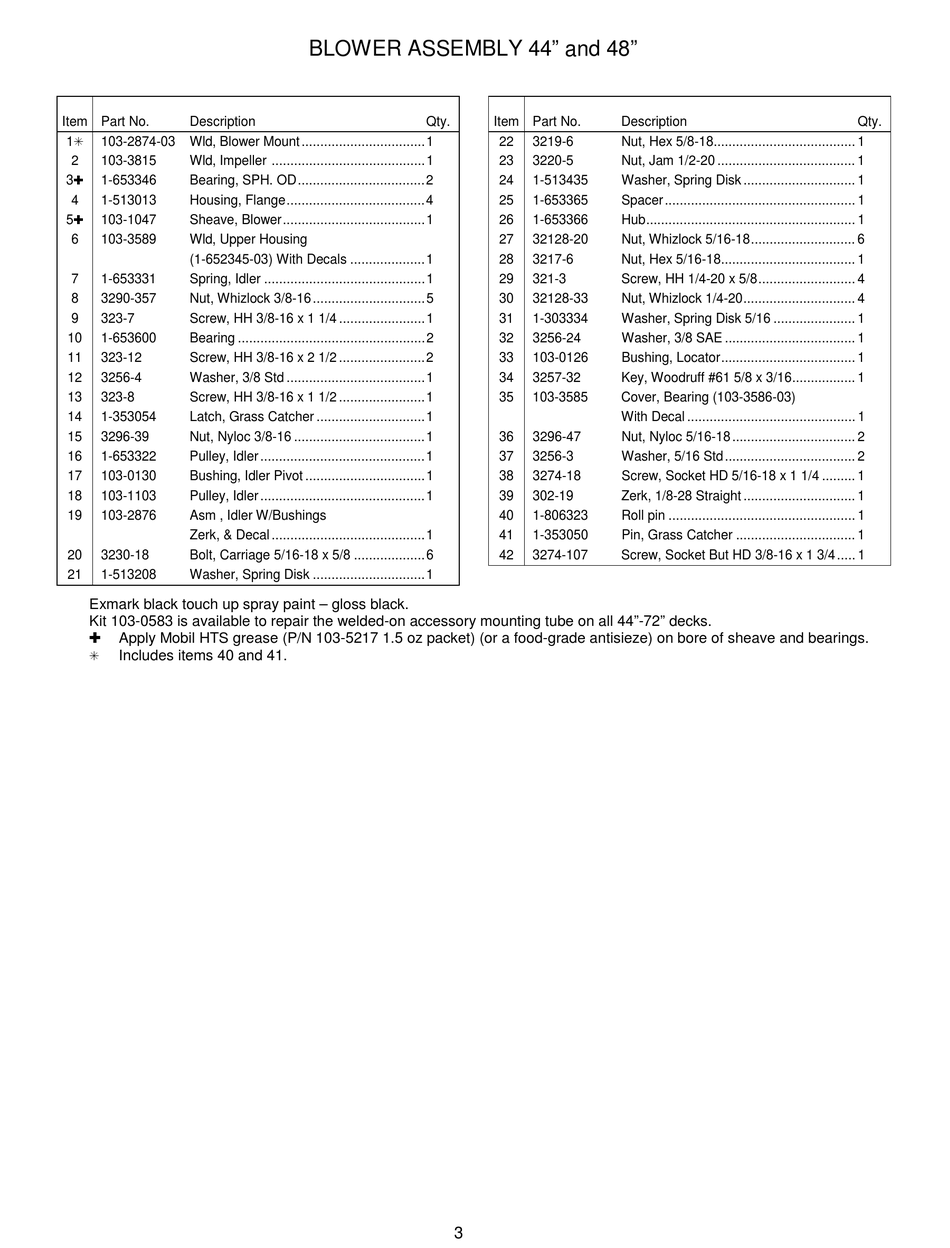

BLOWER ASSEMBLY 44" and 48"

Qty.
3
Item Part No. Description
22 3219-6 Nut, Hex 5/8-18...................................... 1
23 3220-5 Nut, Jam 1/2-20 ..................................... 1
24 1-513435 Washer, Spring Disk .............................. 1
25 1-653365 Spacer ................................................... 1
26 1-653366 Hub........................................................ 1
27 32128-20 Nut, Whizlock 5/16-18............................ 6
28 3217-6 Nut, Hex 5/16-18.................................... 1
29 321-3 Screw, HH 1/4-20 x 5/8.......................... 4
30 32128-33 Nut, Whizlock 1/4-20.............................. 4
31 1-303334 Washer, Spring Disk 5/16 ...................... 1
32 3256-24 Washer, 3/8 SAE ................................... 1
33 103-0126 Bushing, Locator.................................... 1
34 3257-32 Key, Woodruff #61 5/8 x 3/16................. 1
35 103-3585 Cover, Bearing (103-3586-03)
With Decal ............................................. 1
36 3296-47 Nut, Nyloc 5/16-18 ................................. 2
37 3256-3 Washer, 5/16 Std ................................... 2
38 3274-18 Screw, Socket HD 5/16-18 x 1 1/4 ......... 1
39 302-19 Zerk, 1/8-28 Straight .............................. 1
40 1-806323 Roll pin .................................................. 1
41 1-353050 Pin, Grass Catcher ................................ 1
42 3274-107 Screw, Socket But HD 3/8-16 x 1 3/4 ..... 1
Qty.
