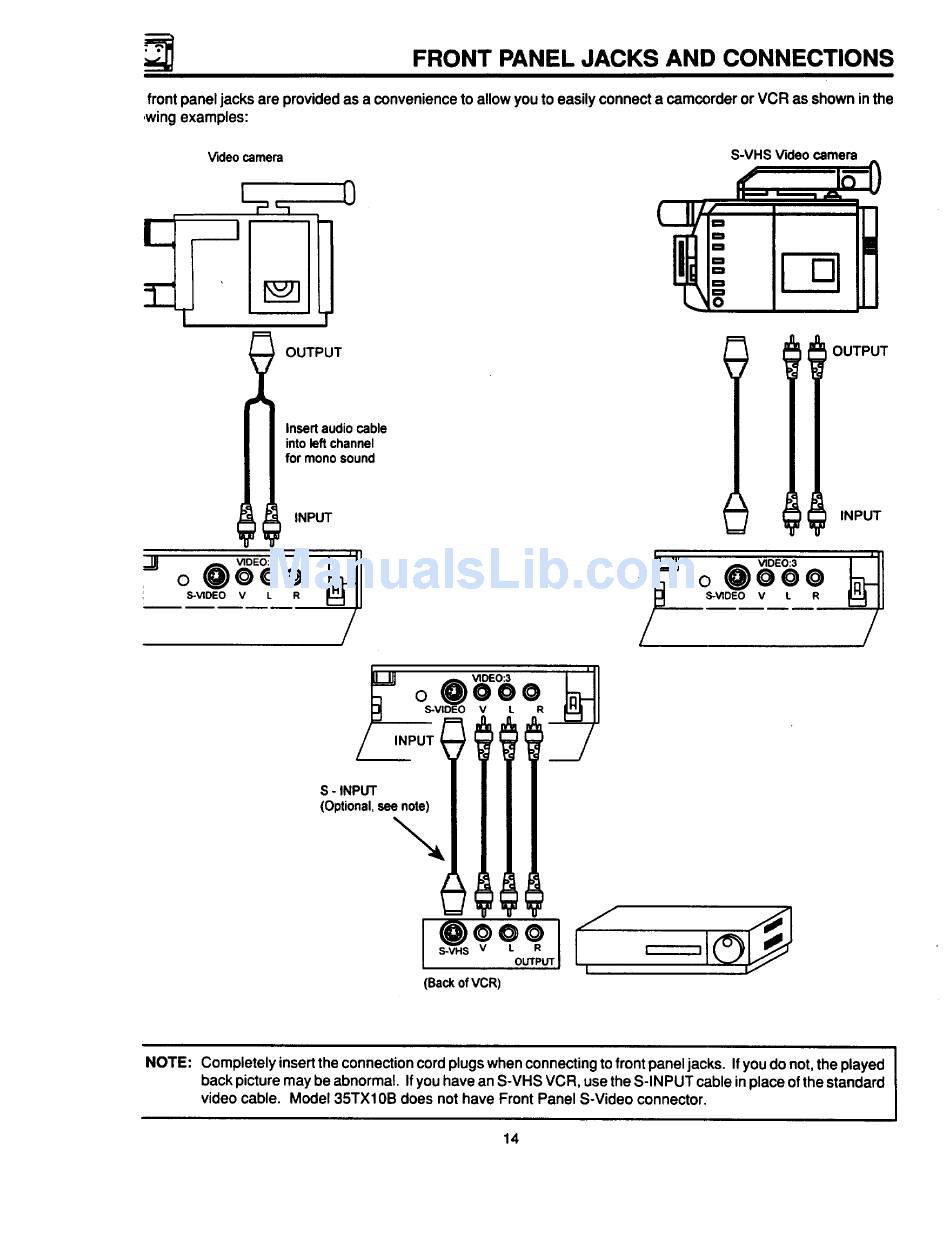

FRONT PANEL JACKS AND CONNECTIONS

frontpaneljacksare providedas a convenience to allowyou to easilyconnecta camcorderor VCR as shownin the

,wingexamples:

Video camera

S-VHS Video camera

OUTPUT

Insert a udio cable

into leftchannel

formono sound

INPUT

OUTPUT

INPUT

-o,.o

y o,

...ov.o

OOv. ?

NOTE; Completelyinsertthe connection cordplugswhenconnecting tofront paneljacks. Ifyou do not,the played

backpicturemay be abnormal. Ifyou havean S-VHS VCR, usethe S-INPUT cable inplace ofthe standard

videocable. Model 35TX10B does not have Front Panel S-Video connector.
