CONNECTING EXTERNAL AUDIO AMPLIFIER
EXTERNAL CONNECTIONS

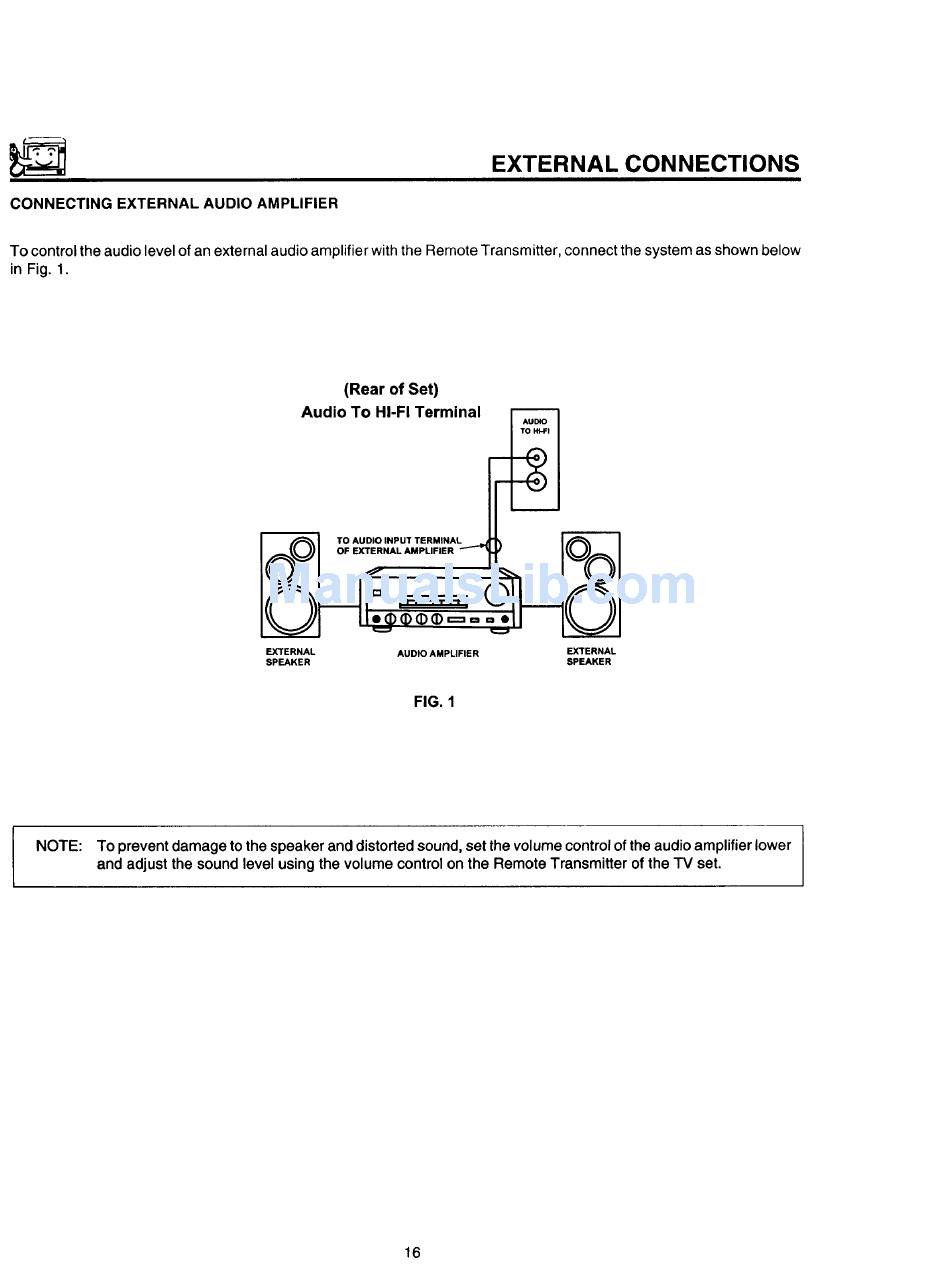

To control the audio level of an external audio amplifier with the Remote Transmitter, connect the system as shown below
in Fig. 1.
(Rear of Set)
Audio To HI-FI Terminal
EX'rERNAL AUDIO AMPLIFIER EXTERNAL
SPEAKER SPEAKER
FIG. 1
NOTE: To prevent damage to the speaker and distorted sound, set the volume control of the audio amplifier lower
and adjust the sound level using the volume control on the Remote Transmitter of the TV set.
16
