Hitachi 27CX4B Operating Manual page 18

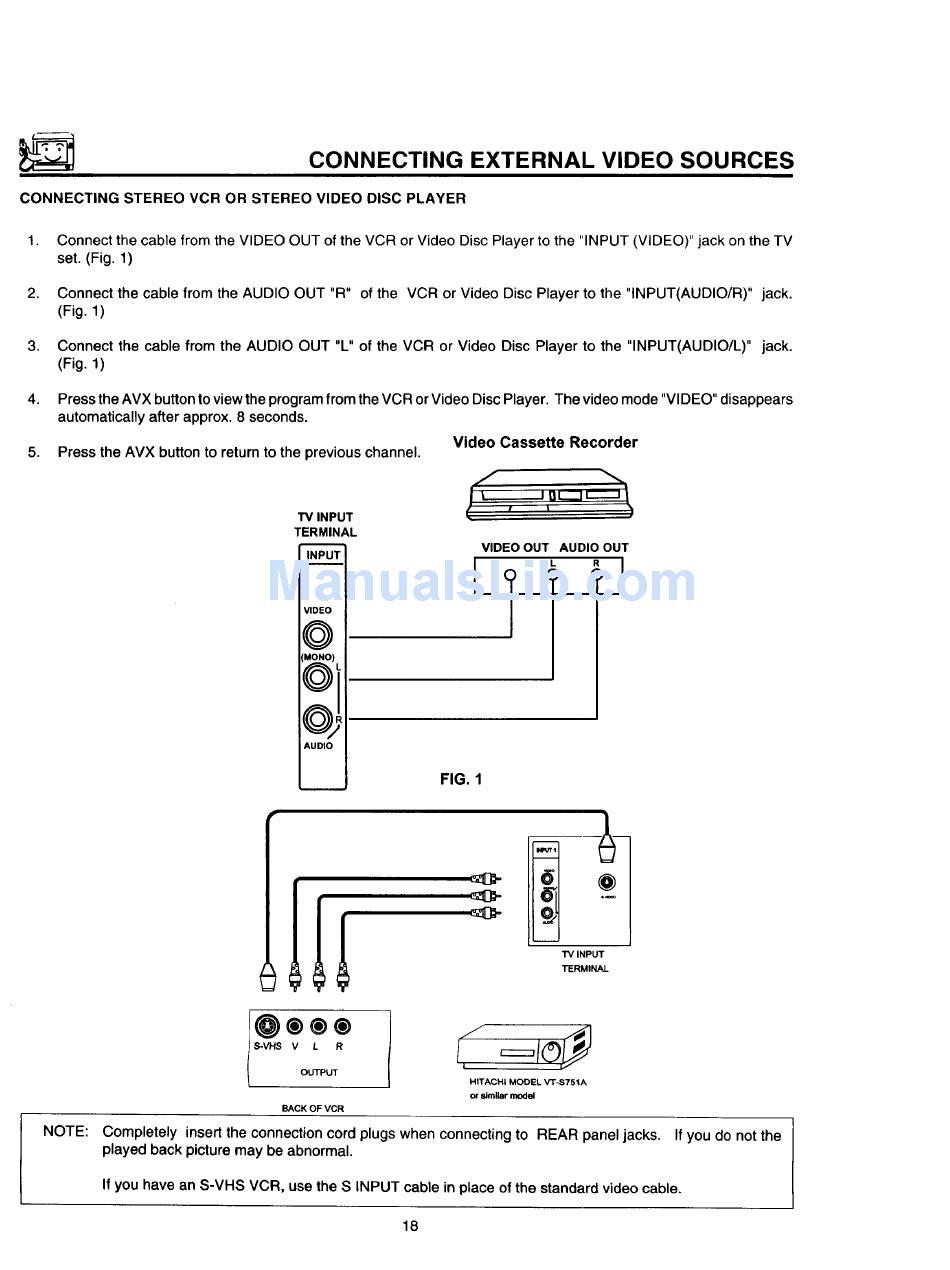

CONNECTING EXTERNAL VIDEO SOURCES
CONNECTING STEREO VCR OR STEREO VIDEO DISC PLAYER
1°
2.
3,
4.
Connect the cable from the VIDEO OUT of the VCR or Video Disc Player to the "INPUT (VIDEO)" jack on the TV
set. (Fig. 1)
Connect the cable from the AUDIO OUT "R" of the VCR or Video Disc Player to the "INPUT(AUDIO/R)" jack.
(Fig. 1)
Connect the cable from the AUDIO OUT "L" of the VCR or Video Disc Player to the "INPUT(AUDIO/L)" jack.
(Fig. 1)
5. Press the AVX button to return to the previous channel.
Press the AVX button to view the program from the VCR or Video Disc Player. The video mode "VIDEO" disappears
automatically after approx. 8 seconds.
Video Cassette Recorder
TV INPUT
TERMINAL
INPUT
VIDEO
MONO_
@"
AUDIO
!, ,0,
VIDEO OUT AUDIO OUT
L R
FIG. 1
NOTE:
I"V INPUT
TERMINAL
OUTPUT
BACK OF VCR
1
HITACHI MODEL VT-S751A
or similar model
Completely insert the connection cord plugs when connecting to REAR panel jacks.
played back picture may be abnormal.
If you do not the
If you have an S-VHS VCR, use the S INPUT cable in place of the standard video cable.
18
