KitchenAid KEBS208DBL10 Parts List

30" built−in electric double oven thermal convection self−clean
Hide thumbs


Advertisement

Quick Links

30" BUILT−IN ELECTRIC

OVEN PARTS

DOUBLE OVEN
THERMAL CONVECTION
For Models:KEBS208DBL10, KEBS208DWH10, KEBS208DBS10, KEBS208DSS10
SELF−CLEAN
(Black)
(White)
(Black Stainless) (Stainless Steel)
10−00 Litho In U.S.A. (RS)
1
Part No. 8185596

Advertisement

loading

  Related Manuals for KitchenAid KEBS208DBL10

  Summary of Contents for KitchenAid KEBS208DBL10

  • Page 1: Oven Parts

    30" BUILT−IN ELECTRIC OVEN PARTS DOUBLE OVEN THERMAL CONVECTION For Models:KEBS208DBL10, KEBS208DWH10, KEBS208DBS10, KEBS208DSS10 SELF−CLEAN (Black) (White) (Black Stainless) (Stainless Steel) 10−00 Litho In U.S.A. (RS) Part No. 8185596...

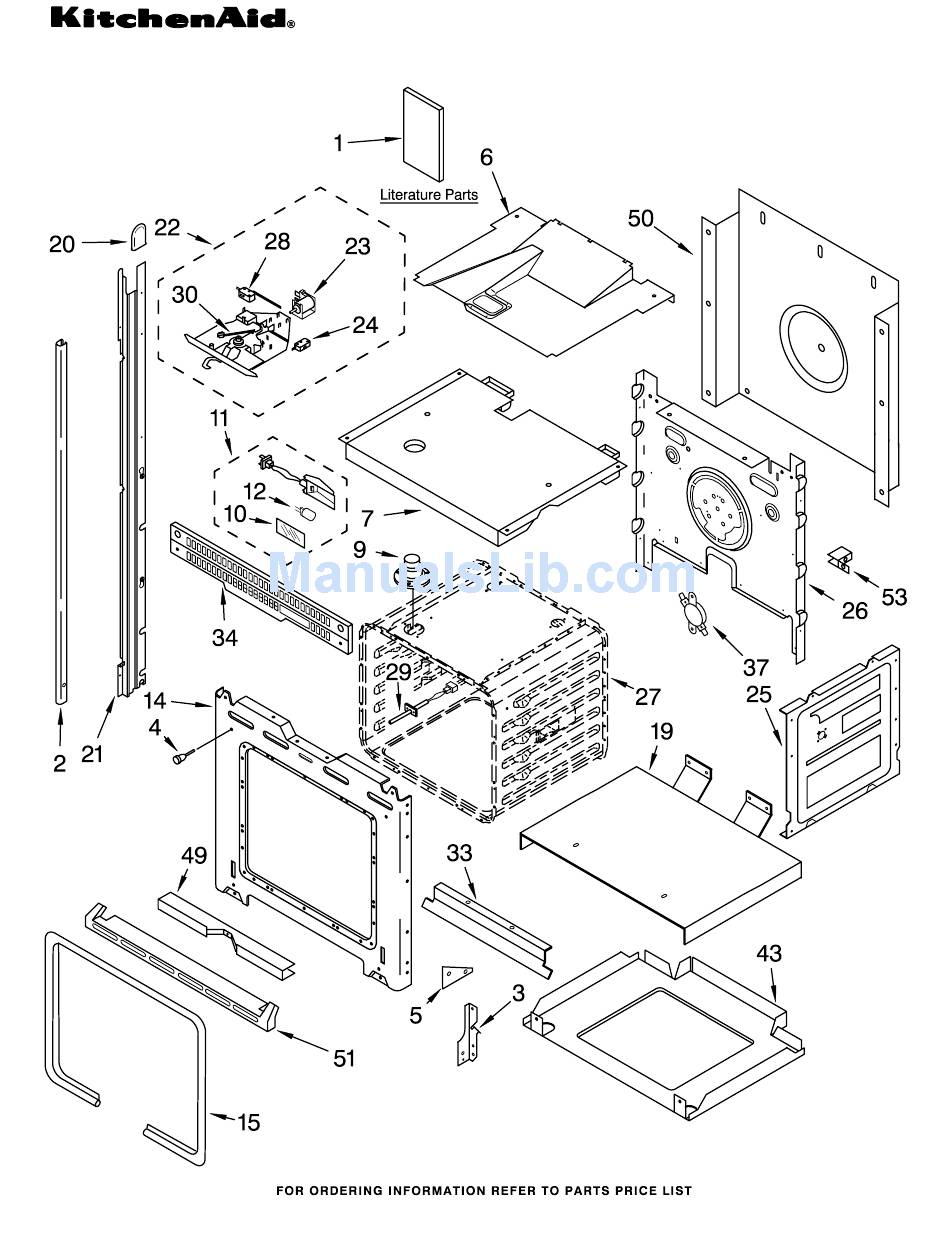

  • Page 2 OVEN PARTS For Models:KEBS208DBL10, KEBS208DWH10, KEBS208DBS10, KEBS208DSS10 (Black) (White) (Black Stainless) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452158 Tube, Vent 4455636 Sensor NOTE: The screws and nuts 4449154 Screw 4449154 Screw required to attach a part are 4452163 Lens, Light 4451537 Spring, Latch listed immediately following...
