CABINET PARTS
REFRIGERATOR
For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03
(White)
(Biscuit)
(Black)
(Stainless Steel)
6−03 Printed In U.S.A. (dmz)
1
Part No. 8198567

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRS25ILBL03 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KSRS25ILBL03

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 6−03 Printed In U.S.A. (dmz) Part No. 8198567...

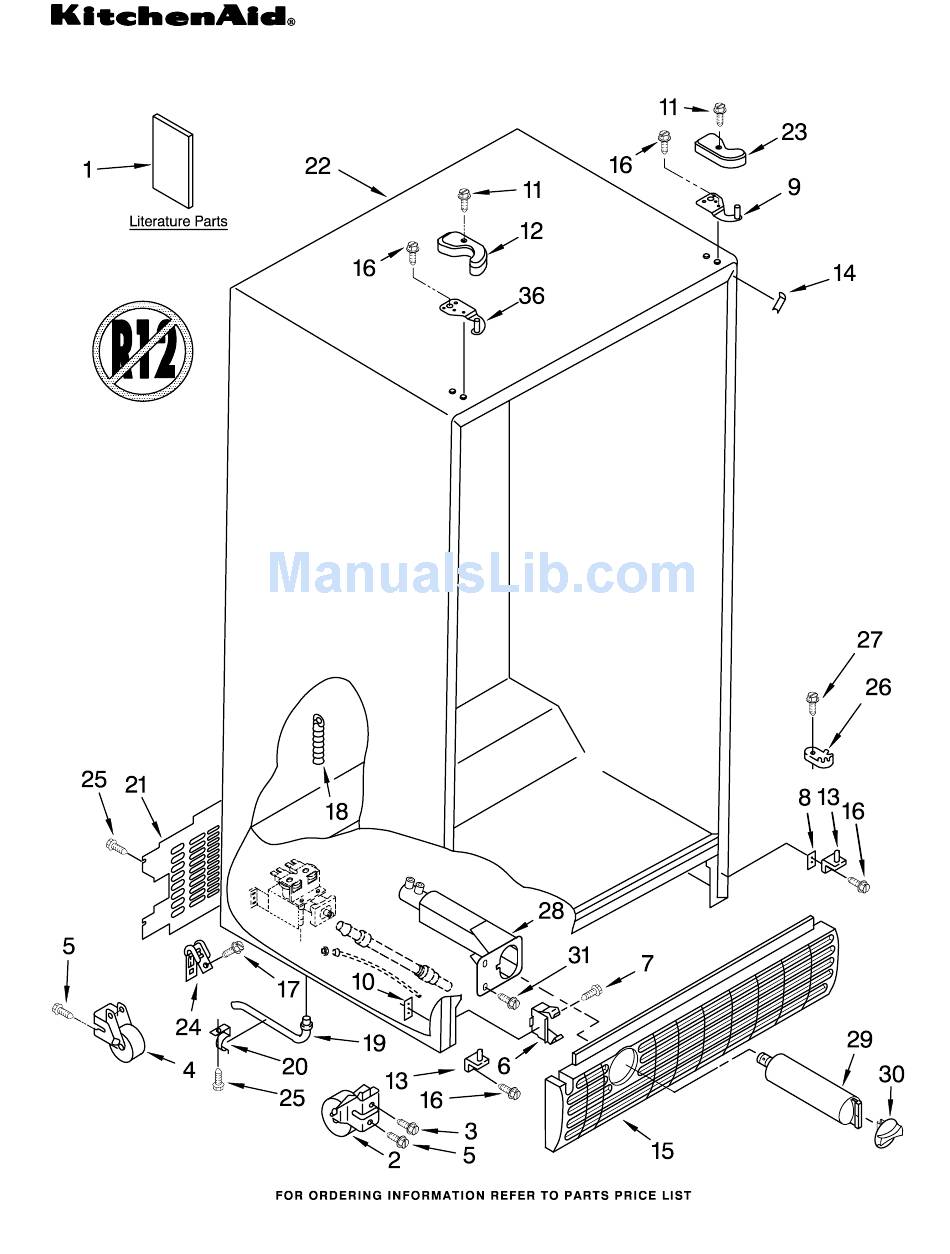

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2155013 Clip, Grille 1108438 Extension Tube LITERATURE PARTS 489478 Screw 1108439 Clip, Drain Tube 2252036 Cover, Unit Shim LIT2260958 Energy Guide 2156056 (2) Cabinet (Not A...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2256035 Bracket, Dual Crisper 2216113 Thermistor 2256037 Wire Harness, Dual Crisper 2206273 Shelf Ladder...
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14, & 15) 2255144 Glass, Cover 8281158 Screw 2255143 Glass, Cover...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 6 FREEZER LINER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2216113 Thermistor 3400893 Screw 2198697 Gasket 2223538 Basket, Top 2223541 Basket, Tall 2205826 Basket, Front Shelf Track 2223705 Right Side 2223704 Left Side 2205837 Shelf 2223536 Basket, Sloped...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2207183W White 2207183T Biscuit 2207183B Black 2207183S Stainless 2218122 Compartment Door 2205821 Shelf Bin (4) 3400012 Screw Door Gasket, Magnetic 2221302 Mist Beige 2221313 Black...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 12 FREEZER DOOR PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216062W White 2216062T Biscuit 2216062B Black 2216062S Stainless Handle 2207112W White 2207112T Biscuit 2207112B Black 2207112S Stainless 2171070 Shelf Bin (3) 2206178 Dispenser Harness...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Ice Overlay, Front Housing, Dispenser Dispenser (Not Serviced) Cover 2180259 White (Not Available, 3196537 Screw 2186850 Biscuit Order #23) 2194719 Retainer, Levers 2180261 Black...
  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2216116 Harness, Fan Evaporator...
  • Page 16: Control Parts

    CONTROL PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2212005 Control Box 2216879 Cover 3196537 Screw 2219875 Light Switch 2252114 Control Board 489290 Screw 940014 Hole Plug 2212011 Insert, Control Board 2162085 Light Socket 527949 Light Bulb 2216115 Harness, Control 1115374 Clip, Wiring...
  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Standard Brand and Related Components. 8198567...
  • Page 18 UNIT PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489396 Clip 486692 Speed Nut 2172840 Wire Tie 2209611 Evaporator 2190685 Fan, Blade 489427 Screw 2161324 Clip 2204484 Condenser Assembly 489478 Screw 2188537 Motor, Fan 489464 Screw...
  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) 8198567...
  • Page 20 ICEMAKER PARTS For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2256096 Fitting, Water Tube 2255012 Tube, Filter Outlet 2188744 Tube, Filter Inlet 628379 Clip, Fuse 489478 Screw 2188746 Valve, Solenoid 2208136 Clip, Tube 2174358 Cover 488649 Screw 628228 Mold &...
  • Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25ILWH03, KSRS25ILBT03, KSRS25ILBL03, KSRS25ILSS03 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 8129 Coil Brush 799340 Enamel, Black 212643 Sealer, Gum (1 Qt.

This manual is also suitable for:

Ksrs25ilbt03Ksrs25ilss03Ksrs25ilwh03
