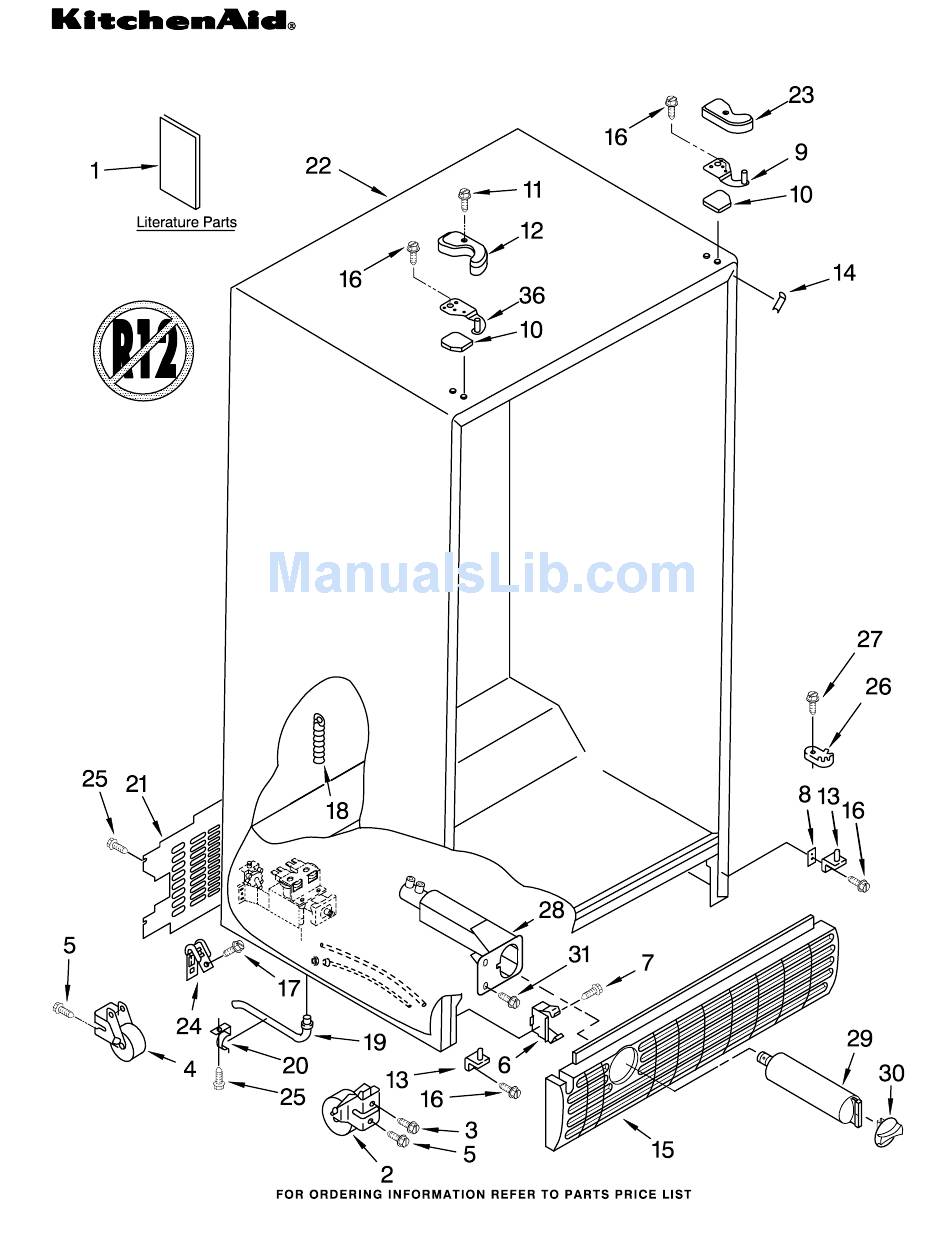

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) Part No. 4398873 10−00 Printed In U.S.A. (dmz)
-
Page 2: Cabinet Parts
For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION LITERATURE PARTS LIT2211899 Energy Guide LIT2206106 Owner’s Manual LIT2198683 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT787808 Refrigerator LIT787316 Icemaker 2174748 Front Roller (2) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 4398873 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 8281158 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part 2195978 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan 2174148 Glass, Cover 2189526 Glass, Cover 2174250 Cover, Crisper... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 6 FREEZER LINER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) Illus. Part 2198697 Gasket 2205834 Basket, Top 2205833 Basket, Tall 2205826 Basket, Front 2181760 Right Side 2181759 Left Side 2205837 Shelf 2205832 Basket, Sloped 486298 Screw (8) 842534 Clip, Air Duct (2)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) Illus. Part 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2198591 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) Illus. Part 2207183W White 2207183T Biscuit 2207183B Black 2207183S Stainless 2182399 Compartment Door 2205821 Shelf Bin (4) 3400012 Screw 2159075 Mist Beige 2159083 Black 2193409 Beverage Holder 2207112W White...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 12 FREEZER DOOR PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) Illus. Part 2216062W White 2216062T Biscuit 2216062B Black 2216062S Stainless 2207112W White 2207112T Biscuit 2207112B Black 2207112S Stainless 2171070 Shelf Bin (3) 2206178 Dispenser Harness 2154473 Connector 3400898 Screw (4)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489000 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2207109W White...
-
Page 15: Air Flow Parts
For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2198595 Air Scoop 2198581 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan... -
Page 16: Control Parts
For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION 2200134 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Switch, Light 2161461 Thermostat (FC) 2188159 Adaptive Defrost Control 489398 Screw (2) 2196003 Tube Barrier, Thermostat (FC) CONTROL PARTS... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Standard Brand and Related Components. 4398873... - Page 18 For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION 486692 Speed Nut 2190685 Fan, Blade 2204242B Condenser Assembly 489464 Screw 2149294 Heat Shield And Drain Pan 2204239 Tube Suction 2158826 Dampener (3) 4387731 Cover (Service Compressor Only) 4387835 Overload (Service Compressor Only) 2188506 Start−Device,...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) (Black) (Stainless Steel) 4398873... - Page 20 ICEMAKER PARTS For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 (White) (Biscuit) Illus. Part 2198578 Fitting, Water 2186493 Tube, Filter 2186492 Tube, Filter 628379 Clip, Fuse 2200083 Nut, Compression 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 2198677 Connector,...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25IHWH02, KSRS25IHBT02, KSRS25IHBL02, KSRS25IHSS02 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz. Spray Can) 350930 Enamel, White (13 Oz.
