- Page 1 CABINET PARTS REFRIGERATOR For Model: KSRS25IHBU02 (Cobalt Blue) 10−00 Printed In U.S.A. (dmz) Part No. 4398872...
-
Page 2: Cabinet Parts

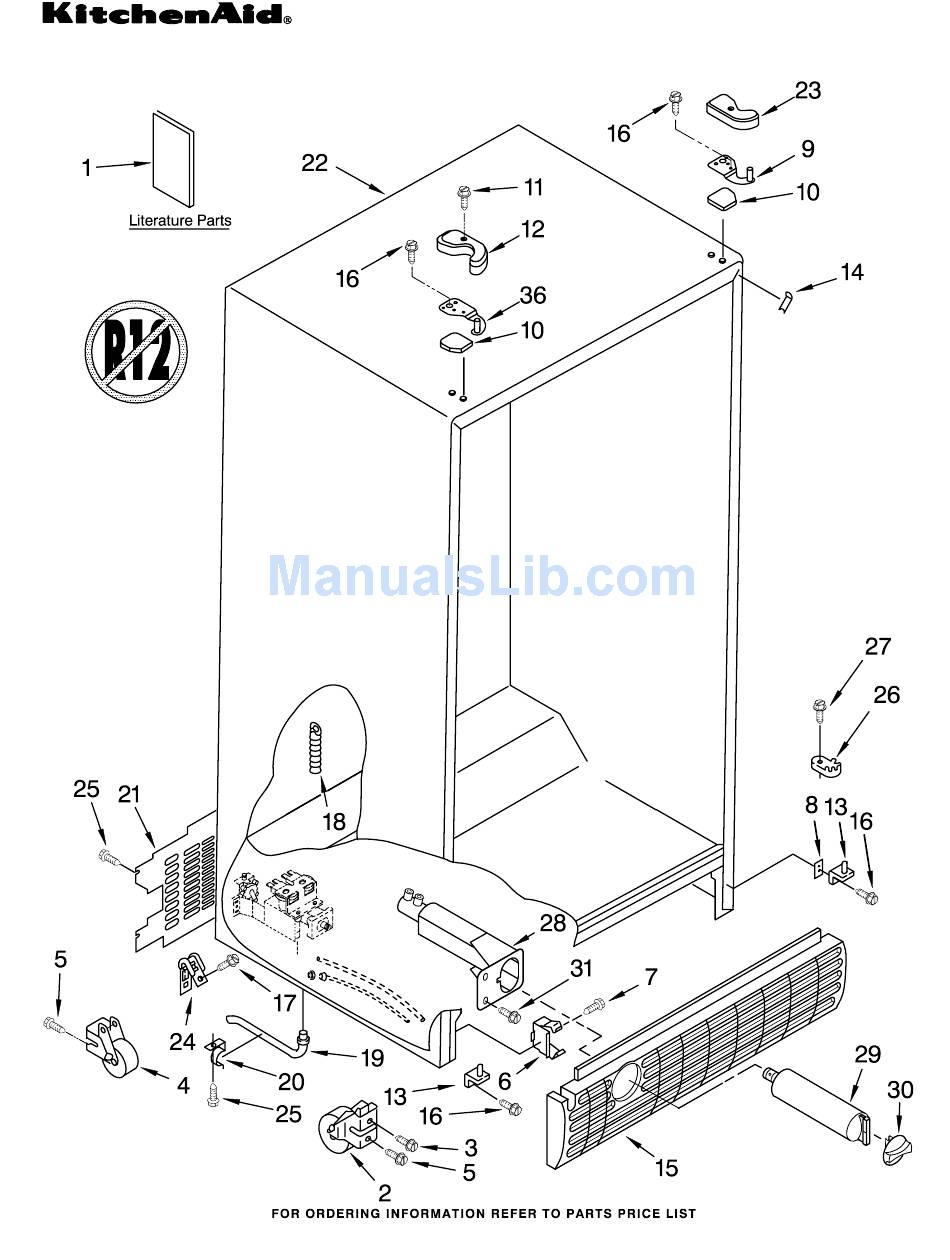

CABINET PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2174748 Front Roller (2) 1108438 Extension Tube LITERATURE PARTS 3400517 Screw 1108439 Clip, Drain Tube 2196236 Roller (Rear) (2) 2204203 Cover, Unit LIT2211899 Energy Guide 489427 Screw Cabinet (Not A LIT2206106 Owner’s Manual... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 8281158 Screw 2205813 Strap 2196483 Stud Assembly 2206273 Shelf Ladder 487539 Screw 486298 Screw (2) 1123919 Bracket Retainer... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14, & 15) 2174148 Glass, Cover 2189526 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12,... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 6 FREEZER LINER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2198697 Gasket 2205834 Basket, Top 2205833 Basket, Tall 2205826 Basket, Front Shelf Track 2181760 Right Side 2181759 Left Side 2205837 Shelf 2205832 Basket, Sloped 486298 Screw (8) 842534 Clip, Air Duct (2) 2198587 Cover, Emitter...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2198591 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 1 2207106BU Refrigerator Door (Includes Item #6) 2182399 Compartment Door 2205821 Shelf Bin (4) 3400012 Screw Door Gasket, Magnetic (Service) 2159083 Black 2193409 Beverage Holder 8 2207112BU Handle 2182178 Door Closer, Upper Cam 489420 Screw 2200082 Bracket, Door Stop...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 12 FREEZER DOOR PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 1 2216062BU Freezer Door (Includes #8 And Dispenser Front Parts) 2 2207112BU Handle 2171070 Shelf Bin (3) 2206178 Dispenser Harness 2154473 Connector 8281178 Screw (4) Door Gasket, Magnetic (Service) 2159082 Black 2198630 Trim, Door Shelf 2182179 Door Closer,...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 14 DISPENSER FRONT PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489000 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay 9 2207109BU Grille, Overflow 2180225 Water Fitting Assembly (Includes Water Tube) 2207151 Lever, Ice...
-
Page 15: Air Flow Parts

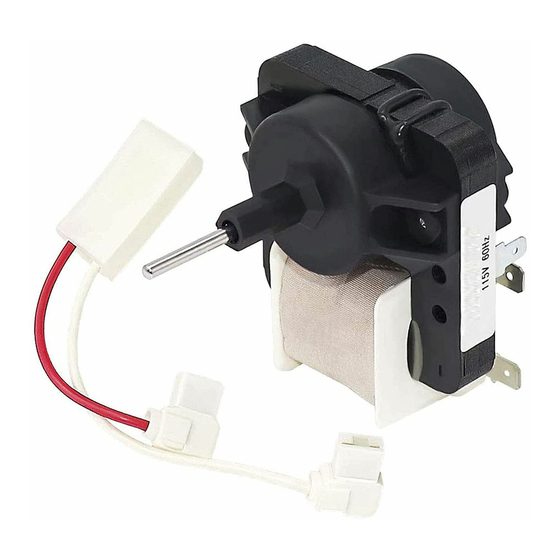

AIR FLOW PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2198595 Air Scoop 2198581 Air Duct, Upper 2198580 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator And Heater 2155789 Gasket,... -
Page 16: Control Parts
CONTROL PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2200134 Control Box 2172940 Window 1115375 Clip, Wiring 2182150 Tube Barrier, 2172906 Grommet, Light Bar 2200096 Cover, Light Lens Thermostat (RC) 2161466 Slide, Thermostat 2200099 Escutcheon, 489214 Screw (3) 489084 Screw (2) -
Page 17: Unit Parts
UNIT PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Standard Brand and Related Components. 4398872... - Page 18 UNIT PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 2208178 Compressor Following Parts Not Illustrated 2190685 Fan, Blade (Includes Items 2204242B Condenser Assembly 12, 13, 17, and Optional Parts Not Included 489464 Screw 27 &...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) 4398872... - Page 20 ICEMAKER PARTS For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part DESCRIPTION 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 2198677 Connector, Water Tube 489385 Clamp, Tube 2174358 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Model: KSRS25IHBU02 (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 8129 Coil Brush 799340 Enamel, Black 212643 Sealer, Gum (1 Qt. Uncut) (4 Feet) 799344 Enamel, White Customer Touch−Up Material...
