Summary of Contents for KitchenAid KSRS25QAAL01

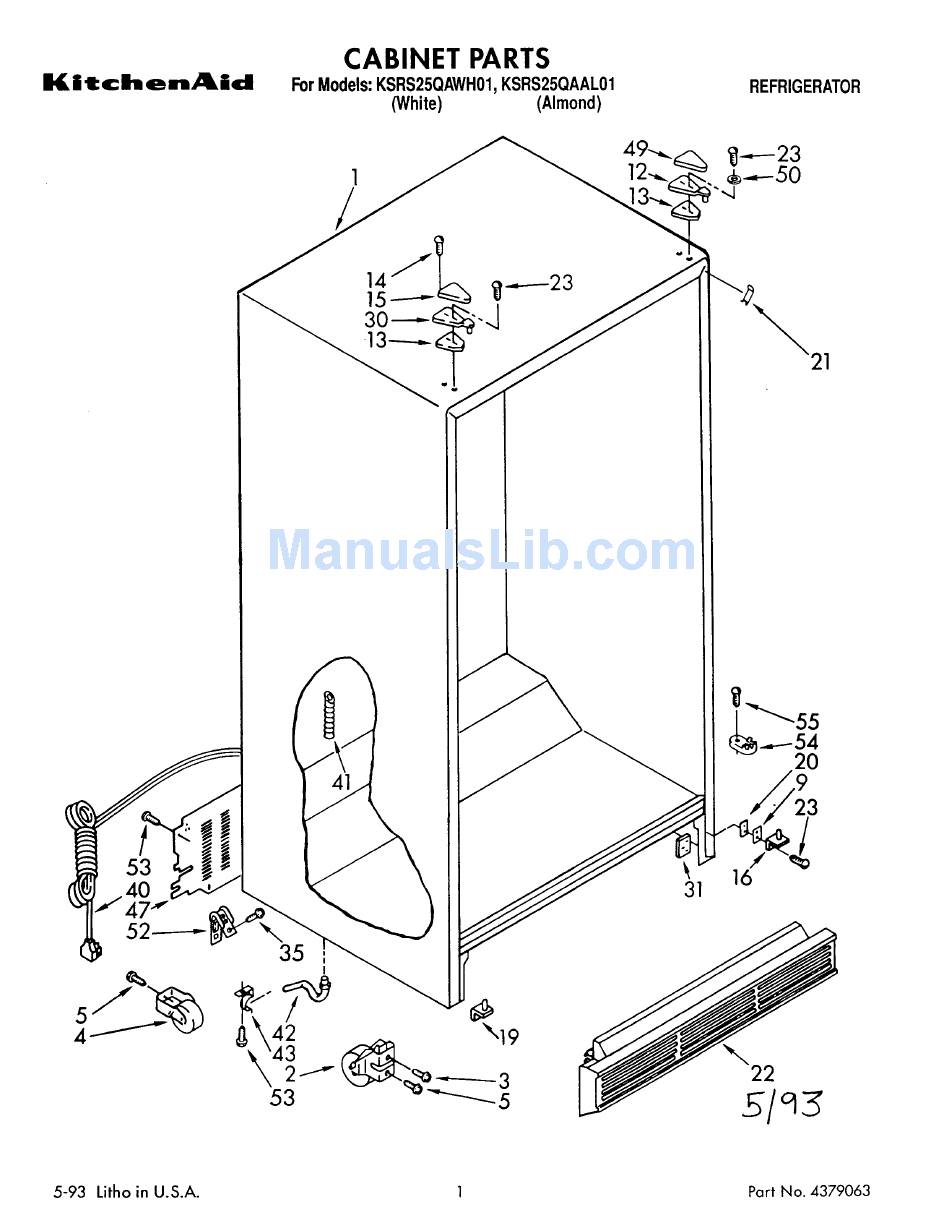

- Page 2 Cabinet (Not A Serviceable Part) 2152011 Front Roller (2) 489393 Screw 981122 Roller (Rear) (2) 488454 Screw 836196 Shim 1117937 Hinge Top (R.H.) 1123515 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White 2150343 Almond 2151629 Hinge Bottom (R.H) 2151630 Hinge Bottom (L.H) 1129868 Spacer, Hinge...
- Page 4 Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 1125675 Stud, Pan Cover 1110718 Stud (9) 1116794 Ladder, Shelf (2) 658944 Stud, Shelf (2) 486298 Screw (2) 487539 Screw 487559 Screw (2) 941839 Plug, Hole 1126137...
- Page 6 1125597 Shelf Assembly, Cantilever (2) 1125593 Glass, Shelf 1125594 Retainer, Glass 1125786 Gasket, Front 1126154 Cover, Pan Assembly (2) 1125705 Gasket, Cover (Front) 1125706 Gasket, Cover (Rear) 1125822 Glass, Cover (2) 2161760 Pan Shelf & Slide Assembly (Includes 13, 14, & 15) 1125595 Glass, Shelf 1125814...
- Page 8 Liner (Not A Seviceable Part) 1125824 Shelf, Top Compartment 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 1110779 Grommet (2) Slide, Container 1119237 Left Side 1119293 Right Side 2155683 Shelf 489100...
- Page 10 1118386 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 487523 Screw (2) 1115374 Clip, Wiring 2149192 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489242 Screw 851067 Socket, Light 1115339 Cover, Motor 487294 Screw 2152702 Ice Container 983668 Coupling, Conveyor 1118480...
- Page 11 Refinishing Material 799340 Enamel, Black (1 Qt. Uncut) 799344 Enamel, White (1 Qt. Uncut) 978883 Enamel, Almond (1 Qt. Uncut) Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108") 876370 Kit, Insulation (2 Pcs. x 3" x 24" X 48") 876305 Kit, Insulation (14 Pcs.
- Page 13 Refrigerator, Door Panel 1117863 White 1117867 Almond (Also Order Item 18) 1117999 Load, Lock (4) 1125733 Door, Compartment 1125695 Gasket, Door 1125981 Holder, Beverage 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 1125929 Door Gasket, Magnetic 509929 Cap, Hinge Sleeve 1107341 End Cap, Handle 941242...
- Page 15 Refrigerator, Door Panel 1117863 White 1117867 Almond (Also Order Item 18) 1117999 Load, Lock (4) 1125733 Door, Compartment 1125695 Gasket, Door 1125981 Holder, Beverage 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 1125929 Door Gasket, Magnetic 509929 Cap, Hinge Sleeve 1107341 End Cap, Handle 941242...
- Page 17 Freezer, Door Panel (Also Order Item 11) 1125957 White 1125963 Almond 988402 Tap Plate 1107215 Handle Assembly 939886 Seal, Hinge Pin 1107341 End Cap (2) 487909 Screw 1107651 Spacer, Handle 489075 Screw 1125676 Shelf Bin (4) 1125928 Door Gasket, Magnetic 876029 Foam Insulation 941242...
- Page 19 2154789 Heater, Dispenser 987048 Grommet 841707 Insert, Tube Housing, Dispenser 1124715 White 1125969 Almond 488687 Screw 987053 Tube, Water Frame, Slides 2152717 White 2152718 Almond Slide, Cube/Crush Switch 2152720 White 2152721 Almond 2147168 Door, Ice 2147167 Door Mechanism Assembly (Includes Item 9) 850145 Wire Connector 1120581...
- Page 20 1125801 Almond Cover, Housing (Includes Item 39) 1125673 White 1125805 Almond 2147172 Heat Shield, Frame 987049 Bracket, Water 488316 Screw 2147166 Wiring Assembly, Door 489000 Screw 489336 Washer...
- Page 22 486692 Speed Nut 1108179 Fan, Blade 2154011 Condenser Assembly 489337 Screw 2155658 Clip, Wire 489019 Screw 934011 Clip, Tube (3) 2161302 Sleeve 2158826 Dampener Strap 943322 Production 938384 Service Cover 1105055 Production 1108115 Service Overload 2162218 Production (Includes Relay) 1118841 Service (Includes Relay) Relay (See Overload) Running Capacitor...
- Page 23 Following Parts Not Illustrated and Optional Parts Not Included 978025 Valve, Access (1/4") 978026 Valve, Access (5/16") 978027 Valve, Access (3/8") 978028 Valve, Access (1/2") 978029 Valve, Access (5/8") 978030 Valve, Access (3/4") 876764 Valve, Access (3/16")
- Page 25 2155594 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 489176 Screw 2155575 Air Duct Freezer 1110666 Diffuser Air Duct 2149299 Fan Motor 2154800 Fan Blade 2155589 Fan Grommet (2) 1115381 Duct, Icemaker 2161327 Harness, Fan Evaporator, And Heater, Bi-Metal 2155789 Gasket Cover 2155774...
- Page 27 2155703 Control Box 1115241 Tube Barrier, Thermostat 489214 Screw 1123923 Light Switch 2154958 Defrost Timer 489398 Screw (2) 940014 Hole Plug 2161282 Thermostat Assembly 1126028 Window 1125592 Slide, Air Control 1125591 Slide, Thermostat 489242 Screw 1118072 Light Bar 2161306 Pivot Arm 627068 Screw 1110690...
