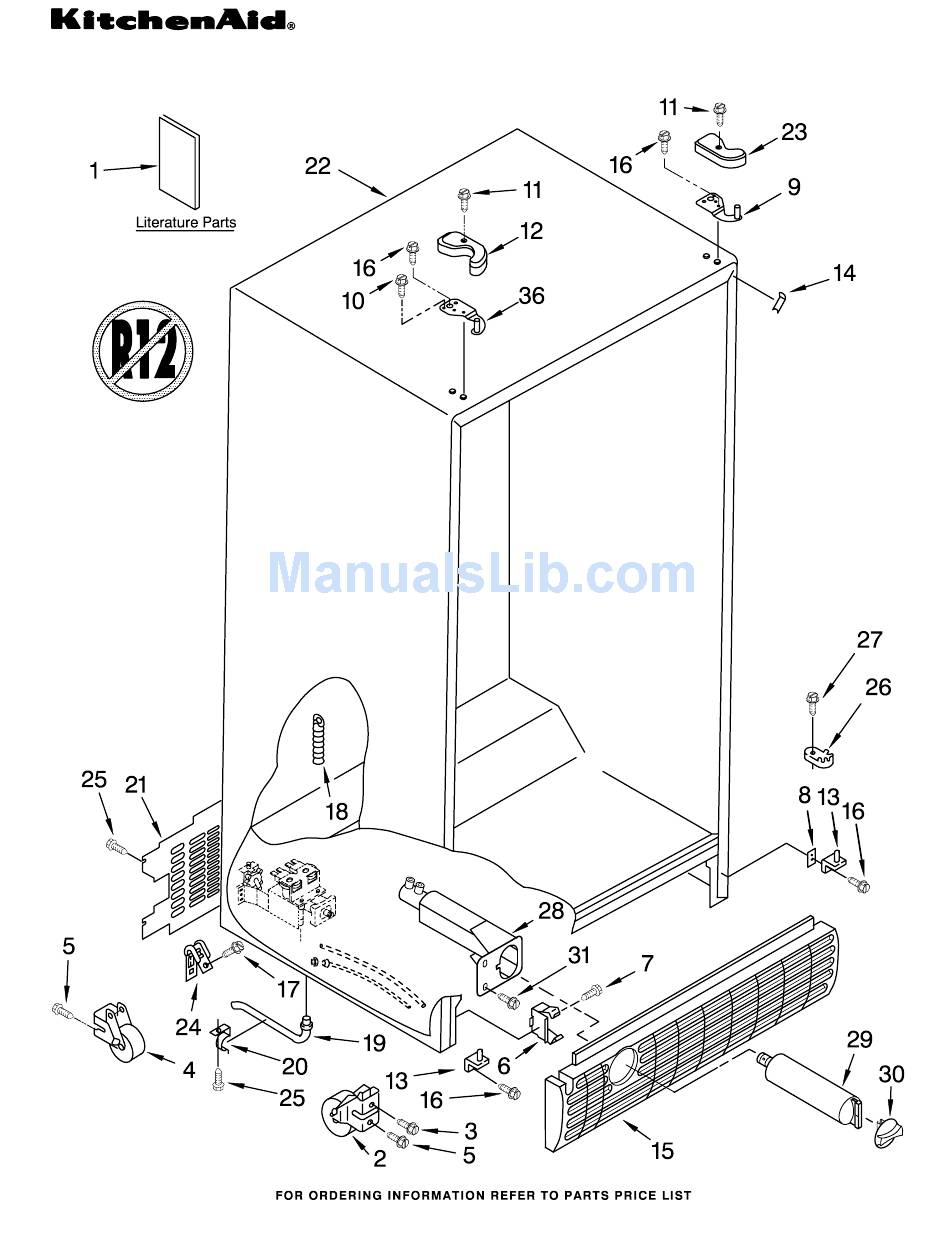

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 6−01 Printed In U.S.A. (mdg) Part No. 8197594 Rev. A...
- Page 2 CABINET PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2203771 Hinge Top (RC) 2204203 Cover, Unit LITERATURE PARTS 8281149 Screw Cabinet (Not A 8281227 Screw Serviceable Part) LIT2219701 Energy Guide Hinge Cover...
- Page 3 REFRIGERATOR LINER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 8281158 Screw 2205813 Strap 2196483 Stud Assembly 2206273 Shelf Ladder 487539 Screw...
-
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14, &... - Page 5 FREEZER LINER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594...
- Page 6 FREEZER LINER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2198697 Gasket 2205834 Basket, Top 2205833 Basket, Tall 2205826 Basket, Front Shelf Track 2181760 Right Side 2181759 Left Side 2205837 Shelf 2205832 Basket, Sloped...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2198591 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2207183W White 2207183T Biscuit 2207183B Black 2207183S Stainless 2207183BU Cobalt Blue 2182399 Compartment Door 2205821 Shelf Bin (4) 3400012 Screw Door Gasket, Magnetic (Service)
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594... - Page 12 FREEZER DOOR PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216062W White 2216062T Biscuit 2216062B Black 2216062S Stainless 2216062BU Cobalt Blue Handle 2207112W White 2207112T Biscuit 2207112B Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Switch Assembly Housing, Dispenser Lever, Ice (Not Serviced) Dispenser (Not Available Order #23) 3196165 Screw 2180259 White (White Overlay, Front 2194719 Retainer, Levers...
- Page 15 AIR FLOW PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan...
- Page 16 CONTROL PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2216588 Control Box 2196003 Tube Barrier, 527949 Light Bulb 2182150 Tube Barrier, Thermostat (FC) 2216587 Control Box Thermostat (RC) 2161460 Thermostat (RC) Harness...
- Page 17 UNIT PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Standard Brand and Related Components. 8197594...
- Page 18 UNIT PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 2161324 Clip 489478 Screw 2188537 Motor, Fan 2208280 Clip, Wire & Tube 2190685 Fan, Blade 1105523 Tray, Evaporator 2204484 Condenser Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) 8197594... - Page 20 ICEMAKER PARTS For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part DESCRIPTION 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25IKWH00, KSRS25IKBT00, KSRS25IKBL00, KSRS25IkSS00, KSRS25IKBU00 (White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue) Illus. Part Illus. Part DESCRIPTION DESCRIPTION Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 8129 Coil Brush 212643 Sealer, Gum Customer Touch−Up Material (4 Feet) 479502 Tape, Vinyl 350942 Primer, White...
