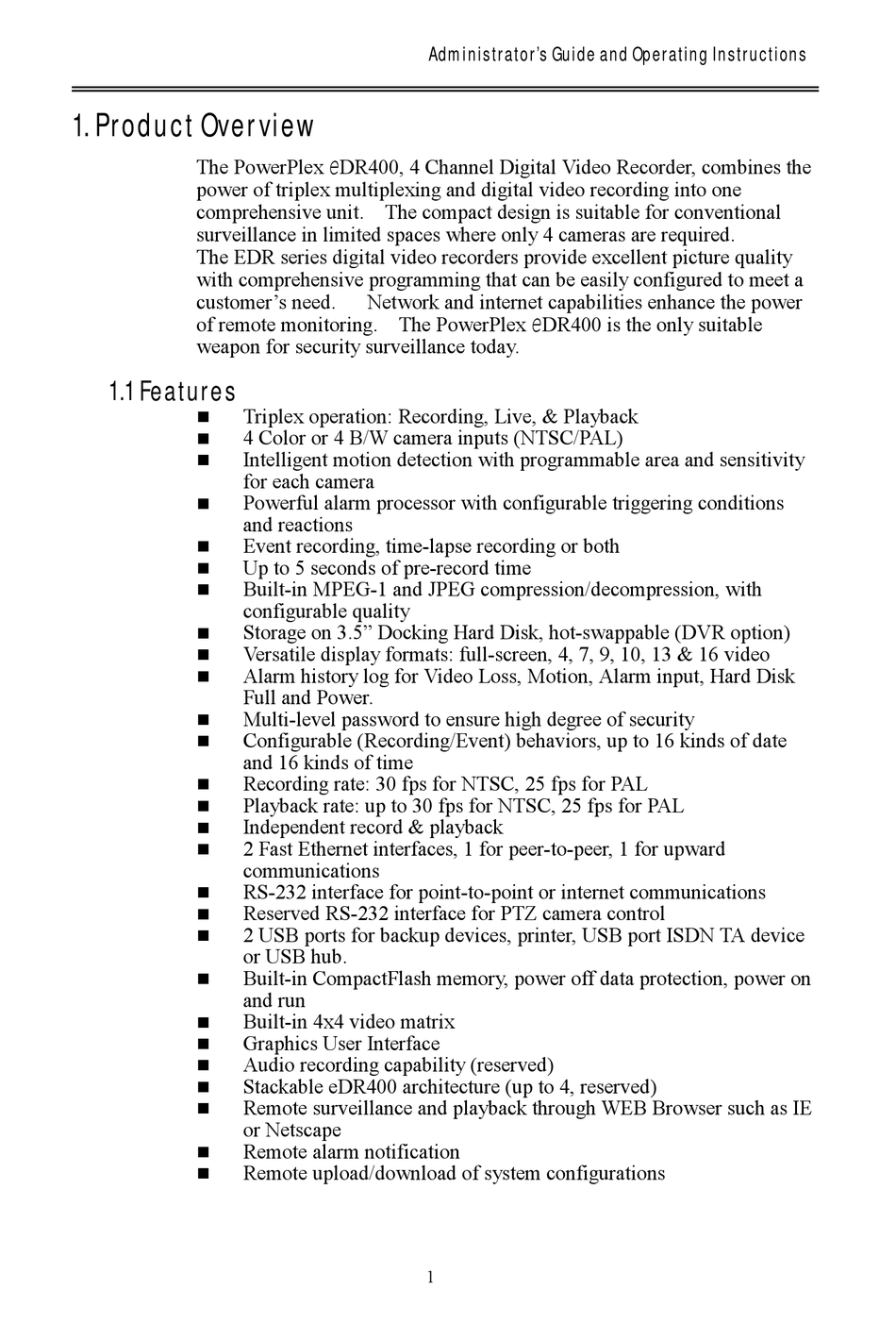

1. Product Overview

The PowerPlex
power of triplex multiplexing and digital video recording into one
comprehensive unit. The compact design is suitable for conventional
surveillance in limited spaces where only 4 cameras are required.
The EDR series digital video recorders provide excellent picture quality
with comprehensive programming that can be easily configured to meet a
customer's need.
of remote monitoring. The PowerPlex
weapon for security surveillance today.

1.1 Features

!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
!"
e
DR400, 4 Channel Digital Video Recorder, combines the
Network and internet capabilities enhance the power
Triplex operation: Recording, Live, & Playback
4 Color or 4 B/W camera inputs (NTSC/PAL)
Intelligent motion detection with programmable area and sensitivity
for each camera
Powerful alarm processor with configurable triggering conditions
and reactions
Event recording, time-lapse recording or both
Up to 5 seconds of pre-record time
Built-in MPEG-1 and JPEG compression/decompression, with
configurable quality
Storage on 3.5" Docking Hard Disk, hot-swappable (DVR option)
Versatile display formats: full-screen, 4, 7, 9, 10, 13 & 16 video
Alarm history log for Video Loss, Motion, Alarm input, Hard Disk
Full and Power.
Multi-level password to ensure high degree of security
Configurable (Recording/Event) behaviors, up to 16 kinds of date
and 16 kinds of time
Recording rate: 30 fps for NTSC, 25 fps for PAL
Playback rate: up to 30 fps for NTSC, 25 fps for PAL
Independent record & playback
2 Fast Ethernet interfaces, 1 for peer-to-peer, 1 for upward
communications
RS-232 interface for point-to-point or internet communications
Reserved RS-232 interface for PTZ camera control
2 USB ports for backup devices, printer, USB port ISDN TA device
or USB hub.
Built-in CompactFlash memory, power off data protection, power on
and run
Built-in 4x4 video matrix
Graphics User Interface
Audio recording capability (reserved)
Stackable eDR400 architecture (up to 4, reserved)
Remote surveillance and playback through WEB Browser such as IE
or Netscape
Remote alarm notification
Remote upload/download of system configurations
Administrator's Guide and Operating Instructions
e
DR400 is the only suitable
1
