Installation and Assembly:

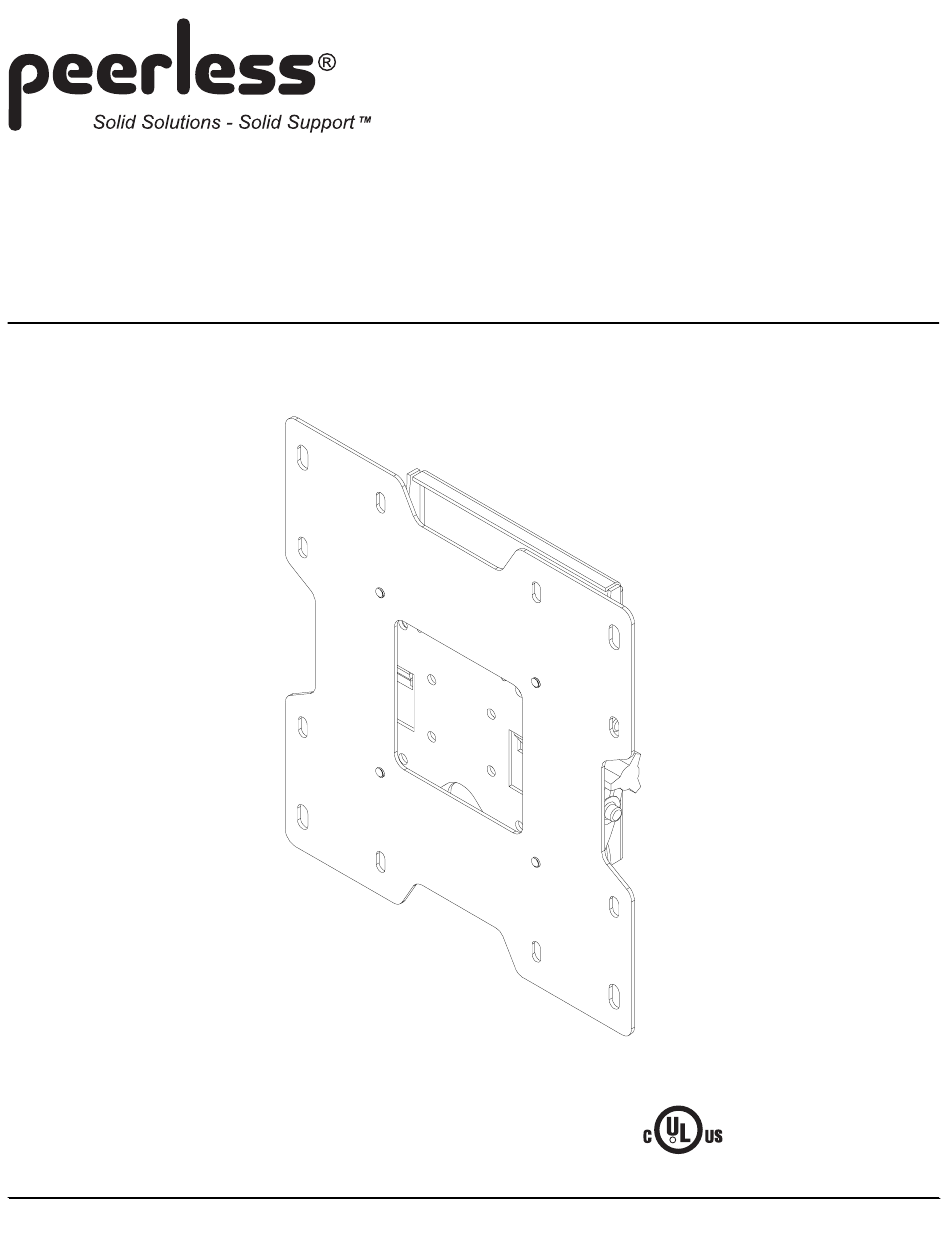

Universal Tilt Wall Mount for 10" - 37" LCD Flat Panel
Screens
Models: ST 632P, ST 632P-S, ST 632, ST 632-S, RTFPT 632, RTFPT 632-S
Features:
• Fits 10" to 37" flat panel screens
• One-touch tilt for effortless positioning and adjustment of the screen
• Integrated security features provide effective theft deterrence
1 of 16
ISSUED: 05-11-05 SHEET #: 201-9476-5 05-10-06
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
R
Max UL Load Capacity: 115 lb (52.2 kg)
Advertisement
Chapters
Table of Contents
Related Manuals for PEERLESS ST 632P
Summary of Contents for PEERLESS ST 632P
- Page 1 Installation and Assembly: Universal Tilt Wall Mount for 10" - 37" LCD Flat Panel Screens Models: ST 632P, ST 632P-S, ST 632, ST 632-S, RTFPT 632, RTFPT 632-S Features: This product is intended for use with UL • Fits 10" to 37" flat panel screens Listed products and must be installed by a qualified professional installer.
-
Page 2: Table Of Contents
WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings con- tained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless customer care at 1-800-729-0307. -
Page 3: Parts List
Parts List ST 632P, ST 632P-S, ST 632 ST 632-S RTFPT 632 RTFPT 632-S Description Qty Part # Part # Part # Part # A hook bracket 095-1346 095-4346 095-1346 095-4346 B tilt assembly 095-0359 095-0360 095-0359 095-0360 C adapter plate... -
Page 4: Installation To Single Wood Stud Wall
Installation to Single Wood Stud Wall WARNING • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based on its edges, draw a vertical line down the stud’s center. -
Page 5: Installation To Solid Concrete Or Cinder Block
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Attaching Adapter Plate To Screen With Vesa 200 Or 200 X 200 Mounting Pattern
Attaching Adapter Plate to Screen with VESA 200 or 200 x 200 Mounting Pattern Note: For VESA 75 mm and 100 mm patterns, see following page. Attach hook bracket (A) to adapter plate (C) using four M5 x 6 mm screws (J) and #10 washers (K) as shown. -
Page 7: Attaching Hook Bracket To Screen With Vesa 75 Or 100 Mounting Pattern
Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. ®... -
Page 8: Installing And Removing Flat Panel Screen
8 of 16 ISSUED: 05-11-05 SHEET #: 201-9476-5 05-10-06 © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners. - Page 9 Support mural universel inclinable pour écrans de 25 à 92,5 cm (10 à 37 po) Models: ST 632P, ST 632P-S, ST 632, ST 632-S, RTFPT 632, RTFPT 632-S Caractéristiques : • Convient à des écrans plats de 25 à 92,5 cm (10 à 37 po) •...
- Page 10 Remarque : Lisez entièrement la fiche d’instructions avant de commencer l’installation et l’assemblage. ADVERTISSEMENT • Ne commencez pas à installer votre produit Peerless avant d’avoir lu et assimilé les instructions et les mises en garde contenues dans cette fiche d’installation. Pour toute question concernant les instructions ou les mises en garde, appelez le service à...
-
Page 11: Liste Des Pieces
Liste des pièces ST 632P, ST 632P-S, ST 632 ST 632-S RTFPT 632 RTFPT 632-S Description Qty Part # Part # Part # Part # A Crochet de support 095-1346 095-4346 095-1346 095-4346 B ensemble d’inclinaison 095-0359 095-0360 095-0359 095-0360... -
Page 12: Installation Sur Un Mur A Simple Montant En Bois
Installation sur un mur à simple montant en bois ADVERTISSEMENT • Assurez-vous que le mur pourra soutenir sans difficulté la charge combinée de l’équipement, de toute sa visserie et de tous ses composants. Utilisez un localisateur de montants pour repérer les bords du montant. L’usage d’un localisateur bord à... -
Page 13: Installation Sur Du Beton Plein Ou Un Bloc De Beton De Machefer
ADVERTISSEMENT • Si vous installez des supports muraux Peerless sur un bloc de béton de mâchefer, vérifiez que vous disposez d’une épaisseur de béton d’au moins 34 mm (1 3/8 po) dans le trou destiné aux ancrages de béton. Ne percez pas dans des joints de mortier ! Veillez à... -
Page 14: Fixation D'une Plaque Adaptatrice Sur Un Écran À Configuration De Montage Vesa 200 Ou 200 X 200
Fixation d’une plaque adaptatrice sur un écran à configuration de montage VESA 200 ou 200 x 200 Remarque : Pour les configurations VESA 75 mm et 100 mm, consultez la page suivante. Fixez le crochet de support (A) sur la plaque adaptatrice (C) à... -
Page 15: Fixation D'un Crochet De Support Sur Un Écran À Configuration De Montage Vesa 75 Ou 100
Fixation d’un crochet de support sur un écran à configuration de montage VESA 75 ou 100 ADVERTISSEMENT • Si les vis ne sont pas enfoncées de trois tours complets dans les inserts ou si elles sont serrées au maximum sans parvenir à... -
Page 16: Montage Et Démontage D'un Écran Plat
16 of 16 ISSUED: 05-11-05 SHEET #: 201-9476-5 05-10-06 © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
