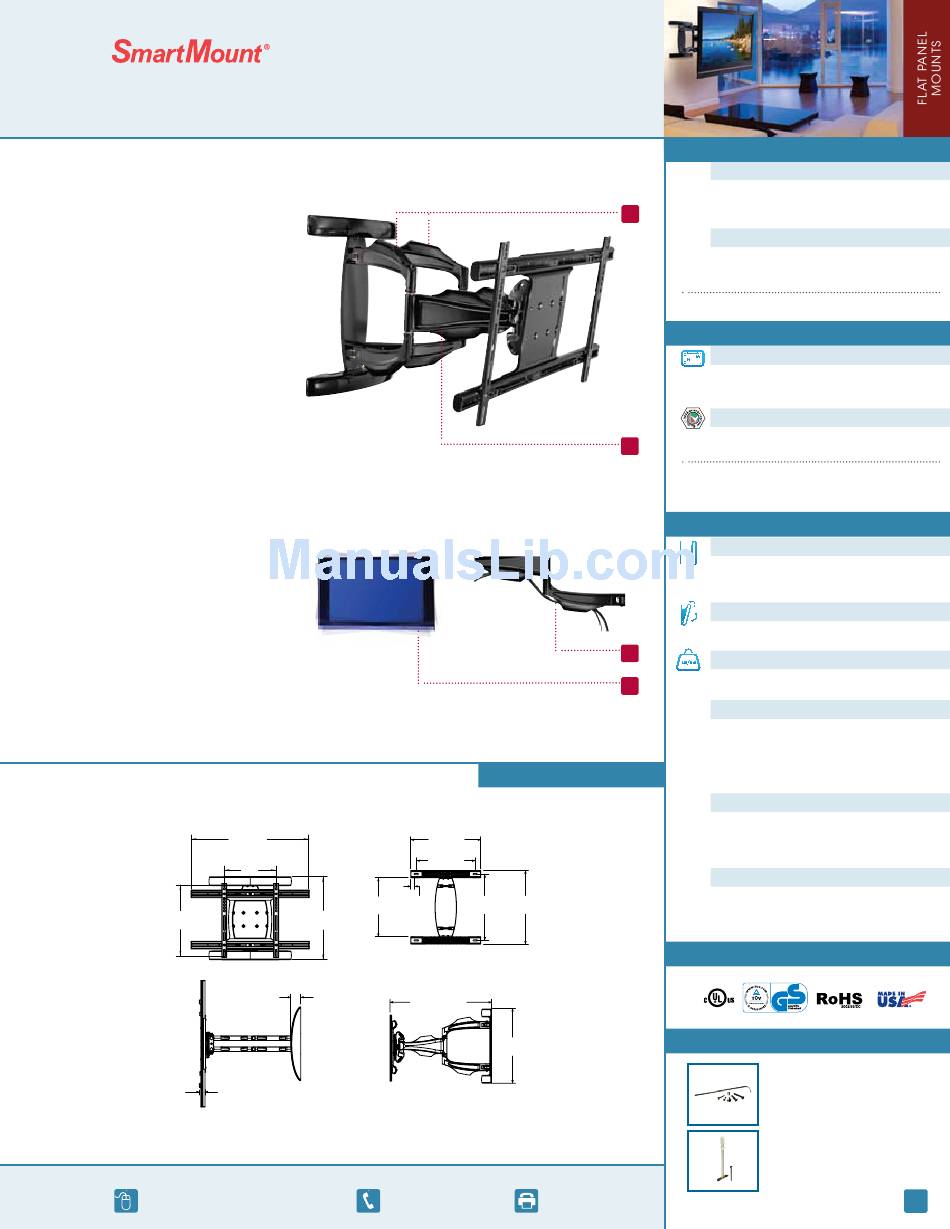

PEERLESS SMARTMOUNT SA763PU Specification

Articulating Wall Arm
For 37" to 63" Flat Panel Screens
1.
Dual Arm construction for
added strength and smooth
motion on larger screens
2.
Arms extends up to 27.55"
(700 mm) from wall
(including thickness of
screen adapter)
3. Minimalistic wall plate
footprint for increased
wall access and improved
aesthetic
4.
Horizontal adjustment up
to 4.5" (114 mm) for perfect
screen placement
5.
Integrated Cable
Management provides
ample area to run cables to
complete a professional and
discrete installation
6.
One-touch tilt allows
adjustment of +15°/-5°
without the use of tools
7.
±5° roll aid in screen leveling
8.
Screen can be rotated from
portrait to landscape without
removing the screen
9.
±0.5" vertical adjustment for
fine tuning screen position
For expanded product information and technical data visit www.peerlessmounts.com
28.68"
(728 mm)
9.72" - 27"
(247 - 686 mm)
17.29"
(439 mm)
FRONT VIEW
2.72"
(69 mm)
1.7"
(43 mm)
TOP VIEW
To verify mount compatibility with any LCD, plasma or projector model use MountFinder
CLICK:
www.peerlessmounts.com
Universal Models
19"
(483 mm)
16"
(406 mm)
16.07" 18"
1.06"
(408 mm) (27 mm) (457 mm)
20.23"
(514 mm)
WALL PLATE DETAIL
4.43" - 27.55"
(113 - 700 mm)
SIDE VIEW
CALL:
800.865.2112
1
2
5
7
TECHNICAL DRAWINGS
19.94"
(506 mm)
20.23"
(514 mm)
TM at www.peerlessmounts.com
FAX:
708.865.2941
MODELS
Universal Models:
Includes standard hardware (hex or Phillips) for attaching screen to mount
SA763PU
High gloss black
SA763PU-S
High gloss silver
Dedicated Models:
Includes standard hardware (hex or Phillips) for attaching screen to mount
Requires Screen Adapter to be Purchased Separately*
SA763P
High gloss black
* Dedicated adapter plates come in flat black and include security fasteners
SCREEN ADAPTER
Mounting pattern
27" W x 17.29" H
Universal Models:
(686 x 439 mm)
VESA ® pattern
up to 800 x 400 mm
Universal Models:
Dedicated Models:
Requires screen-specific PLP or LC
adapter to be purchased separately
SPECIFICATIONS
Distance from wall
4.43"–27.55"
Universal Models:
2.83"–25.83"
Dedicated Models:
Tilt | Swivel | Roll
+15/-5° | ±90° | ±5°
Max load
200 lb
(91 kg)
Product Dimensions
(W x H x D)
28.68" x 20.23" x 4.43"–27.55"
Universal Models:
(728 x 514 x 113–700 mm)
19.2" x 20.23" x 2.83"–25.83"
Dedicated Models:
(487 x 514 x 72–656 mm)
Mounting Surfaces
Wood stud, concrete, cinder
block and metal stud
(Metal stud accessory required)
Ship Weight
55 lb
Universal Models: (25 kg)
50 lb
Dedicated Models: (23 kg)
CERTIFICATIONS
ACCESSORIES
ACC925:
Security Fasteners ................ pg# 132
ACC415:
Metal stud Accessory ............ pg# 130
(113–700 mm)
(72–656 mm)
