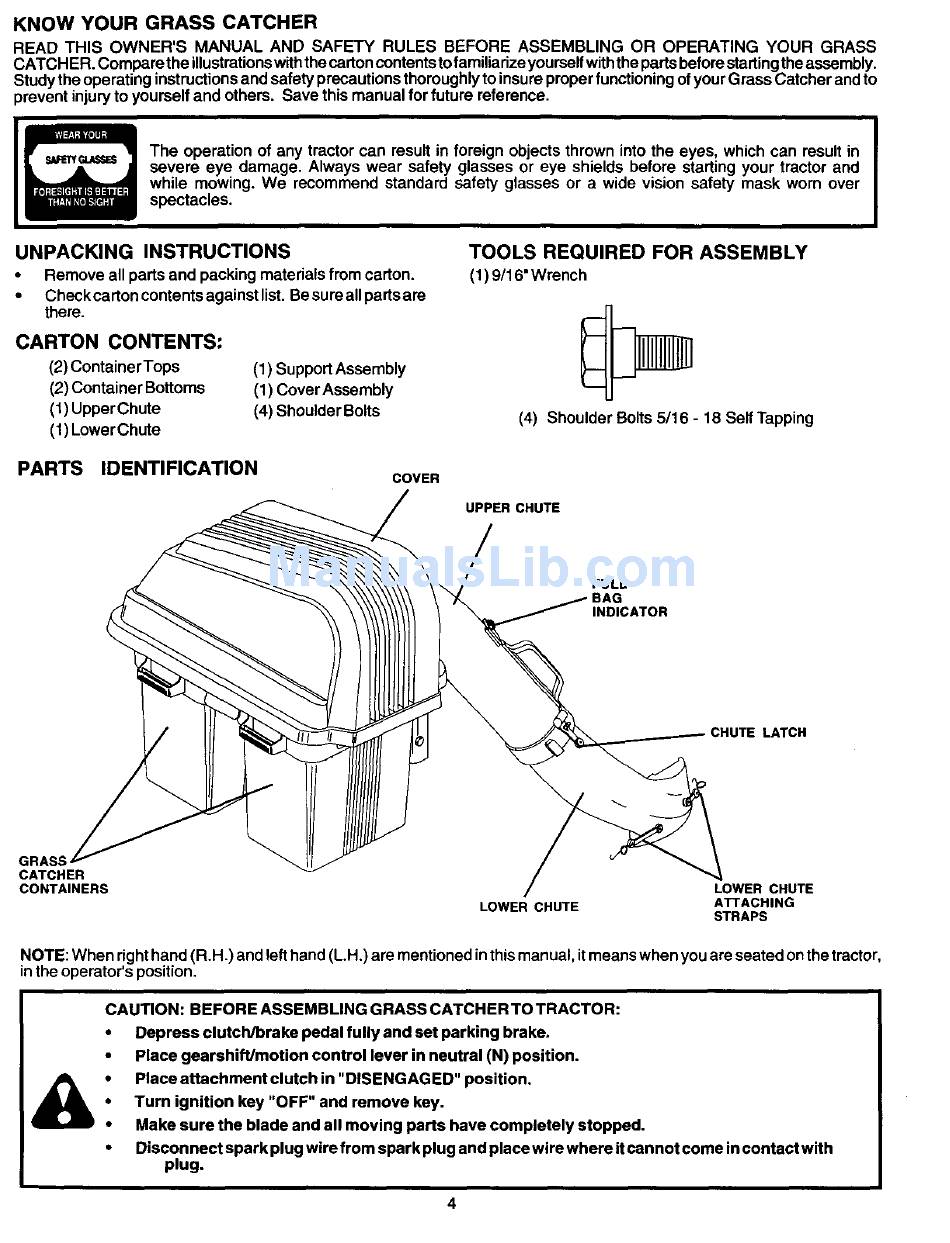

KNOW YOUR GRASS CATCHER
READ THIS OWNER'S
MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING
YOUR GRASS
CATCH ER. Compare the illustrations with the carton contents to familiadze yourself with the parts before starting the assembly.
Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to
prevent injury to yourself and others. Save this manual for future reference.
UNPACKING
INSTRUCTIONS
•
Remove all parts and packing materials from carton.
•
Check carton contents against list. Besureallpartsare
there.
CARTON
CONTENTS:
(2) ContainerTops
(2) Container Bottoms
(1) Upper Chute
(1) Lower Chute
(1) Support Assembly
(1) Cover Assembly
(4) Shoulder Bolts
PARTS
IDENTIFICATION
COVER
TOOLS
REQUIRED
FOR ASSEMBLY
(1) 9/16" Wrench
(4) Shoulder Bolts 5/16 - 18 Self Tapping
UPPER CHUTE
FULL
INDICATOR
LATCH
GRASS
CATCHER
CONTAINERS
LOWER
CHUTE
LOWER
CHUTE
ATTACHING
STRAPS
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the tractor,
in the operator's position.
A
CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
i
epress clutch/brake pedal fully and set parking brake.
Place gearshift/motion
control lever in neutral (N) position.
Place attachment clutch in "DISENGAGED"
position.
Turn ignition key "OFF" and remove key.
Make sure the blade and all moving parts have completely stopped.
•
Disconnect spark plug wire from spark plug and placewire whereit cannot come in contact with
plug.
