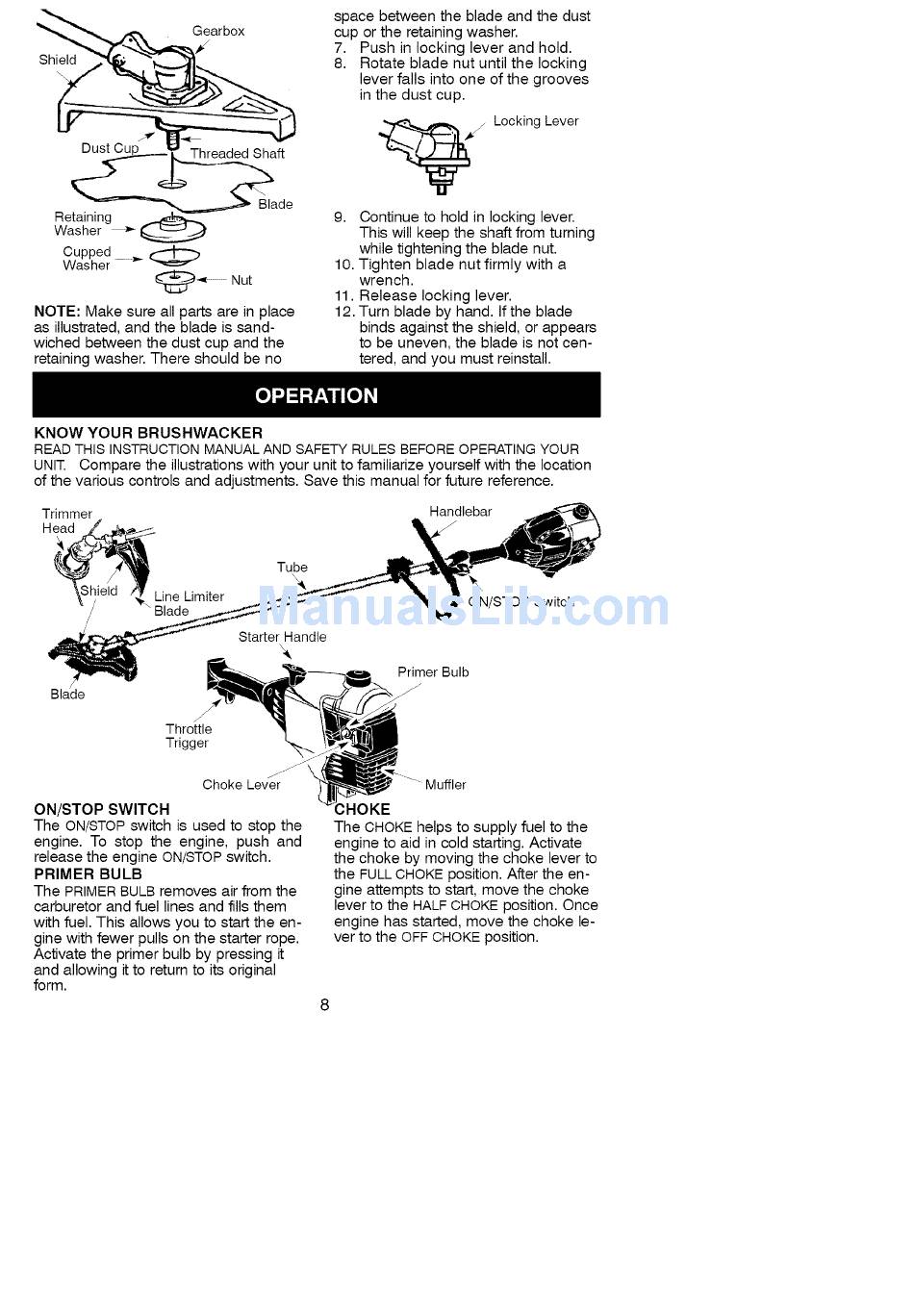

Gearbox
Shield
Dust Cu
Threaded
Shaft
Blade
Retaining
Washer
Cupped
Washer
)-_
Nut
NOTE: Make sure all parts are in place
as illustrated, and the blade is sand-
wiched between the dust cup and the
retaining washer. There should be no
space between the blade and the dust
cup or the retaining washer.
7. Push in locking lever and hold.
8. Rotate blade nut until the locking
lever falls into one of the grooves
in the dust cup.
_¢/
Locking
Lever
9.
Continue to hold in locking lever.
This will keep the shaft from turning
while tightening the blade nut.
10. Tighten
blade nut firmly with a
wrench.
11. Release locking lever.
12. Turn blade by hand. If the blade
binds against the shield, or appears
to be uneven, the blade is not cen-
tered, and you must reinstall.
KNOW YOUR BRUSHWACKER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location
of the various controls and adjustments.
Save this manual for future reference.
Blade
Tube
\
Starter Handle
Handlebar
ON/STOP
Switch
Primer Bulb
/-
Throttle
Trigger
Choke Lever
ON/STOP
SWITCH
The ON/STOP switch is used to stop the
engine. To stop the engine, push and
release the engine ON/STOP switch.
PRIMER BULB
The PRIMER BULB removes air from the
carburetor and fuel lines and fills them
with fuel. This allows you to start the en-
gine with fewer pulls on the starter rope.
Activate the primer bulb by pressing it
and allowing it to return to its original
form.
;HOKE
The CHOKE helps to supply fuel to the
engine to aid in cold starting. Activate
the choke by moving the choke lever to
the FULL CHOKE position. After the en-
gine attempts to start, move the choke
lever to the HALF CHOKE position. Once
engine has started, move the choke le-
ver to the OFF CHOKE position.
