ELECTRICAL CONNECTIONS
WARNING;
MAKE SURE THE UNIT IS OFFAND DIS-
CONNECTED
FROM
THE
POWER
SOURCE
BEFORE
INSPECTING
ANY
WIRING,

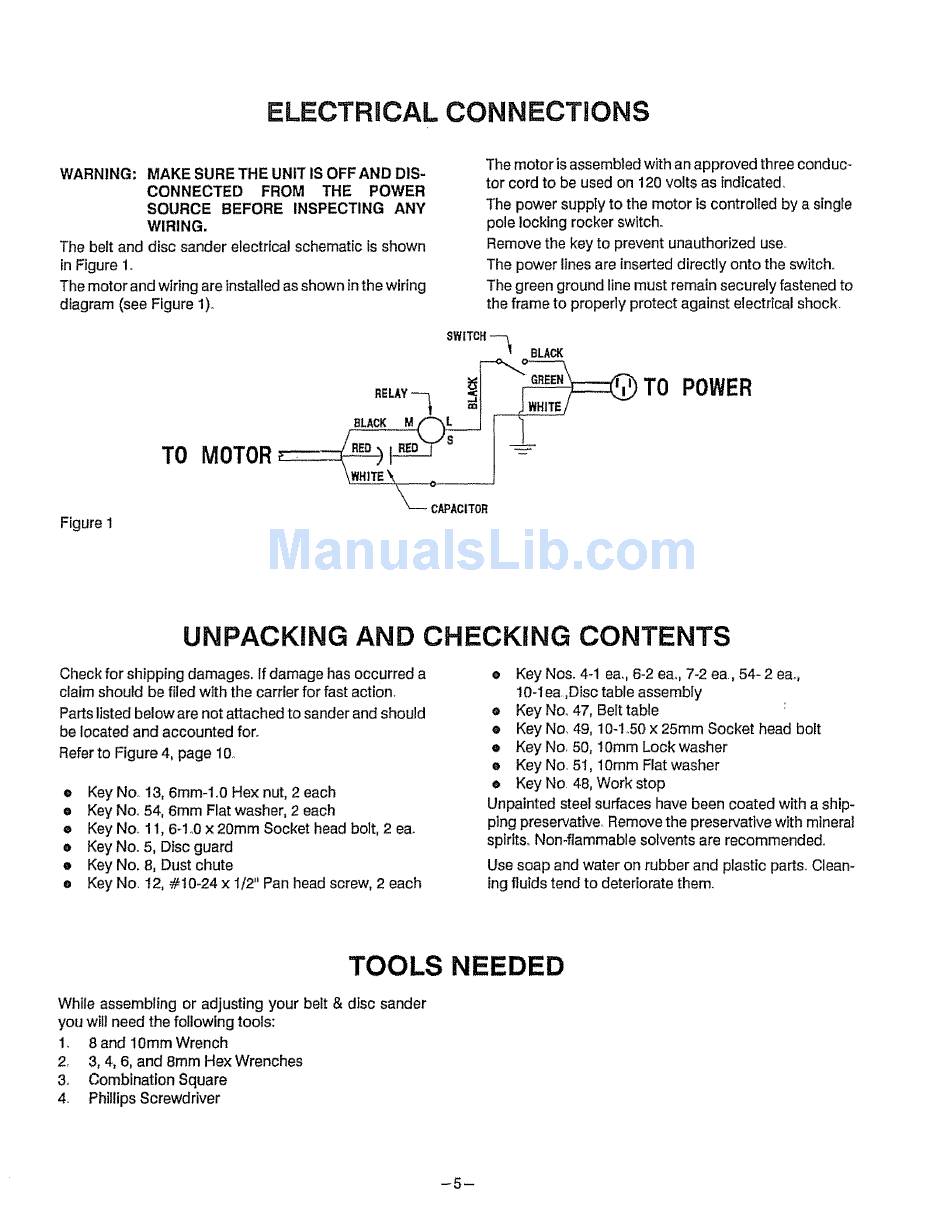

The belt and disc sander electrical schematic is shown
in Figure 1.
The motor and wiring are installed as shown in the wiring
diagram (see Figure 1)o
The motor is assembled with an approved three conduc-
tor cord to be used on 120 volts as indicated,
The power supply to the motor is controlled by a single
pole locking rocker switch.
Remove the key to prevent unauthorized use,.
The power lines are inserted directly onto the switch°
The green ground line must remain securely fastened to
the frame to properly protect against electrical shock.
Figure I
TO
$WETCH _
BLACK
BLACK
M
_
=
CAPACITOR
TO POWER
UNPACKING AND CHECKING
CONTENTS
Check for shipping damages. If damage has occurred a
claim should be filed with the carrier for fast action.
Parts listed below are not attached to sander and should
be located and accounted for.
Refer to Figure 4, page 10,
•
Key No,. 13, 6mm-loO Hex nut, 2 each
e
Key Noo 54, 6mm Flat washer, 2 each
e
Key No. 11, 6-1o0 x 20ram Socket head bolt, 2 ea.
e
Key No. 5, Disc guard
e
Key No. 8, Dust chute
e
Key No. 12, #t0-24 x 1/2" Pan head screw, 2 each
•
Key Nos. 4-1 ea., 6-2 ea. 7-2 ea., 54- 2 eao,
10-1 ea, Disc table assembly
•
Key Nor 47, Belt table
e
Key No. 49, 10-1_50 x 25mm Socket head bolt
•
Key No. 50, lOmm Lockwasher
e
Key No. 51, lOmm Flat washer
•
Key No. 48, Work stop
Unpainted steel surfaces have been coated with a ship-
ping preservative. Remove the preservative with mineral
spiritso Non-flammable solvents are recommended°
Use soap and water on rubber and plastic parts° Clean-
ing fluids tend to deteriorate them..
TOOLS NEEDED
While assembling or adjusting your belt & disc sander
you wil! need the following tools:
1.
8and lOmmWrench
2o
3, 4, 6, and 8ram Hex Wrenches
&
Combination Square
4o
Phillips Screwdriver
