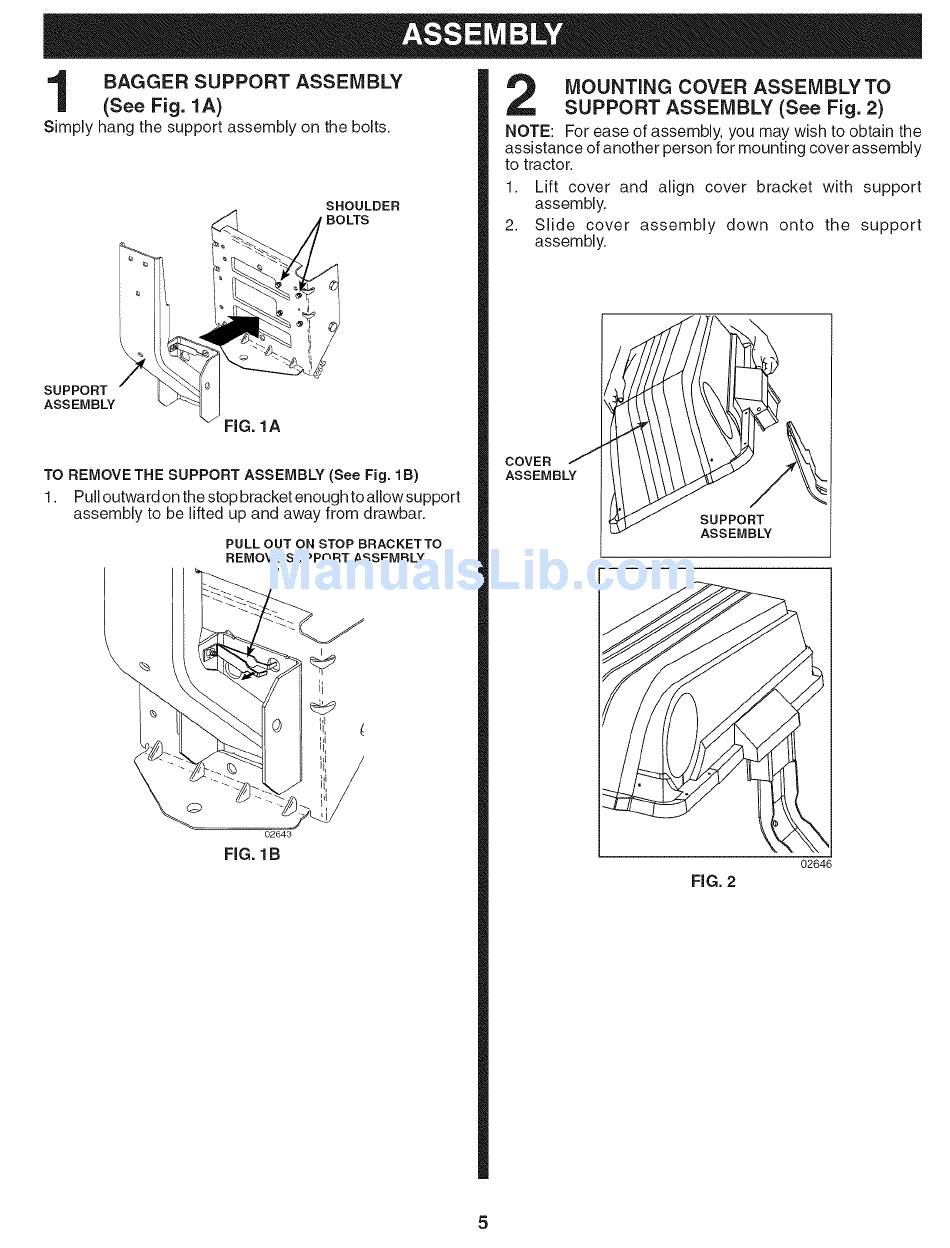

BAGGER SUPPORT
ASSEMBLY
(See Fig. 1A)
Simply hang the support assembly on the bolts.
SHOULDER
SUPPORT
ASSEMBLY
TO REMOVETHE SUPPORT ASSEMBLY (See Fig. 1B)
1.
Pull outward on the stop bracket enough to allow support
assembly to be lifted up and away from drawbar.
PULL OUT ON STOP BRACKETTO
REMOVE SUPPORT ASSEMBLY
02643
FiG. 1B
MOUNTING
COVER ASSEMBLY
TO
SUPPORT
ASSEMBLY
(See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting cover assembly
to tractor.
t.
Lift cover and align cover bracket
with support
assembly.
2.
Slide
cover
assembly
down
onto
the
support
assembly.
COVER
_"
ASSEMBLY
/
SUPPORT
ASSEMBLY
02646
FiG. 2
5
