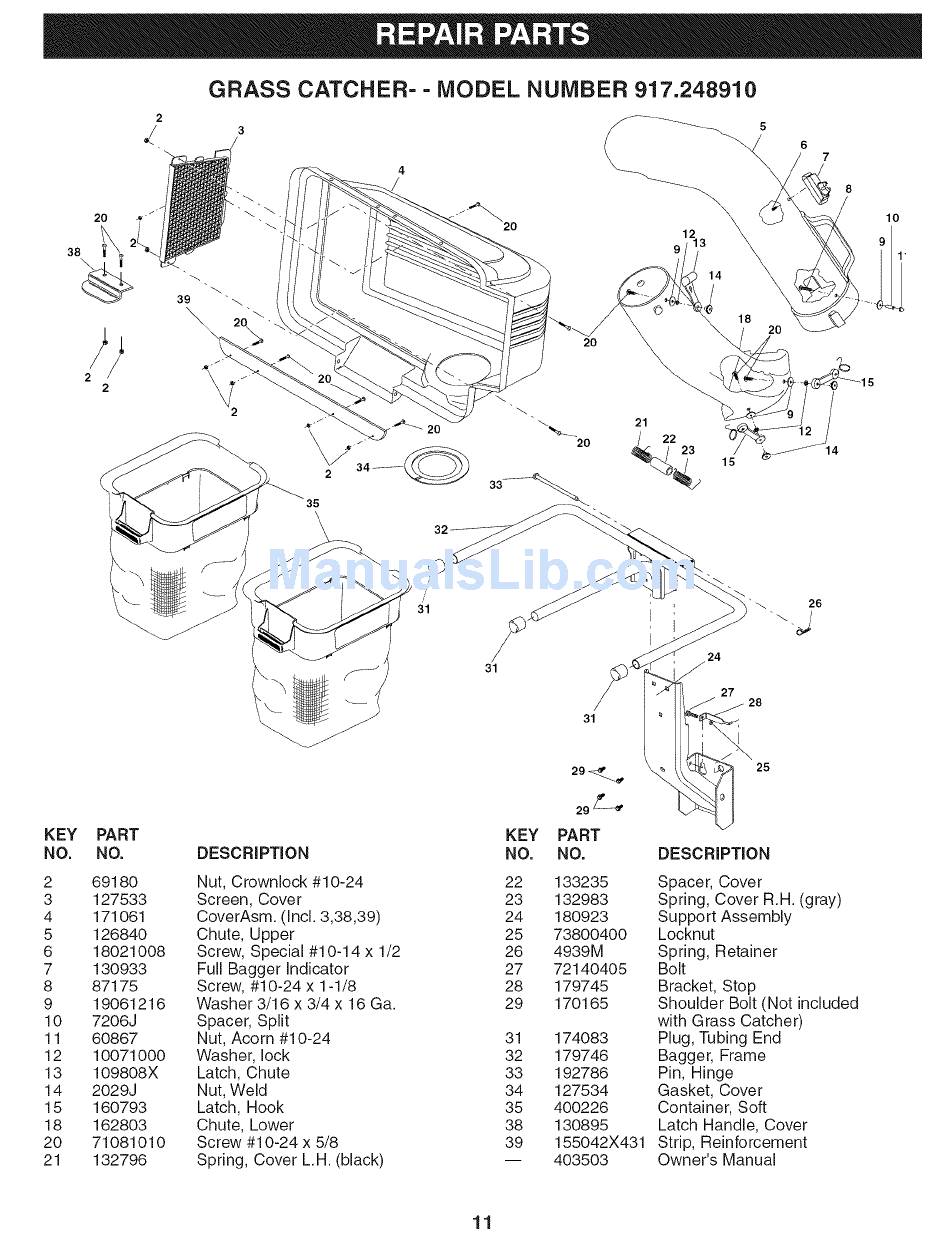

GRASS CATCHER-
- MODEL NUMBER
917.248910
1
2
2
20
18
\
\
-"_ "_- 20
_.%_.
21
.........
@
,,
/
/
31
31
27
25
KEY
NO.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
20
21
PART
NO.
69180
127533
171061
126840
18021008
130933
87175
19061216
7206J
60867
10071000
109808X
2029J
160793
162803
71081010
132796
DESCRiPTiON
Nut, Crownlock #10-24
Screen, Cover
CoverAsm. (Incl. 3,38,39)
Chute, Upper
Screw, Special #10-14 x 1/2
Full Bagger Indicator
Screw, #10-24 x 1-1/8
Washer 3/16 x 3/4 x 16 Ca.
Spacer, Split
Nut, Acorn #10-24
Washer, lock
Latch, Chute
Nut, Weld
Latch, Hook
Chute, Lower
Screw #10-24 x 5/8
Spring, Cover L.H. (black)
KEY
PART
NO.
NO.
22
133235
23
132983
24
180923
25
73800400
26
4939M
27
72140405
28
179745
29
170165
31
174083
32
179746
33
192786
34
127534
35
400226
38
130895
39
155042X431
--
403503
DESCRiPTiON
Spacer, Cover
Spring, Cover R.H. (gray)
Support Assembly
Locknut
Spring, Retainer
Bolt
Bracket, Stop
Shoulder Bolt (Not included
with Grass Catcher)
Plug, Tubing End
Bagger, Frame
Pin, Hinge
Gasket, Cover
Container, Soft
Latch Handle, Cover
Strip, Reinforcement
Owner's Manual
