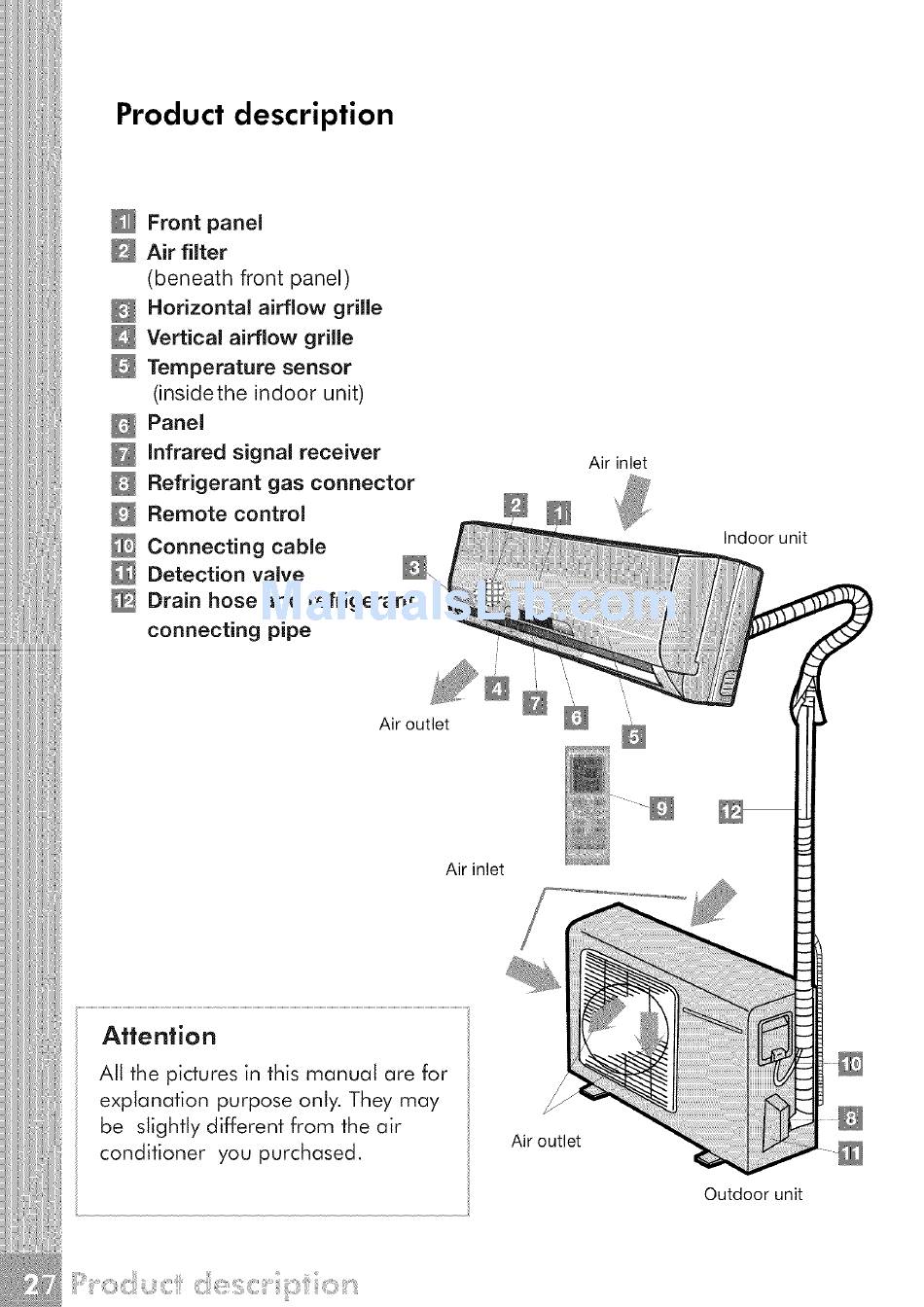

Product description
Front panel
Air filter
(beneath front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(insidethe indoor unit)
Panel
Infrared signal receiver
Refrigerant gas connector
Remote control
Connecting cable
Detection valve
Drain hose and refrigerant
connecting pipe
J
Air outlet
Air inlet
Indoor unit
Air inlet
Attention
All the pidures in this manual are for
explanation purpose only. They may
be slightly different from the air
conditioner you purchased.
Air outlet
Outdoor unit
