urface Cookin
Burner
Head
Gas
Figure1

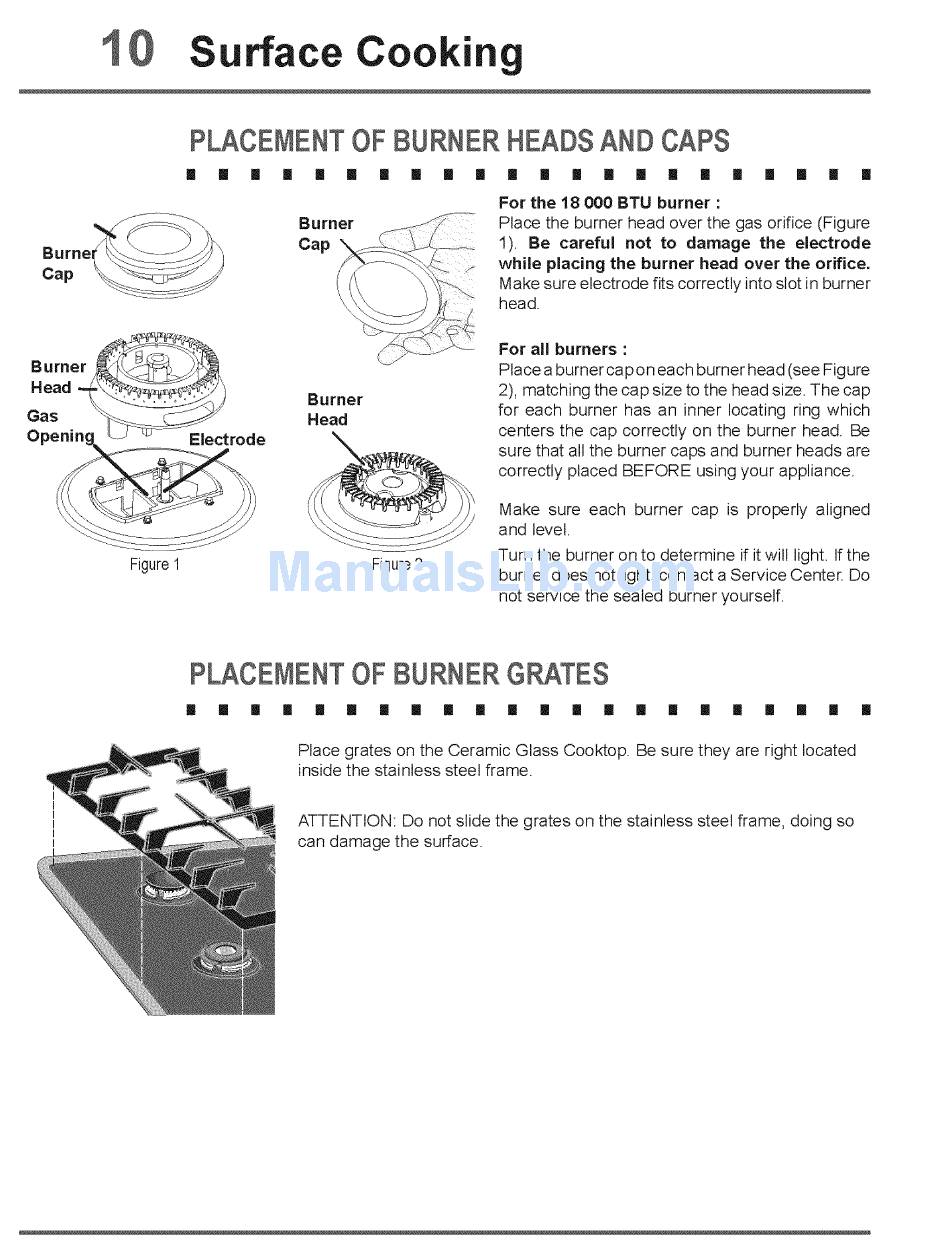

PLACEMENT OF BURNER HEADS AND CAPS
i
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
Electrode
Burner
_
Cap \ -_-'\__
t(tX.
Burner
Head
Figure2
For the 18 000 BTU burner :
Place the burner head over the gas orifice (Figure
1). Be careful
not to damage
the electrode
whi(e placing the burner head over the orifice.
Make sure electrode fits correctly into slot in burner
head.
For all burners
:
Place a burner cap on each burner head (see Figure
2), matching the cap size to the head size. The cap
for each burner has an inner locating ring which
centers the cap correctly on the burner head. Be
sure that all the burner caps and burner heads are
correctly placed BEFORE using your appliance.
Make sure each burner cap is properly aligned
and level,
Turn the burner on to determine if it will light. If the
burner does not light, contact a Service Center. Do
not ser,4ce the sealed burner yourself.
I
I
I
I
I
PLACEMENTOF BURNERG TES
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
Place grates on the Ceramic Glass Cooktop. Be sure they are right located
inside the stainless steel frame=
ATTENTION: Do not slide the grates on the stainless steel frame, doing so
can damage the surface.
[]
