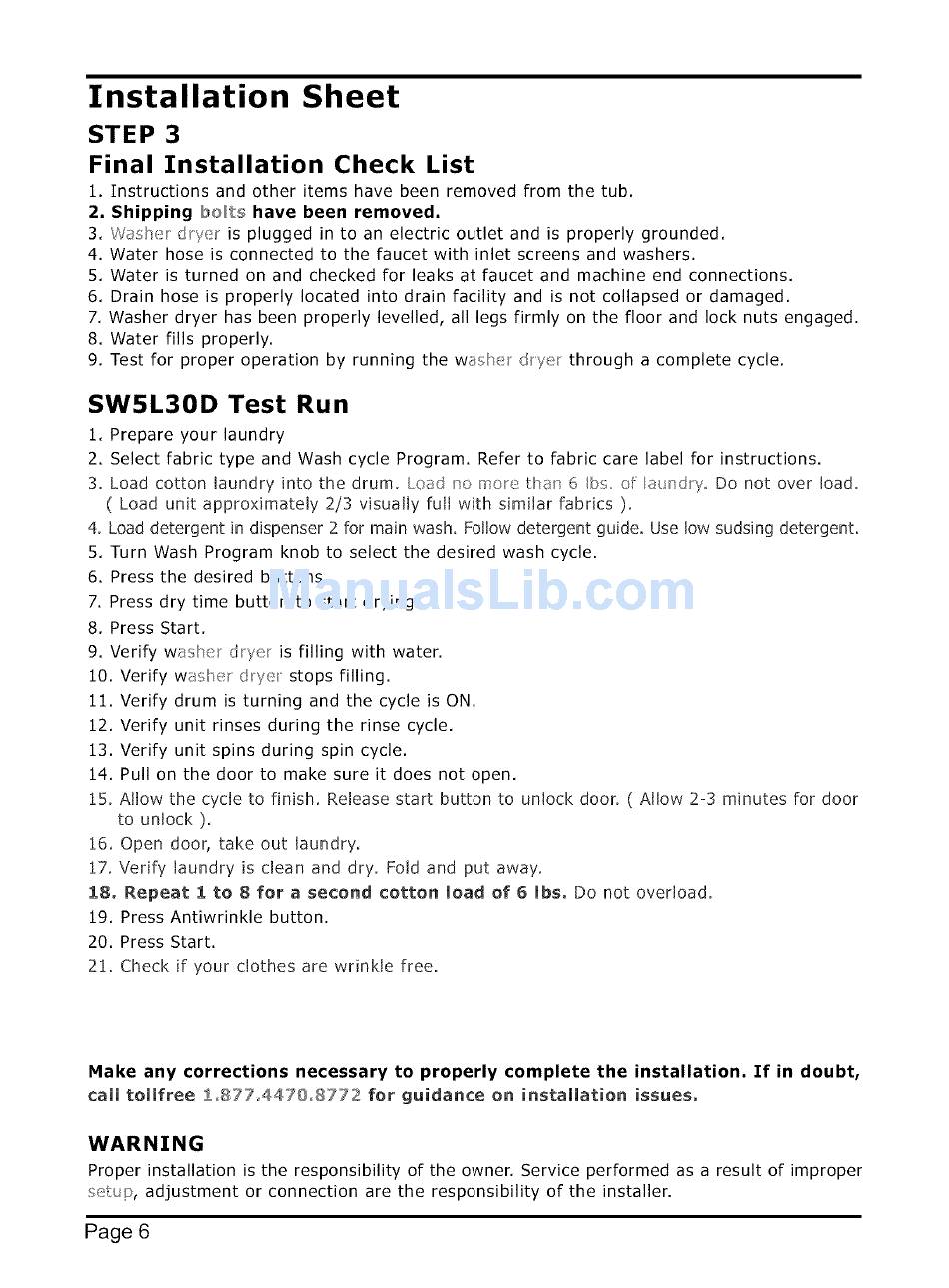

Installation Sheet
STEP 3
Final Installation Check List
1. Instructions and other items have been removed from the tub.
2, Shipping bolts have been removed.
3. '_/Va_,h_ _ dW:_ is plugged in to an electric outlet and is properly grounded.
4. Water hose is connected to the faucet with inlet screens and washers.
5. Water is turned on and checked for leaks at faucet and machine end connections.
6. Drain hose is properly located into drain facility and is not collapsed or damaged.
7. Washer dryer has been properly levelled, all legs firmly on the floor and lock nuts engaged.
8. Water fills properly.
9. Test for proper operation by running the w_;h<_ _!r,/_:_ through a complete cycle.
SW5L30D Test Run
1. Prepare your laundry
2. Select fabric type and Wash cycle Program. Refer to fabric care label for instructions.
3. Load cotton laundry into the drum. L_:] no moe It_ 0 Ibs of I;n_¢ y, Do not over load.
( Load unit approximately 2/3 visually full with similar fabrics ),
4. Load detergent in dispenser 2 for main wash. Follow detergent guide. Use low sudsing detergent.
5. Turn Wash Program knob to select the desired wash cycle.
6. Press the desired buttons.
7. Press dry time button to start drying.
8. Press Start.
9. Verify w<_sh_: _ bye is filling with water.
10. Verifyw4s_e drye stops filling.
11. Verify drum is turning and the cycle is ON.
12. Verify unit rinses during the rinse cycle.
13. Verify unit spins during spin cycle.
14. Pull on the door to make sure it does not open.
15. Allow the cycle to finish. Release start button to unlock door. ( Allow 2-3 minutes for door
to unlock ).
16. Open door, take out laundry.
17. Verify laundry is clean and dry. Fold and put away.
18o Repeat 1 to 8 for a second cotton load of 6 lbso Do not overload.
19. Press Antiwrinkle button.
20. Press Start.
21. Check if your clothes are wrinkle free.
Hake any corrections necessary to properly complete the installation, If in doubt,
call tollfree 1.877o4470.8772 for guidance on installation issues,
WARNING
Proper installation is the responsibility of the owner. Service performed as a result of improper
se_ p, adjustment or connection are the responsibility of the installer.
Page 6
