KitchenAid KECC507RBB02 Parts List

30" electric ceran cooktop
Hide thumbs


Advertisement

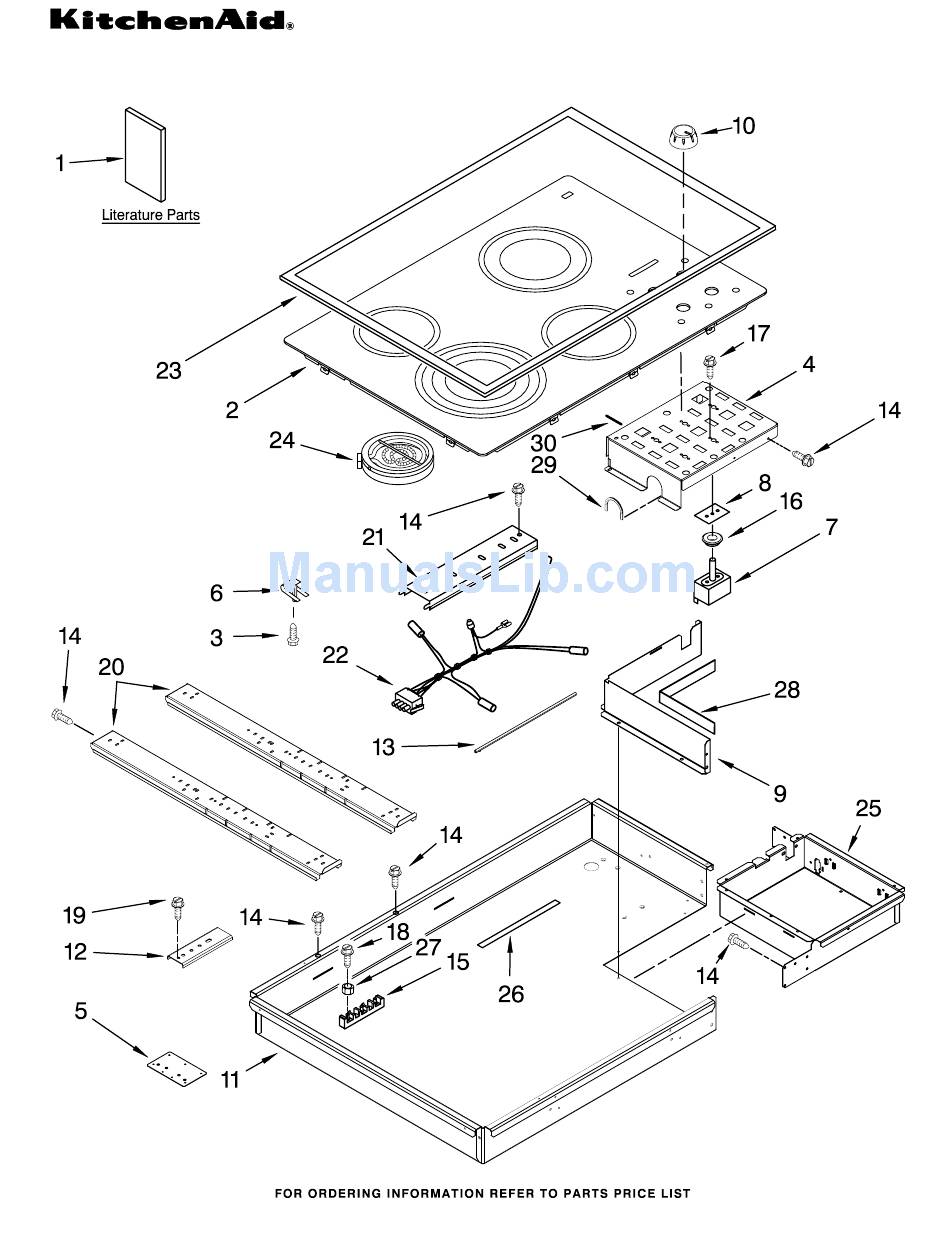

COOKTOP PARTS
30" ELECTRIC
CERAN
For Models: KECC507RBL02, KECC507RWW02, KECC507RBB02, KECC507RSS02
COOKTOP
(Black)
(Pure White)
(Pure Biscuit)
(Stainless)
1−07 Litho in U.S.A.(amd)
1
Part No. W10121456 Rev. A

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KECC507RBB02

  Summary of Contents for KitchenAid KECC507RBB02

  • Page 1 COOKTOP PARTS 30" ELECTRIC CERAN For Models: KECC507RBL02, KECC507RWW02, KECC507RBB02, KECC507RSS02 COOKTOP (Black) (Pure White) (Pure Biscuit) (Stainless) 1−07 Litho in U.S.A.(amd) Part No. W10121456 Rev. A...
  • Page 2 COOKTOP PARTS For Models: KECC507RBL02, KECC507RWW02, KECC507RBB02, KECC507RSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8286344 Rail, Element Literature Parts Switch, Infinite 8286055 Lamp, Hot Installation 9763763 Single (2) Surface Indicator Instructions 9763764 Dual 8285709 Frame, Cooktop 9763765 Triple...
  • Page 3 OPTIONAL PARTS For Models: KECC507RBL02, KECC507RWW02, KECC507RBB02, KECC507RSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part DESCRIPTION Miscellaneous OPTIONAL PARTS 3172515 Mounting, Hardware Kit 3192408 Bracket Support (2) 8286642 Tape, Foam FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 4456028 Wire, Jumper 242828 Wire, Black 12 Ga.

This manual is also suitable for:

Kecc507rbl02Kecc507rss02Kecc507rww02
