KitchenAid KECC507RBL06 Parts List

30" electric ceran cooktop
Hide thumbs


Advertisement

COOKTOP PARTS
30" ELECTRIC
CERAN
For Models: KECC507RBL06, KECC507RSS06
COOKTOP
(Black)
(Stainless)
1
Part No. W10468909 Rev. A
11−11 Litho in U.S.A. (MP)(bay)

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KECC507RBL06

  Summary of Contents for KitchenAid KECC507RBL06

  • Page 1 COOKTOP PARTS 30" ELECTRIC CERAN For Models: KECC507RBL06, KECC507RSS06 COOKTOP (Black) (Stainless) Part No. W10468909 Rev. A 11−11 Litho in U.S.A. (MP)(bay)

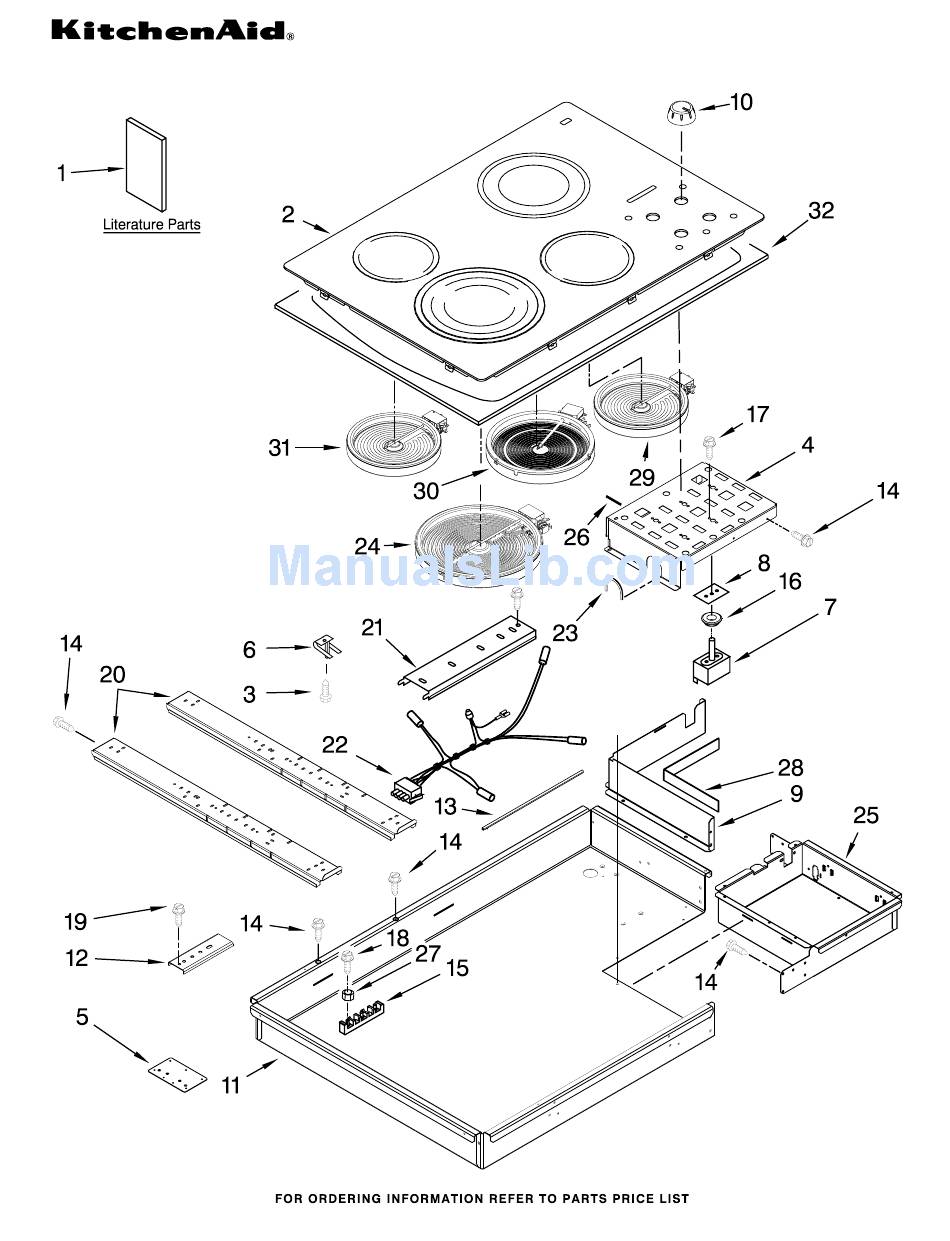

  • Page 2 COOKTOP PARTS For Models: KECC507RBL06, KECC507RSS06 (Black) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Switch, Infinite 9763517 Rail, Element Installation 9763763 Single 8286344 Rail, Element Instructions 9763764 Dual 8286055 Lamp, Hot 8286066 Cooktop 9763765 Triple Surface Indicator 8304571 Undercounter Oven 3183956 Seal, Switch Shaft...
  • Page 3 OPTIONAL PARTS For Models: KECC507RBL06, KECC507RSS06 (Black) (Stainless) Illus. Part DESCRIPTION Miscellaneous OPTIONAL PARTS 8286642 Tape, Foam FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS W10435988 Harness, Main 8286382 Clip, Harness 3400015 Screw 3196160 Screw 8286338 Conduit, Harness 8286238 Thermostat W10468909...
