KitchenAid KECC507RSS04 Parts List

30" electric ceran cooktop
Hide thumbs


Advertisement

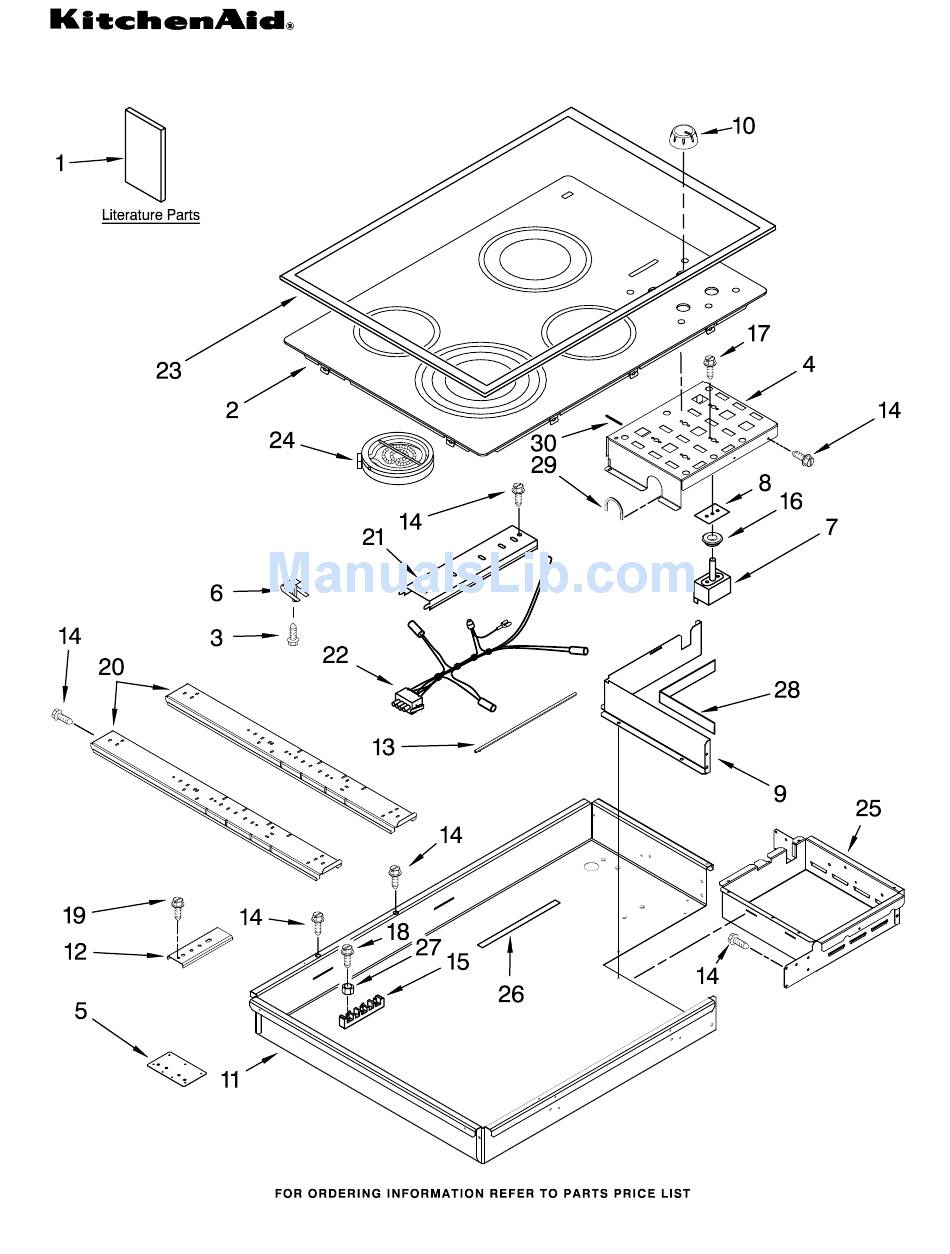

COOKTOP PARTS
30" ELECTRIC
CERAN
For Models: KECC507RSS04
COOKTOP
(STAINLESS)
1−08 Litho in U.S.A.(amd)
Part No. W10183544 Rev. A
1

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KECC507RSS04

  Summary of Contents for KitchenAid KECC507RSS04

  • Page 1 COOKTOP PARTS 30" ELECTRIC CERAN For Models: KECC507RSS04 COOKTOP (STAINLESS) 1−08 Litho in U.S.A.(amd) Part No. W10183544 Rev. A...
  • Page 2 COOKTOP PARTS For Models: KECC507RSS04 (STAINLESS) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Switch, Infinite 8286344 Rail, Element Literature Parts 9763763 Single (2) 8286055 Lamp, Hot Installation 9763764 Dual Surface Indicator Instructions 9763765 Triple 23 W10142240 Frame, Cooktop 8286066 Cooktop 3183956 Seal, Switch Shaft Element, Surface...
  • Page 3 OPTIONAL PARTS For Models: KECC507RSS04 (STAINLESS) Illus. Part DESCRIPTION Miscellaneous OPTIONAL PARTS 8286642 Tape, Foam FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 4456028 Wire, Jumper 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga.
