KitchenAid KECC507RBL03 Parts Manual

30" electric ceran cooktop
Hide thumbs


Advertisement

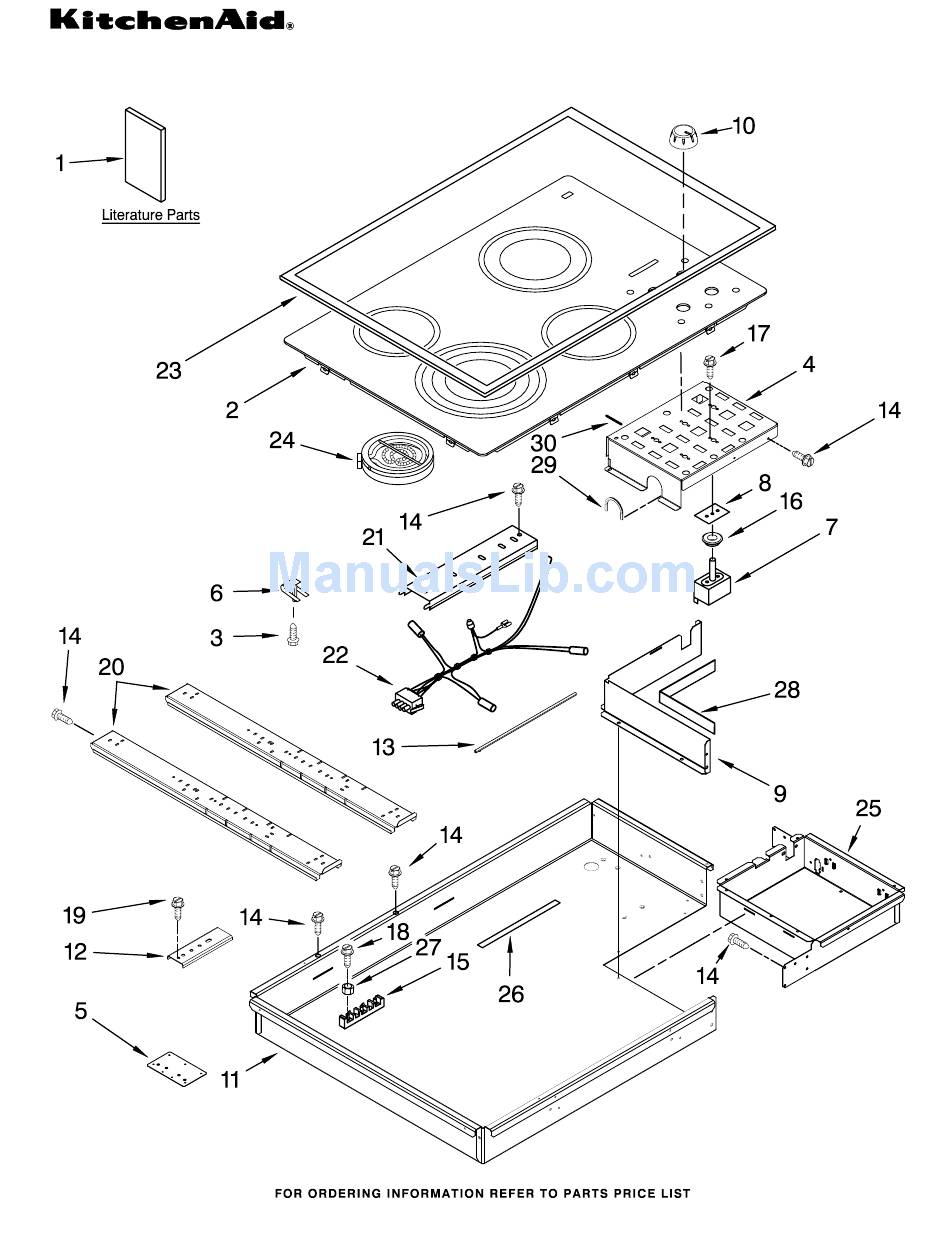

COOKTOP PARTS
30" ELECTRIC
CERAN
For Models: KECC507RBL03, KECC507RWW03, KECC507RSS03
COOKTOP
(Black)
(Pure White)
(Stainless)
9−07 Litho in U.S.A.(amd)
1
Part No. W10163516 Rev. A
