KitchenAid KSSS42QHX00 Parts List

KitchenAid KSSS42QHX00 Parts List

42" built in refrigerator
Hide thumbs

Advertisement

Table of Contents

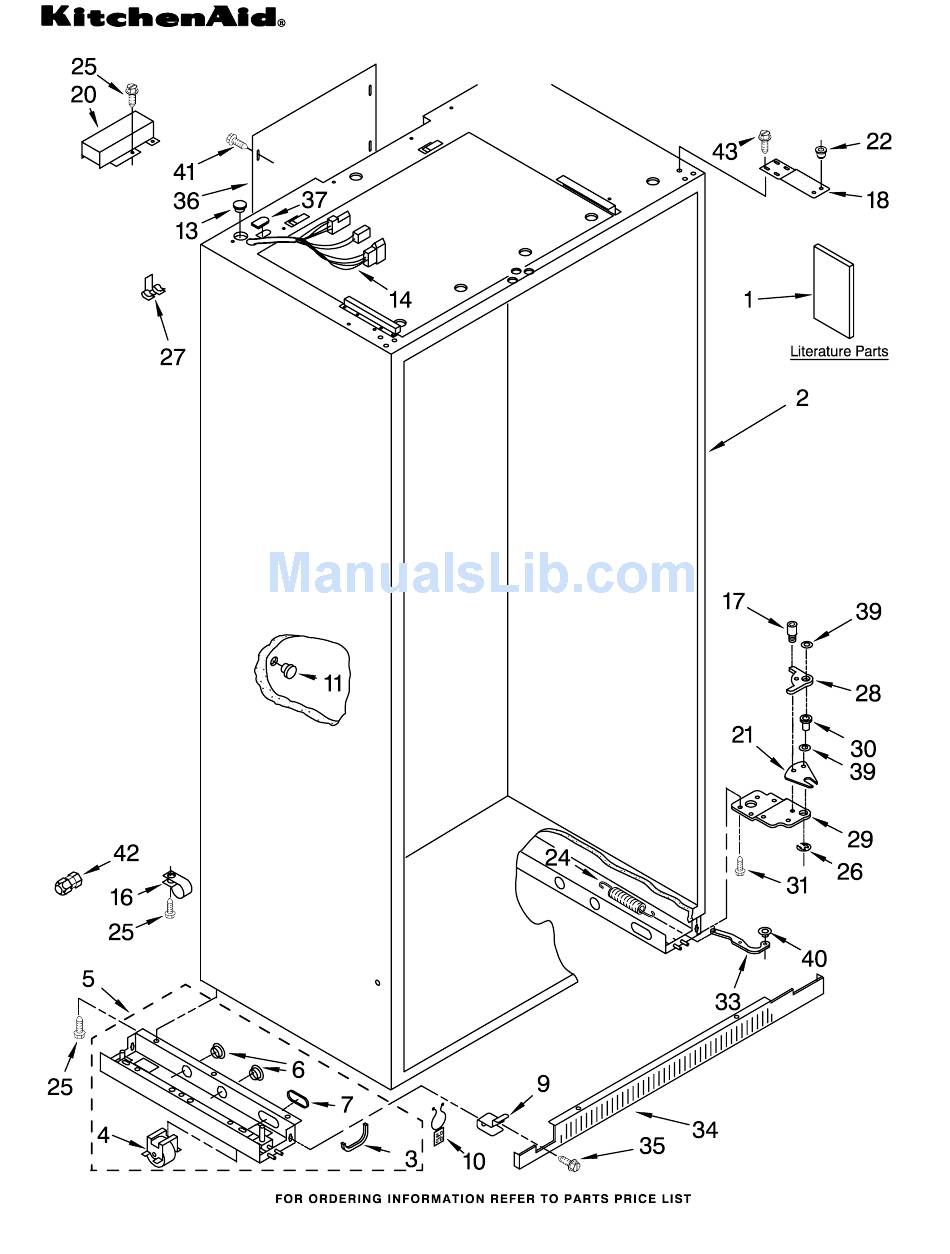

CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: KSSS42QHX00
(Stainless Steel)
4−04 Litho In U.S.A. (mek)
1
Part No. 4398500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42QHX00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS42QHX00

Summary of Contents for KitchenAid KSSS42QHX00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSS42QHX00 (Stainless Steel) 4−04 Litho In U.S.A. (mek) Part No. 4398500...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2006442 Mounting Stud, LITERATURE PARTS 1113227 Fastener (3) Grill LIT2006136 Use & Care Guide 2006342 Gap, Cover 2005237 Wire, Clip LIT2006652 Energy Label Assembly (Bottom) 1112849 Cap, Grommet LIT2005930 Service &...
  • Page 3 CABINET TRIM PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2004553 Cabinet, Trim (2) 2003857 Screw 1163283 Screw 2004537 Cabinet, Trim (Bottom) 489464 Screw 2003646 Cabinet, Trim Top 487944 Washer (2) 2005925 Seal−Trim, Side 4398500...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4)

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 1112641 Control Panel 2003302 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005565 Shield, Control Panel 2005043 Socket, Light...
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 2002004 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005562 Shield, Control Panel 2005042 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006524 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper 2000742 Meat Pan, Connector...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003143 Solid Shelf 2003134 Front, Ice Compartment 1113565 Shelf, Fixed (1) 1113637 Shelf, Deep (2) 2208194 Basket 2003113 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 4398500...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003723 Decortive Panel 2003599 Trim, Grille 2003714 Top Grille Assembly Assembly Right Side 2005534 Guard, Compressor 2005549 Cover, Unit 2003605 Trim, Grille Wiring Left Side 486194 Screw...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1112530 Retainer, Shelf 1112541 Gasket Retainer, 2003871 Refrigerator Ladder (2) Top & Bottom Door Panel 1112514 Back Up Plate (8) 2005532 Door Gasket, (Includes 486194 Screw Insulation)

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 18 FREEZER DOOR PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2202547B Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top & Bottom 2005530 Door Gasket, Magnetic 486194 Screw (34)

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 20 DISPENSER AND FRONT PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviceable) 2195051 Strain Relief 2180209 Spring, Torsion 2196195 Pin 2180208 Ice Door Mechanism 2180205 Door, Ice 489000 Screw 2180261 Lever, Ice Dispenser 2202551 Switch Assembly (Also Order Item #49) 489000 Screw...
  • Page 21 UPPER UNIT PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 22 UPPER UNIT PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 487522 Screw Base 851095 Wire Tie (2) Following Parts Not Illustrated 2163787 Clip, Compressor 2202581 Drier and Optional Parts Not Included Mounting (4) 2208903 Motor, Fan 2183419 Compressor...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve, Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002995 Tube, Discharge...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS42QHX00 (Stainless Steel) 4398500...
  • Page 28 ICEMAKER PARTS For Model: KSSS42QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 489276 Screw 628228 Mold & Heater 628379 Clip, Fuse (Also Order 2171593 Shut Off Arm 2208933 Water Inlet 542638 Silicone 2171952 Bracket Tube Assembly Grease) 489478 Screw...
