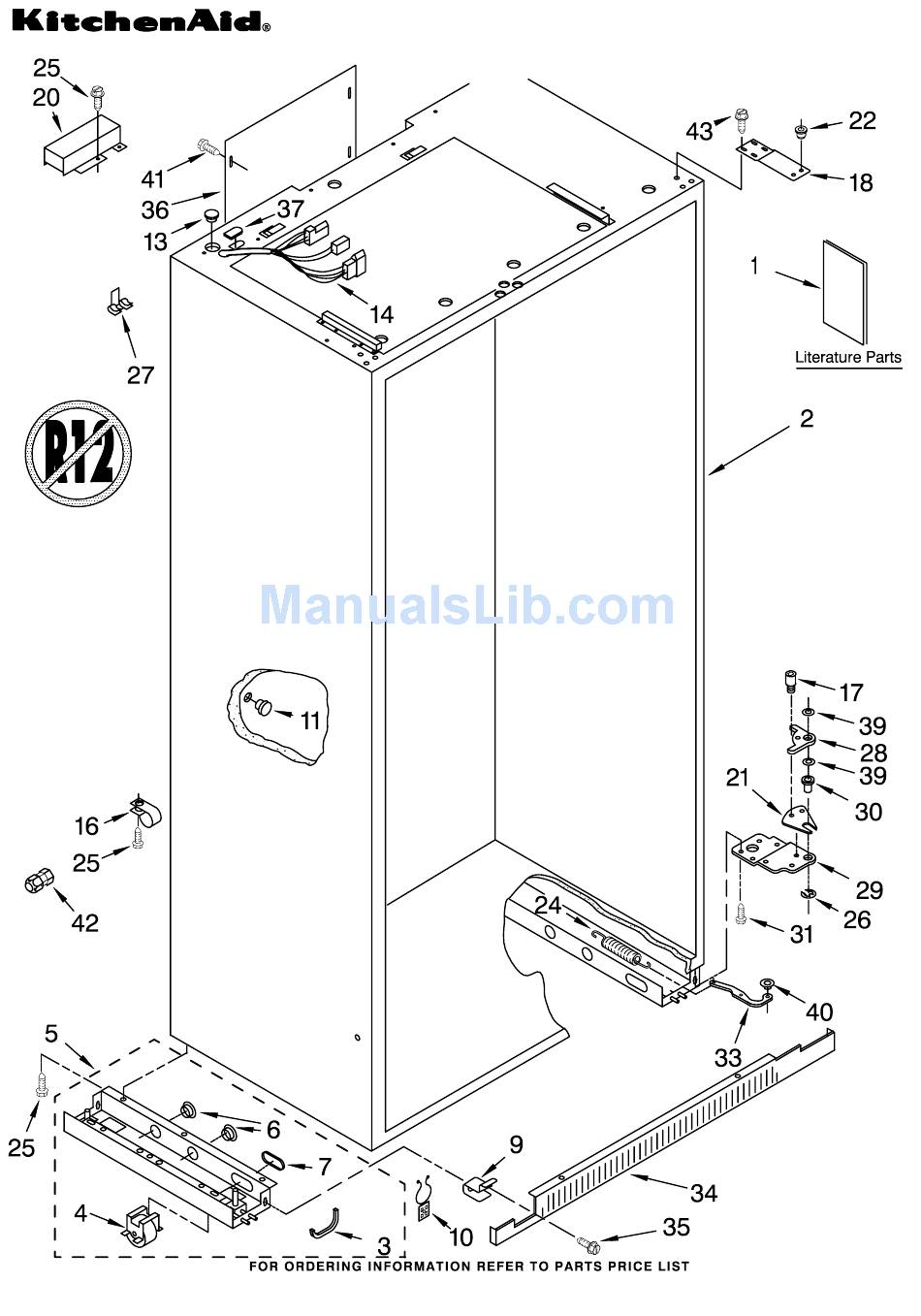

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 10−99 Litho In U.S.A. (mek) Part No. 4398480...
- Page 2 CABINET PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION LITERATURE PARTS 2006442 Mounting Stud, 2006342 Gap, Cover LIT2006136 Use & Care Guide Grill Assembly (Bottom) LIT2006652 Energy Label 2005237 Clip, Wire Hinge (Bottom) LIT2005930 Service &...
- Page 3 CABINET TRIM PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet, Trim (2) 2004668 White 2005820 Black 2005730 Biscuit 2003857 Screw 1163283 Screw 2004537 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top 487944 Washer (2) 2005925 Seal−Trim, Side 489464 Screw 4398480...
- Page 4 FREEZER LINER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3)
- Page 5 REFRIGERATOR LINER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480...
- Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 1112641 Control Panel 2003302 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005565 Shield, Control Panel...
- Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005562 Shield, Control Panel...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006524 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9)
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003143 Solid Shelf 2003134 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2003113 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 4398480... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005534 Guard, Compressor Trim, Grille Top Grille Wiring Right Side Assembly Trim, Grille 2003602 White 2003717 White Bottom 2005821 Black 2005902 Black...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003871 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top &...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 18 FREEZER DOOR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2202547W White 2202547B Black 2202547T Biscuit 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Lever, Water Grille, Overflow (Not Serviceable) Dispenser 2180323 White 2195051 Strain Relief 2180268 White 2180325 Black 2180209 Spring, Torsion 2180270 Black 2186860 Biscuit 2196195 Pin...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480...
- Page 22 UPPER UNIT PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 2208903 Motor, Fan Following Parts Not Illustrated Base 2190685 Blade, Fan and Optional Parts Not Included 2163787 Clip, Compressor 2003169 Orifice, Fan Mounting (4) 489099 Screw (3)
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve...
- Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480...
- Page 26 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring...
-
Page 27: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) 4398480... - Page 28 ICEMAKER PARTS For Models: KSSS42QHW00, KSSS42QHB00, KSSS42QHT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 628228 Mold & Heater 489276 Screw 628379 Clip, Fuse (Also Order 2171593 Shut Off Arm 2208933 Water Inlet 542638 Silicone 2171952 Bracket Tube Assembly...
