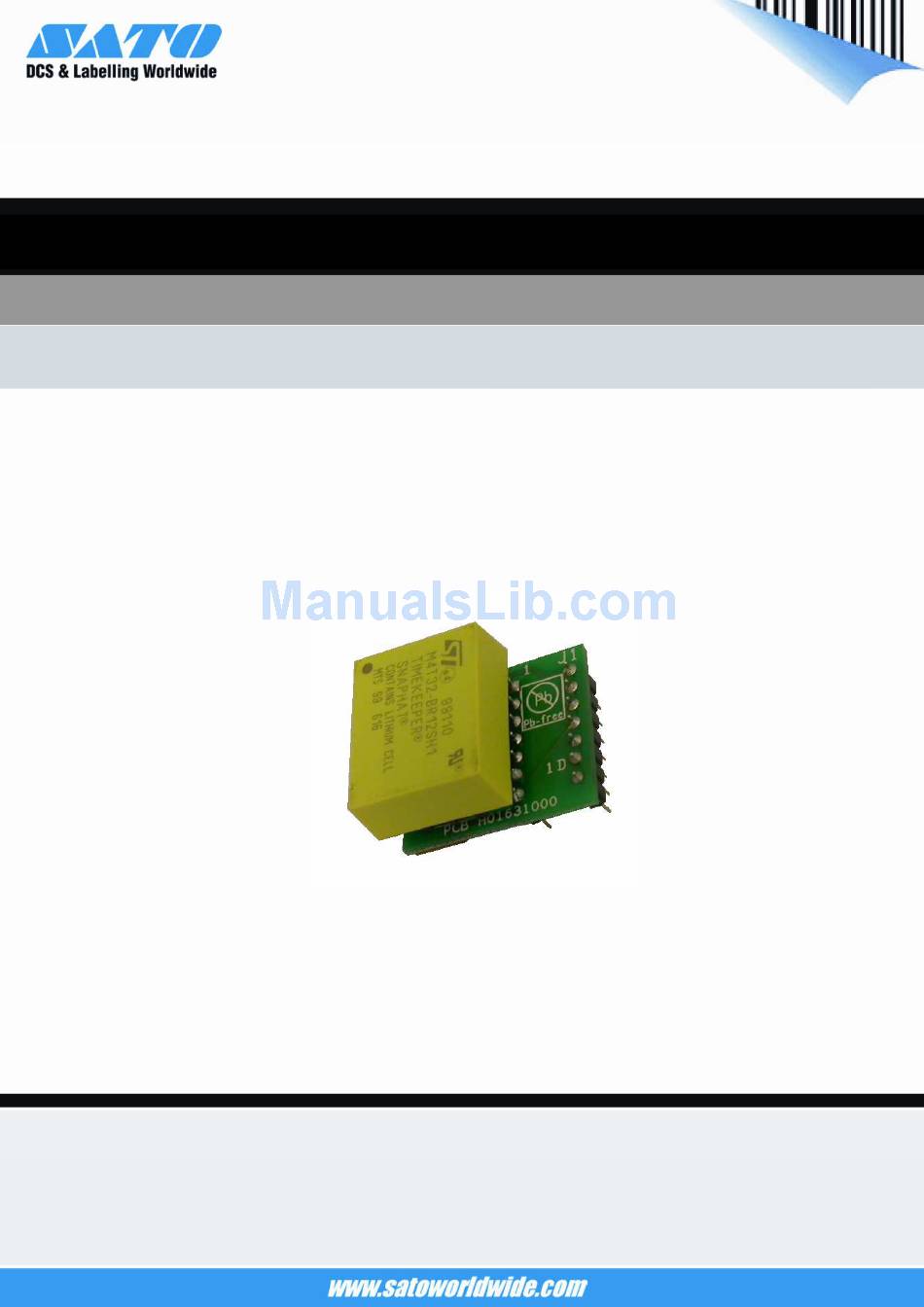

- Page 1 REAL-TIME-CLOCK INSTALLATION GUIDE For printer models: 4xxe Series Read this Installation Guide before and during the installation of the above accessory. Keep this Installation Guide handy for future reference.
-
Page 2: Important Information
Real-Time Clock Installation Guide General 1.1 Important information This quick guide provides important information on how to set up your new SATO product. Be sure to read this quick guide thoroughly before using this printer. It is an integral part of the product and should be kept in the immediate vicinity of the device and available to the operating staff. -
Page 3: Explanation Of Symbols
Real-Time Clock Installation Guide 1.3 Explanation of symbols This instruction manual uses various warning icons to help you understand the safe operation of your printer. Explanations of the icons are below. WARNING! Indicates neglectful or erroneous use may cause irreparable damage to the product, serious injury to the operator, or worse. - Page 4 Real-Time Clock Installation Guide 1.4 Contact and Document Information SATO GROUP OF COMPANIES International Headquarters Americas Americas Europe Asia Pacific & Oceania Extensive contact information of worldwide SATO operations can be found on the Internet at www.satoworldwide.com Version: SI-GL4xxe-01rA-06-06-07-RTCIG © Copyright 1994 – 2007 All rights reserved.
- Page 5 Real-Time Clock Installation Guide GL4xxe Real-Time Clock Installation Before installing the Real-Time Clock chip, make sure the printer is OFF and disconnected from the power supply. Make sure you have discharged any static electricity (by touching a grounded component on the printer). Remove all interface cards prior to removing the rear side cover.
- Page 6 Real-Time Clock Installation Guide GL4xxe Real-Time-clock Installation Insert the chip labelled (3) into the socket, making sure that Pin 1 of the chip is aligned to Pin 1 of the socket. Mount it into place firmly. Reinstall the Left-Side cover and reconnect the interface card, power and signal cables.
- Page 7 Real-Time Clock Installation Guide Clock configuration via the LCD Menu OFFLINE 1. Turn the printer ON and wait for it to initialize and go into ONLINE mode. 2. Press the Line Button to go to Offline mode 3. Press the Function Button to display the different menu icons ADVANCED MODE 4.
- Page 8 Real-Time Clock Installation Guide...
