Adding 2 drives to the c1107 series jukebox - c1158-90001

Hide thumbs Also See for Surestore 1200ex - Optical Jukebox:

8. Insert the drive interface, power, and SCSI cables into the drive enclosure.

a. Insert the SCSI cable through the enclosure opening from the inside to the outside of the enclo-

sure, so that the taller, folded end is inside the drive enclosure, just behind the interface cable.

b. Insert the (double) drive interface cable (with clips attached).

c. Insert the power cable behind the other two cables. The two separate power plugs go inside the

chassis.

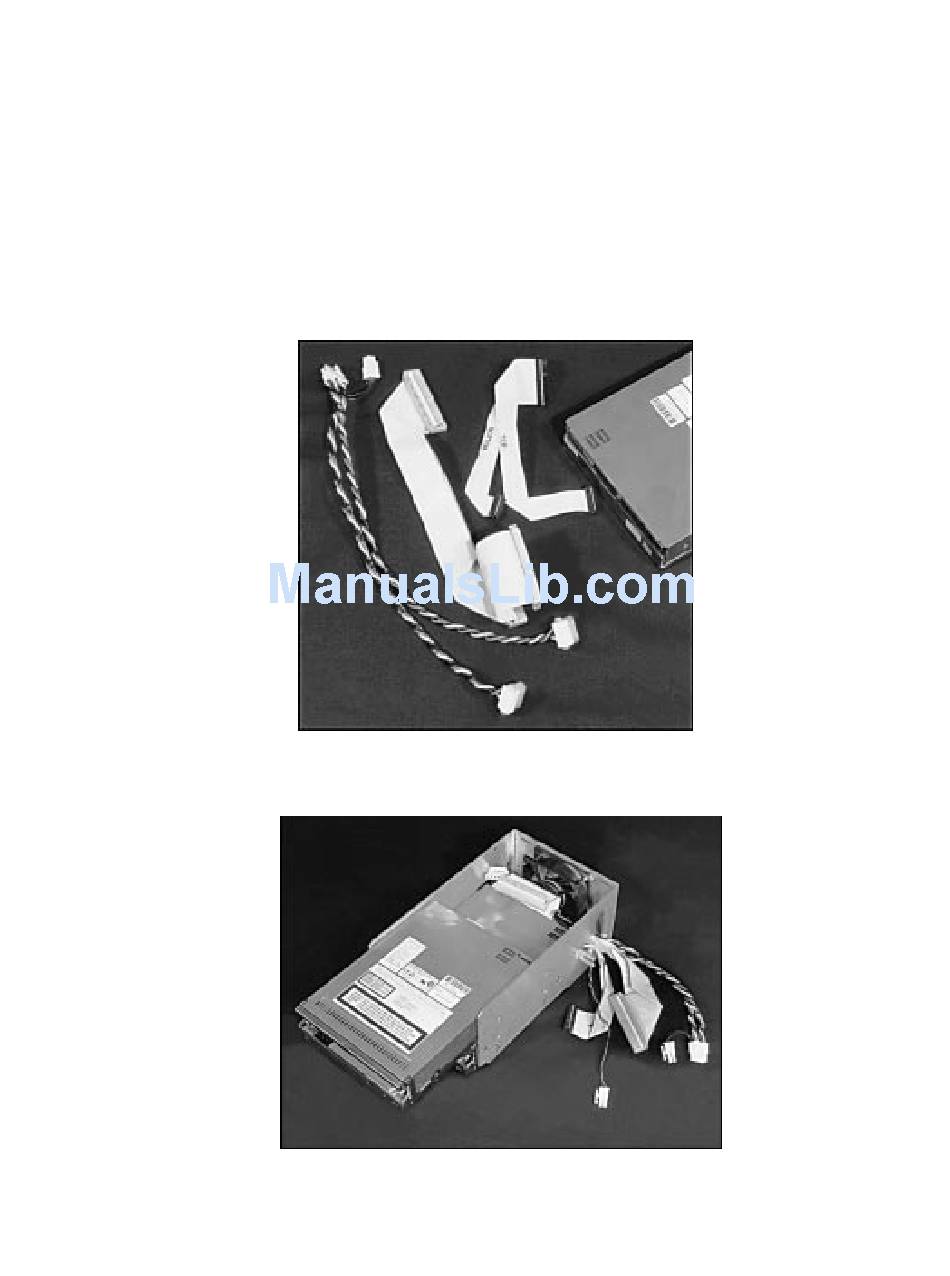

Figure 7: Cables and one drive

Figure 8: Mounting drives in the enclosure
