Adding 2 drives to the c1107 series jukebox - c1158-90001

Hide thumbs Also See for Surestore 1200ex - Optical Jukebox:

6. Check the DIP switches on the top of the drives. Make sure they are set to OFF, which is in the

forward position (toward the front of the drive.) Refer to Figure 5 for DIP switch location and

orientation on the top of the drives.

7. Install drives in the drive enclosure.

a. Mount the drive interface cable clips on the cable as shown in Figure 6.

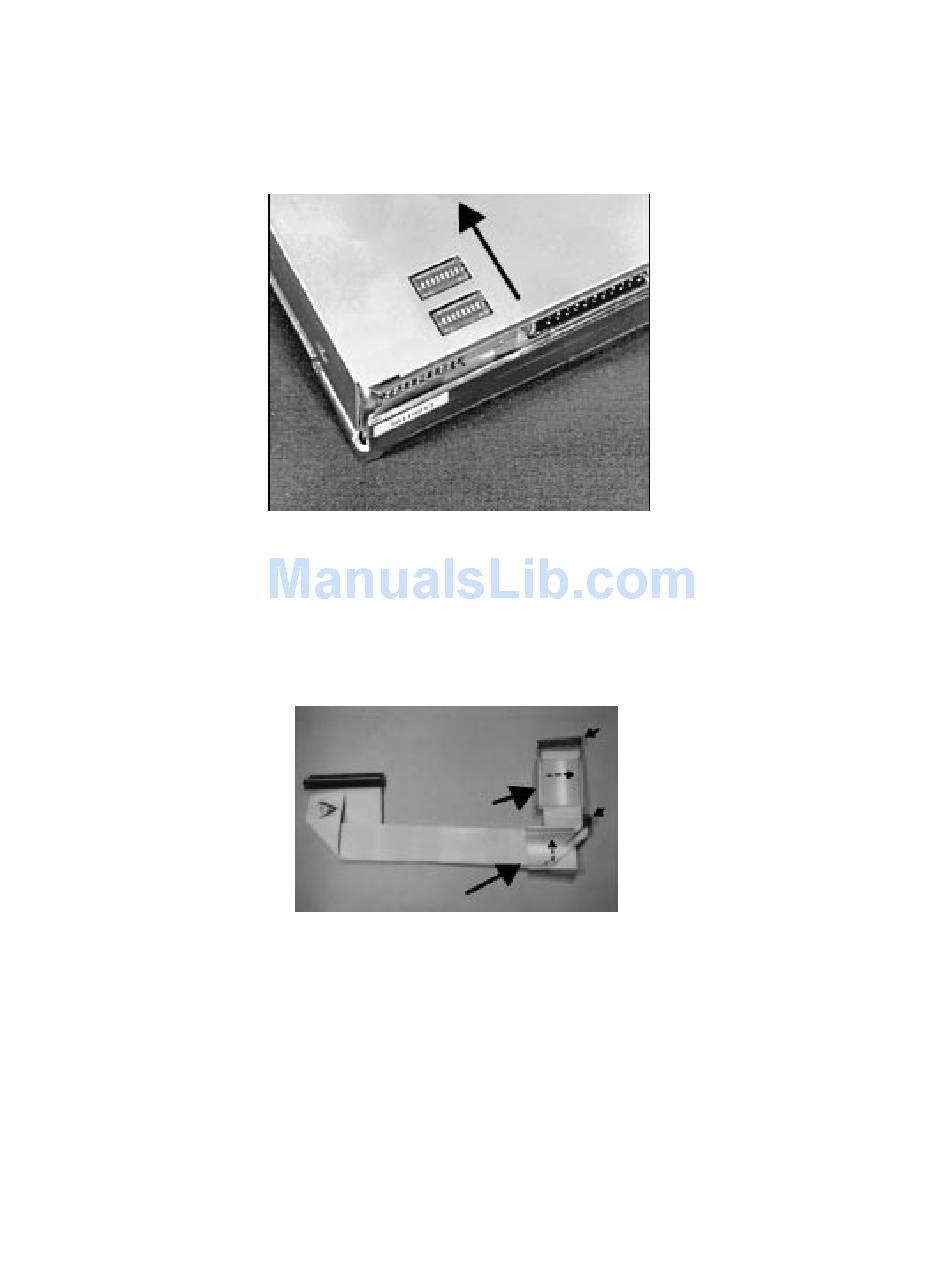

Figure 6: Attaching cable clips to the (double) drive interface cable

Figure 5: Orientation of the drive DIP switches
