Adding 2 drives to the c1107 series jukebox - c1158-90001
Hide thumbs Also See for Surestore 1200ex - Optical Jukebox:

Advertisement

1. Remove the 3 right-side panels.
The side panels have 2 T-20 screws on the bottom edge. Start from the bottom panel first.
2. Remove the two RFI panels .
There are 6 T-20 screws around the edge of each panel.
8

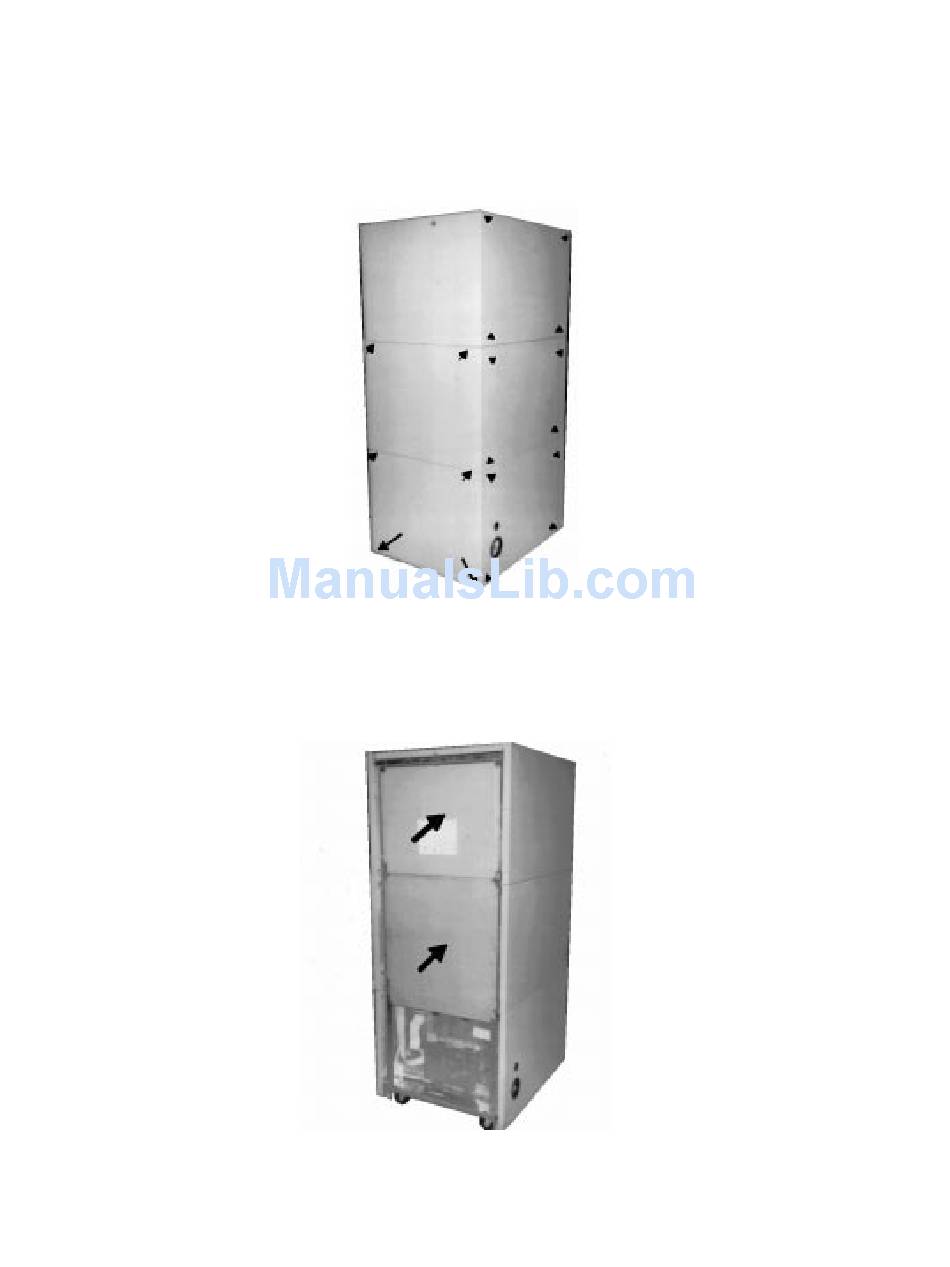

Figure 2: Screws on side and rear panels
Figure 3: Lower and upper RFI panels
