7800 L1
Configure the inband management interfaces.
portcfg mgmtif ge0 create 192.168.3.10 255.255.255.0
7800 R1
Configure the inband management interfaces.
portcfg mgmtif ge0 create 192.168.3.20 255.255.255.0
Management station
Access the Brocade 7800 switches through the external inband management station.
telnet 192.168.3.10

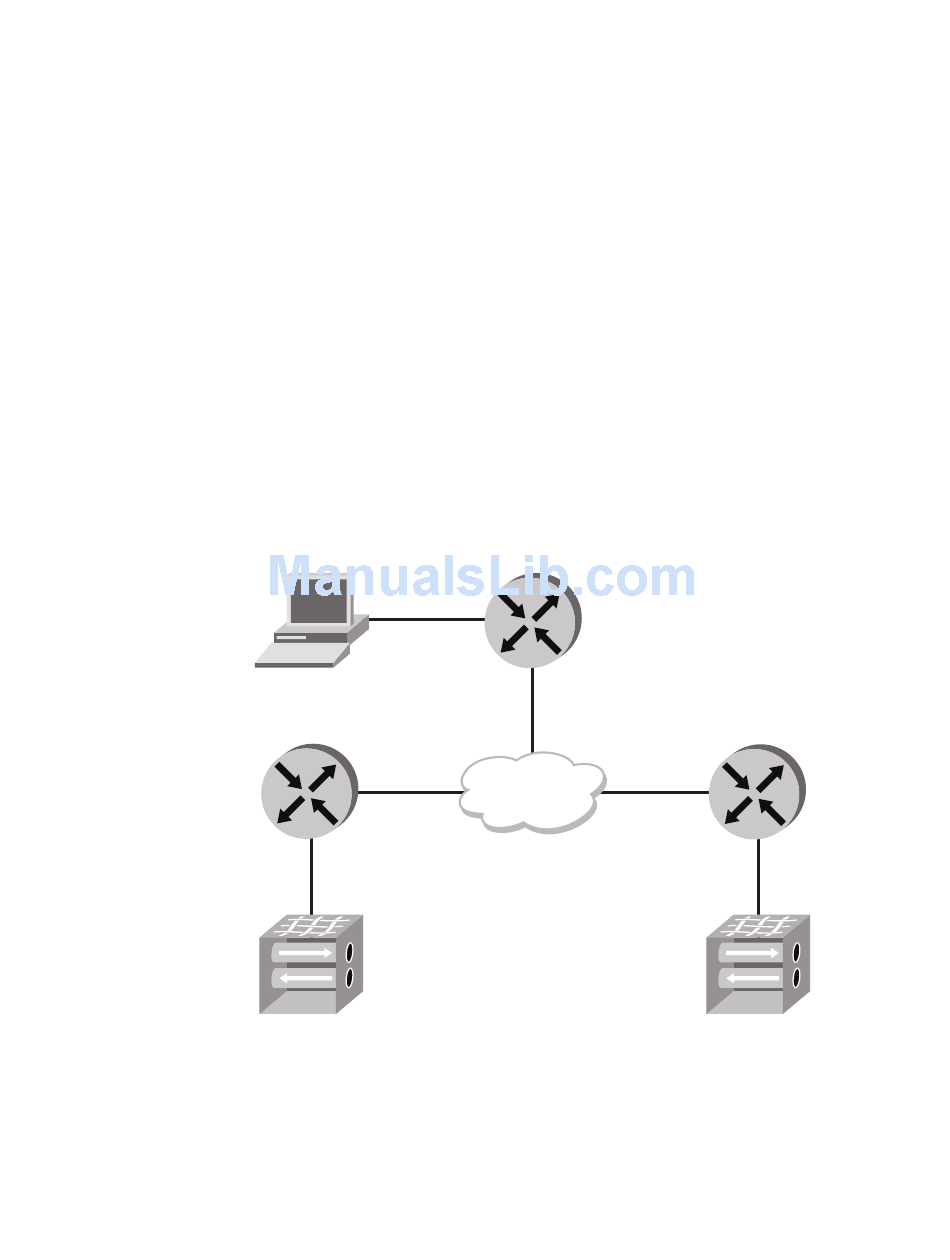

Management station on a different subnet example
The example configuration in
different networks and attached through a WAN cloud. The routers are assumed to already have
route entries to access each other subnet.
192.168.1.250
FIGURE 15
Fabric OS FCIP Administrator's Guide
53-1002748-01
Figure 15
Management
Workstation
192.168.3.250
192.168.3.30
Router A
172.0.1.1
192.168.1.10
7800 L1
10.1.1.10
Management station configured on different subnets
consists of the switches and the management station on
Router C
172.0.1.3
172.0.1.0
Subnet
172.0.1.2
192.168.2.20
Inband management
Router B
192.168.2.250
7800 R1
10.1.2.20
3
61
