Physical Components

48
Your HP SureStore E Disk Array XP48 is a high-performance disk array
system. It is used to store large quantities of data in an efficient and secure
manner.

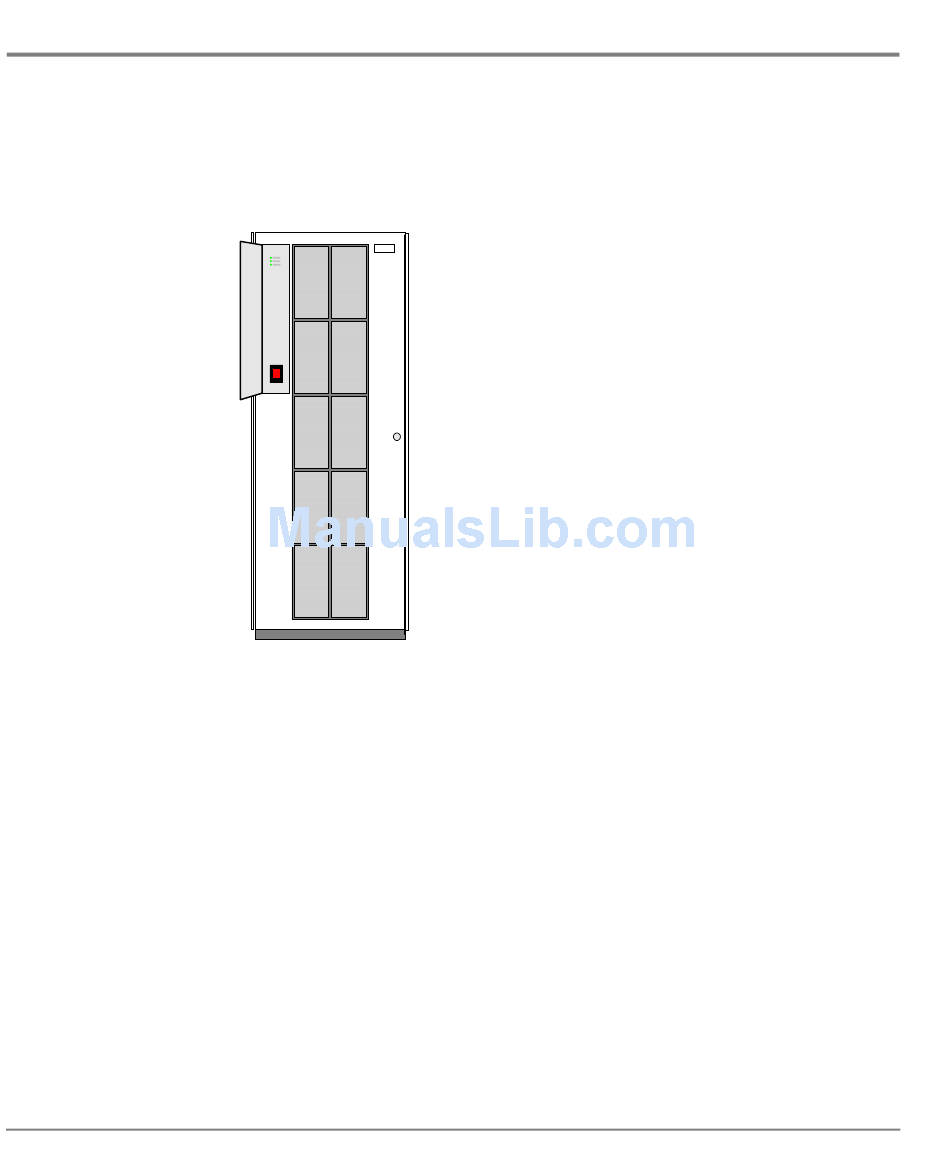

Figure 7. HP SureStore E Disk Array XP48
Your disk array has the following major hardware components:
• disk array cabinet
The single disk array frame cabinet contains the control panel,
connection hardware, the service processor, control boards, and hard
disk drives.
• one service processor (SVP)
The SVP is a built-in PC inside the disk array cabinet. The SVP gives
your HP Service Representative a method to access the software
system on the disk array.
