Remote Console PC (optional)

The HP SureStore E Disk Array XP512 Hardware
Disk Array Disk Array
Frame 6 Frame 4

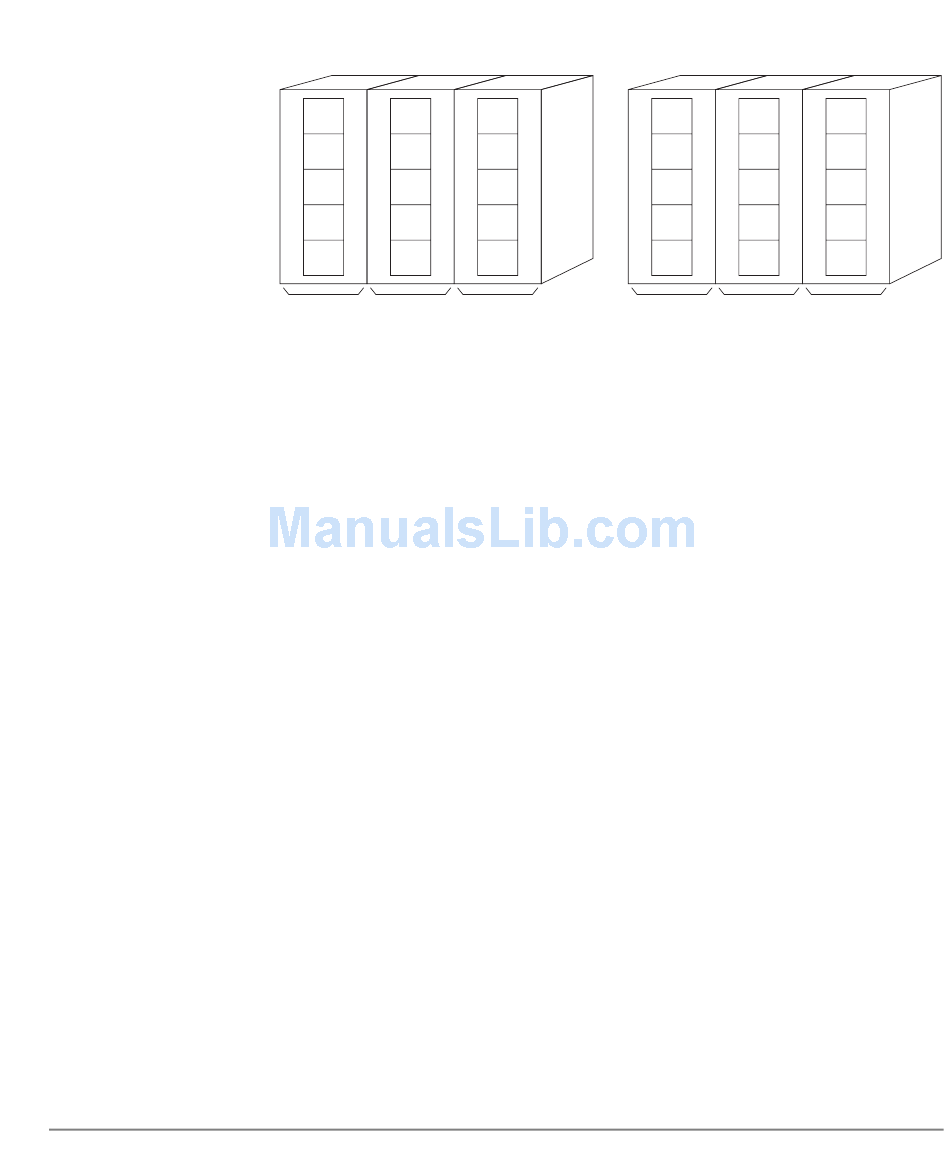

Figure 3. Disk Array Frames
The remote console PC is for user access to the system software. Your
remote console PC runs a main remote control application and other
standard and optional software to manage and monitor the disk array.
Your remote console PC can be connected to up to eight disk arrays, using a
special LAN connection. See figure 4 (page 28).
Disk Array Disk Array
Frame 3
Disk Array Disk Array
Frame 1 Frame 2 Frame 5
