Auto Plan Window - HP StorageWorks P9000 - Disk Arrays User Manual

Item
Capacity
RAID
Protection
PG
HDD
CLPR
Target LDEV
LDEV
PG
HDD
CLPR
Owner

Auto Plan window

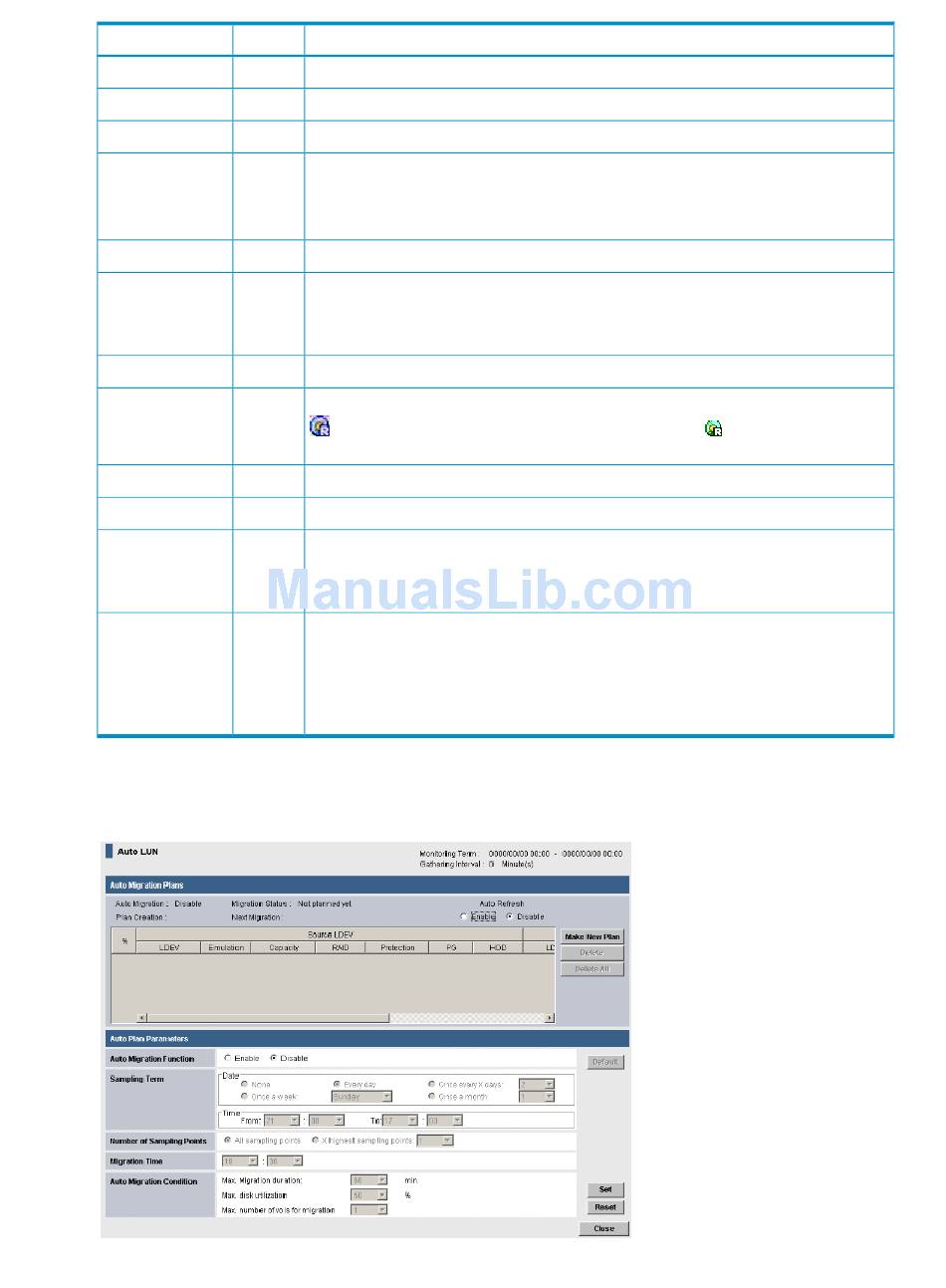

Figure 13 Auto Plan Window
52 Auto LUN GUI reference
Type Description
field Indicates the capacity of the volume.
field Indicates the RAID type of the source volume.
field Indicates the data protection level of the source volume.
field Indicates the parity group ID or the external volume group ID of the source volume. The
number before the hyphen (-) is the frame number. The number after the hyphen is the
group number. If the indicated parity groups are the interleaved parity groups, this item
only displays the ID of the parity group at the top of the interleaved parity groups.
field Indicates the type of hard disk drive containing the source volume.
field Indicates the number and name of the CLPR corresponding to the source volume's parity
group. The following convention is used:
CLPR-number:CLPR-name
field Display information about target volumes.
field Indicates the volume ID of the target volume in this format: LDKC:CU:LDEV. The blue
icon indicates a reserved volume of Auto LUN. The green
volume of other programs.
field Indicates the parity group ID or the external volume group ID of the target volume.
field Indicates the type of hard disk drive containing the target volume.
field Indicates the number and name of the CLPR corresponding to the target volume's parity
group. The following convention is used:
CLPR-number:CLPR-name
field Indicates the program which uses this volume as a target volume. If P9500 is displayed,
this is the target volume which is reserved by Remote Web Console. If Other[XX]is
displayed, this is the target volume which is reserved by RAID Manager or another
program. XX is an id which is given by this program. For example, 01 indicates RAID
Manager, and 99 indicates Tiered Storage Manager. You cannot delete such a migration
plan with the Delete.
icon indicates a reserved
